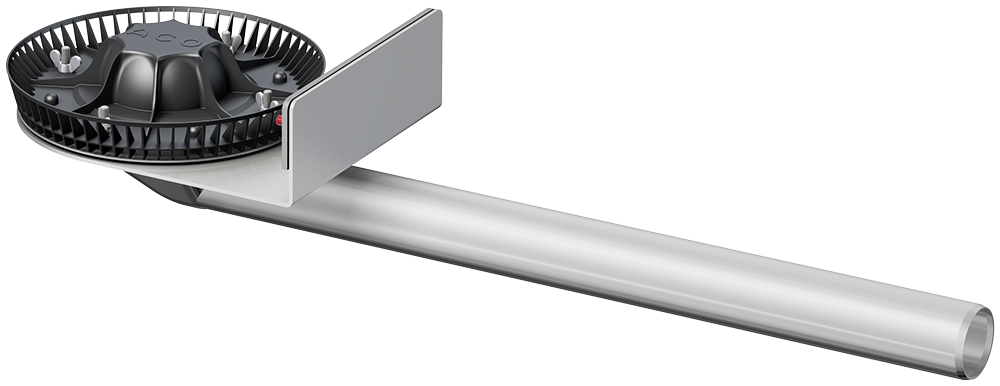

Attica drains Jet (45°/90°) – vacuum drainage

	Nominal width	Socket inclination	Insulation	Item number		Downloads	Remember
	DN 50	1,5°	Uninsulated	1156.30.00	13
	DN 70	1,5°	Uninsulated	1176.30.00	13

	Nominal width	Socket inclination	Insulation	Item number		Downloads	Remember
	DN 50	1,5°	Uninsulated	1156.40.00	13
	DN 70	1,5°	Uninsulated	1176.40.00	13

	Nominal width	Socket inclination	Flange	Insulation	Item number
	DN 50	1,5°	45 ° upstand for Bitumen sealing membrane	Uninsulated	1156.30.00
	DN 70	1,5°	45 ° upstand for Bitumen sealing membrane	Uninsulated	1176.30.00
	DN 50	1,5°	90° upstand for plastic sealing membrane	Uninsulated	1156.40.00
	DN 70	1,5°	90° upstand for plastic sealing membrane	Uninsulated	1176.40.00

Flat roof heating

Suitable for

Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100

Description

Mains connection: 220 – 240 V
Degree of protection: IP 67
Connection line
- H05RN-F2x1,0
- Length: 1 m
Height: 95 mm
Nominal power: 25 W
Weight: 0.3 kg
Rabattgruppe: 1

Item no.
7000.85.10

Flat roof heating with thermostat

Suitable for

Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100

Description

Mains connection: 220 – 240 V
Degree of protection: IP 67
Connection line
- H05RN-F2x1,0
- Length: 1 m
Height: 95 mm
Nominal power: 25 W
Weight: 0.3 kg
Rabattgruppe: 1

Item no.
7000.85.20

Gravel trap cover

Suitable for

Spin Series stainless steel flat roof gullies
Attika Spin/Jet roof gullies
- 45° and 90°

Description

Stainless steel, material grade 304
Height: 75 mm
Weight: 1 kg
Rabattgruppe: 13

Item no.
0174.46.63

Gravel trap cover

Suitable for

Spin Series stainless steel flat roof gullies
Attika Spin/Jet roof gullies
- 45° and 90°

Description

Stainless steel, material grade 304
Height: 225 mm
Weight: 1.6 kg
Rabattgruppe: 13

Item no.
0174.46.64

Gravel trap

Suitable for

Flat roof gully Spin made of stainless steel
Parapet wall gully Spin made of stainless steel
- 45° and 90°

Description

Plastic
Weight: 0.1 kg
Rabattgruppe: 13

Item no.
0174.87.36

0174.93.82: Funktionsteil

Suitable for

Parapet wall gully Jet made of stainless steel
- 45° and 90°
- DN 50 – DN 70

Description

Rabattgruppe: 13

Item no.
0174.93.82

Damming ring for emergency overflow

Suitable for

Parapet wall gully Spin made of stainless steel
- 45° and 90°

Description

Weight: 0.7 kg
Rabattgruppe: 13

Item no.
0174.95.12

Damming ring for emergency overflow

Suitable for

Parapet wall gully Jet made of stainless steel
- 45° and 90°
- DN 50 – DN 70

Description

Material grade 304
Height: 55 mm
Weight: 1.2 kg
Rabattgruppe: 13

Item no.
0174.93.64

Insulating body

Suitable for

Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°

Description

Rabattgruppe: 13

Item no.
0174.93.83

Attika duct

Suitable for

Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- DN 50

Description

Material grade 304
With factory-made clamped bitumen connection sleeve
Weight: 3 kg
Rabattgruppe: 13

Item no.
0174.93.68

Attika duct

Suitable for

Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- DN 70

Description

Material grade 304
With factory-made clamped bitumen connection sleeve
Weight: 3 kg
Rabattgruppe: 13

Item no.
0174.93.69

Attika duct

Suitable for

Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- DN 100

Description

Material grade 304
With factory-made clamped bitumen connection sleeve
Weight: 3 kg
Rabattgruppe: 13

Item no.
0174.93.67

Flange seal

Suitable for

Jet/Spin series stainless steel flat roof gullies
Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
Multiflex flat roof ducts
- DN 70/DN 100

Description

Thickness: 4 mm
EPDM
Weight: 0.2 kg
Rabattgruppe: 13

Item no.
0174.42.87

Flange seal

Suitable for

Jet/Spin series stainless steel flat roof gullies
Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
Multiflex flat roof ducts
- DN 70/DN 100

Description

Thickness: 4 mm
PVC-weich
Weight: 0.3 kg
Rabattgruppe: 13

Item no.
0174.42.92

Flange seal

Suitable for

Jet/Spin series stainless steel flat roof gullies
Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
Multiflex flat roof ducts
- DN 70/DN 100

Description

Thickness: 4 mm
NBR/SBR
Weight: 0.3 kg
Rabattgruppe: 13

Item no.
0174.42.97

Flange seal

Suitable for

Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°

Description

EPDM
Weight: 0.1 kg
Rabattgruppe: 13

Item no.
0174.93.78

Flange seal

Suitable for

Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°

Description

PVC-weich
Weight: 0.1 kg
Rabattgruppe: 13

Item no.
0174.93.79

Flange seal

Suitable for

Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°

Description

NBR/SBR
Weight: 0.1 kg
Rabattgruppe: 13

Item no.
0174.93.80

0174.97.37: Attikadurchführung DN 50

Description

DN 50
Rabattgruppe: 13

Item no.
0174.97.37

0174.97.38: Attikadurchführung DN 70

Description

Rabattgruppe: 13

Item no.
0174.97.38

0174.97.39: Attikadurchführung DN 100

Description

DN 100
Rabattgruppe: 13

Item no.
0174.97.39
