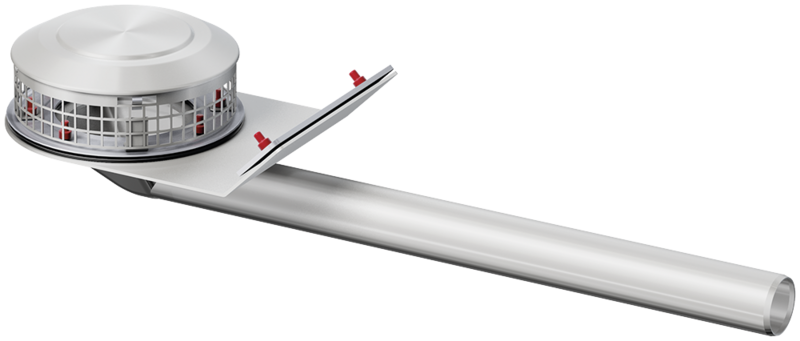

Spin (45°/90°) attic drains – gravity drainage
Self-regulating heating
Suitable for
- ACO flat roof gully Variant-Flex
- DN50 - DN125
Description
- For ice-free flat roof gullies
- Variant-Flex DN50 - DN125
- Self-regulating heating element
- Can be mounted variably on the connection port
- Nominal power: 26 W/m
- Connection line length: 1 m
- Rabattgruppe: 13
Gravel trap cover
Suitable for
- Spin Series stainless steel flat roof gullies
- Attika Spin/Jet roof gullies
- 45° and 90°
Description
- Stainless steel, material grade 304
- Height: 75 mm
- Weight: 1 kg
- Rabattgruppe: 13
Gravel trap cover
Suitable for
- Spin Series stainless steel flat roof gullies
- Attika Spin/Jet roof gullies
- 45° and 90°
Description
- Stainless steel, material grade 304
- Height: 225 mm
- Weight: 1.6 kg
- Rabattgruppe: 13
Gravel trap
Suitable for
- Flat roof gully Spin made of stainless steel
- Parapet wall gully Spin made of stainless steel
- 45° and 90°
Description
- Plastic
- Weight: 0.1 kg
- Rabattgruppe: 13
0174.93.82: Funktionsteil
Suitable for
- Parapet wall gully Jet made of stainless steel
- 45° and 90°
- DN 50 – DN 70
Description
- Rabattgruppe: 13
Damming ring for emergency overflow
Suitable for
- Parapet wall gully Spin made of stainless steel
- 45° and 90°
Description
- Weight: 0.7 kg
- Rabattgruppe: 13
Damming ring for emergency overflow
Suitable for
- Parapet wall gully Jet made of stainless steel
- 45° and 90°
- DN 50 – DN 70
Description
- Material grade 304
- Height: 55 mm
- Weight: 1.2 kg
- Rabattgruppe: 13
Insulating body
Suitable for
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
Description
- Rabattgruppe: 13
Attika duct
Suitable for
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- DN 50
Description
- Material grade 304
- With factory-made clamped bitumen connection sleeve
- Weight: 3 kg
- Rabattgruppe: 13
Attika duct
Suitable for
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- DN 70
Description
- Material grade 304
- With factory-made clamped bitumen connection sleeve
- Weight: 3 kg
- Rabattgruppe: 13
Attika duct
Suitable for
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- DN 100
Description
- Material grade 304
- With factory-made clamped bitumen connection sleeve
- Weight: 3 kg
- Rabattgruppe: 13
Flange seal
Suitable for
- Jet/Spin series stainless steel flat roof gullies
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Multiflex flat roof ducts
- DN 70/DN 100
Description
- Thickness: 4 mm
- EPDM
- Weight: 0.2 kg
- Rabattgruppe: 13
Flange seal
Suitable for
- Jet/Spin series stainless steel flat roof gullies
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Multiflex flat roof ducts
- DN 70/DN 100
Description
- Thickness: 4 mm
- PVC-weich
- Weight: 0.3 kg
- Rabattgruppe: 13
Flange seal
Suitable for
- Jet/Spin series stainless steel flat roof gullies
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Multiflex flat roof ducts
- DN 70/DN 100
Description
- Thickness: 4 mm
- NBR/SBR
- Weight: 0.3 kg
- Rabattgruppe: 13
Flange seal
Suitable for
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
Description
- EPDM
- Weight: 0.1 kg
- Rabattgruppe: 13
Flange seal
Suitable for
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
Description
- PVC-weich
- Weight: 0.1 kg
- Rabattgruppe: 13
Flange seal
Suitable for
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
Description
- NBR/SBR
- Weight: 0.1 kg
- Rabattgruppe: 13
Water collection box (DN70) for connection to parapet drain
Suitable for
- Parapet drain
- DN70
Description
- Rabattgruppe: 13
Water collection box (DN100) for connection to parapet drain
Suitable for
- Parapet drain
- DN100
Description
- Rabattgruppe: 13
0174.97.37: Attikadurchführung DN 50
Description
- DN 50
- Rabattgruppe: 13
0174.97.38: Attikadurchführung DN 70
Description
- Rabattgruppe: 13
0174.97.39: Attikadurchführung DN 100
Description
- DN 100
- Rabattgruppe: 13
