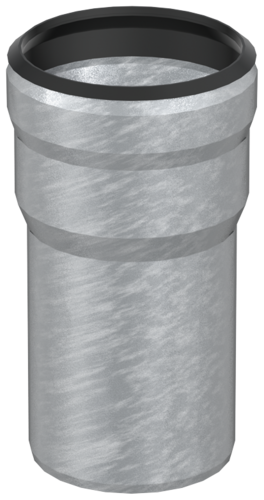

Connectors von Pipe/plastic with spigot to GM-X with socket 1 A


Product benefits

  • Material: Galvanised steel
    • Building material class: A1
    • Non-combustible
    • No introduction of additional fire load

Product information

  • Not inflammable, building material class A1
  • Made from galvanised steel
  • With additional internal coating
  • According to DIN EN 1123
  • With a 1 A socket

Infobox

Note: Please order sealing items separately.

Note: Nominal widths DN 125/DN 150 fit directly.

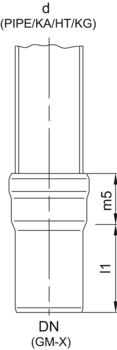

Nominal widthDimensionsWeightItem

number
Remember
Nominal width at GM-XNominal size of pipe/KA/HT/KGl1m5
[mm][mm][kg]
DN 5050 mm52380.2E60610050
DN 7075 mm95500.5E60420070
DN 100110 mm110571.0E60430100
DN 125125 mm130631.3E60430125
DN 150160 mm150701.6Z378929
DN 200200 mm180801.9Z378930
Nominal widthDimensionsWeightItem

number
Nominal width at GM-XNominal size of pipe/KA/HT/KGl1m5
DN 5050 mm52 mm38 mm0.2 kgE60610050
DN 7075 mm95 mm50 mm0.5 kgE60420070
DN 100110 mm110 mm57 mm1.0 kgE60430100
DN 125125 mm130 mm63 mm1.3 kgE60430125
DN 150160 mm150 mm70 mm1.6 kgZ378929
DN 200200 mm180 mm80 mm1.9 kgZ378930
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipes0174.14.670174.14.680174.14.690174.14.700174.14.710174.14.730174.14.740174.14.75
For the transition to pipe 32 mm0174.14.830174.14.84
For the transition to pipe 38 mm and plastic siphon 40 mm0174.14.850174.14.86
For the transition to pipe 48 mm and plastic siphon 50 mm0174.14.87
For the transition of the KA sleeve DN 100 to GM-X pipe DN 1000174.14.80
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 800174.14.82
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm0174.14.72
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm0174.14.81
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipesE80010040 E80010050E80010070 E80010080E80010100 E80010125E80010150 E80010200
For the transition to pipe 32 mmE80100040 E80100050
For the transition to pipe 38 mm and plastic siphon 40 mmE80110040 E80110050
For the transition to pipe 48 mm and plastic siphon 50 mm E80130050
For the transition of the KA sleeve DN 100 to GM-X pipe DN 100 E80040100
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80E80060080
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm E80010110
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mmE80055125

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 32
Description
  • Prevents axial shifting.
  • Weight: 0.2 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 40
Description
  • Prevents axial shifting.
  • Weight: 0.2 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 50
Description
  • Prevents axial shifting.
  • Weight: 0.6 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 70
Description
  • Prevents axial shifting.
  • Weight: 0.5 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 80
Description
  • Prevents axial shifting.
  • Weight: 0.6 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 100
Description
  • Prevents axial shifting.
  • Weight: 1 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 125
Description
  • Prevents axial shifting.
  • Weight: 1.3 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 32
Description
  • With release catch for connector pipe/branch
  • Weight: 0.2 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 40
Description
  • With release catch for connector pipe/branch
  • Weight: 0.2 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 50
Description
  • With release catch for connector pipe/branch
  • Weight: 0.3 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 70
Description
  • With release catch for connector pipe/branch
  • Weight: 0.4 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 80
Description
  • With release catch for connector pipe/branch
  • Weight: 0.5 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 100
Description
  • With release catch for connector pipe/branch
  • Weight: 0.9 kg

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 125
Description
  • With release catch for connector pipe/branch
  • Weight: 1.2 kg

Safety bar

Suitable for
  • GM-X drainpipes

DN 150

Description
  • Weight: 1.8 kg

Safety bar

Suitable for
  • GM-X drainpipes

DN 200

Description
  • Weight: 2.5 kg

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 40
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 50
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 70
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 80
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 100
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 125
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.3 kg

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 150
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.4 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 40

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 50

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 70

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 80

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.2 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 100

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 125

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.2 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 150

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.3 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 200

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.4 kg

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 40
  • D = 100 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 50
  • D = 130 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 70
  • D = 150 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 80
  • D = 150 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 100
  • D = 180 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 125
  • D = 220 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 150
  • D = 225 mm

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 40

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.1 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 50

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.1 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 70

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 80

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 100

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 125

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.7 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 150

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.5 kg

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 200

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.7 kg

GM-X lubricant

Suitable for
  • GM-X drainpipes
  • GM-X compound piping
Description
  • In can
  • Contents: 1,000 g
  • To be used as per laying instructions 0154.49.79
  • Weight: 1.1 kg
