Gm-X angle bends – push socket 1 A

Product benefits

  • Material: Galvanised steel
    • Building material class: A1
    • Non-combustible
    • No introduction of additional fire load

Product information

  • Non-flammable, material class A1
  • According to EN 1123
  • Made of galvanised steel
  • With additional internal coating

Infobox

Note:

Please order sealing items separately

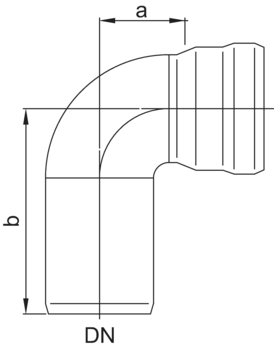

Nominal widthDimensionsWeightItem

number
Remember
DNab
[mm][mm][kg]
DN 4035800.22E300100408
DN 50451000.35E300100508
DN 70601200.71E300100708
DN 80701301.12E300100808
DN 100911611.63E300101008
Nominal widthDimensionsWeightItem

number
DN1ab
DN 4035 mm80 mm0.22 kgE30010040
DN 5045 mm100 mm0.35 kgE30010050
DN 7060 mm120 mm0.71 kgE30010070
DN 8070 mm130 mm1.12 kgE30010080
DN 10091 mm161 mm1.63 kgE30010100
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipes0174.14.670174.14.680174.14.690174.14.700174.14.710174.14.730174.14.740174.14.75
For the transition to pipe 32 mm0174.14.830174.14.84
For the transition to pipe 38 mm and plastic siphon 40 mm0174.14.850174.14.86
For the transition to pipe 48 mm and plastic siphon 50 mm0174.14.87
For the transition of the KA sleeve DN 100 to GM-X pipe DN 1000174.14.80
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 800174.14.82
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm0174.14.72
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm0174.14.81
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipesE80010040 E80010050E80010070 E80010080E80010100 E80010125E80010150 E80010200
For the transition to pipe 32 mmE80100040 E80100050
For the transition to pipe 38 mm and plastic siphon 40 mmE80110040 E80110050
For the transition to pipe 48 mm and plastic siphon 50 mm E80130050
For the transition of the KA sleeve DN 100 to GM-X pipe DN 100 E80040100
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80E80060080
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm E80010110
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mmE80055125

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 32
Description
  • Prevents axial shifting.
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 40
Description
  • Prevents axial shifting.
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 50
Description
  • Prevents axial shifting.
  • Weight: 0.6 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 70
Description
  • Prevents axial shifting.
  • Weight: 0.5 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 80
Description
  • Prevents axial shifting.
  • Weight: 0.6 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 100
Description
  • Prevents axial shifting.
  • Weight: 1 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 125
Description
  • Prevents axial shifting.
  • Weight: 1.3 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 32
Description
  • With release catch for connector pipe/branch
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 40
Description
  • With release catch for connector pipe/branch
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 50
Description
  • With release catch for connector pipe/branch
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 70
Description
  • With release catch for connector pipe/branch
  • Weight: 0.4 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 80
Description
  • With release catch for connector pipe/branch
  • Weight: 0.5 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 100
Description
  • With release catch for connector pipe/branch
  • Weight: 0.9 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 125
Description
  • With release catch for connector pipe/branch
  • Weight: 1.2 kg
  • Rabattgruppe: 8

Safety bar

Suitable for
  • GM-X drainpipes

DN 150

Description
  • Weight: 1.8 kg
  • Rabattgruppe: 8

Safety bar

Suitable for
  • GM-X drainpipes

DN 200

Description
  • Weight: 2.5 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 40
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 50
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 70
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 80
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 100
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 125
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 150
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.4 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 40

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 50

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 70

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 80

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 100

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 125

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 150

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 200

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.4 kg
  • Rabattgruppe: 8

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 40
  • D = 100 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 50
  • D = 130 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 70
  • D = 150 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 80
  • D = 150 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 100
  • D = 180 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 125
  • D = 220 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 150
  • D = 225 mm

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 40

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 50

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 70

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 80

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 100

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 125

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.7 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 150

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.5 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 200

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.7 kg
  • Rabattgruppe: 8

GM-X lubricant

Suitable for
  • GM-X drainpipes
  • GM-X compound piping
Description
  • In can
  • Contents: 1,000 g
  • To be used as per laying instructions 0154.49.79
  • Weight: 1.1 kg
  • Rabattgruppe: 8
