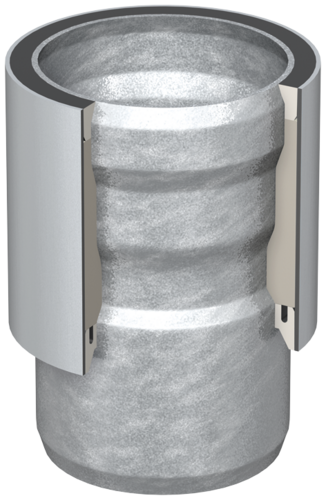

GM-X compound pipe connectors to plastic pipe

Gm-x Compound Pipe Connectors To Plastic Pipe 648089

Infobox

Note: Please order sealing items separately.

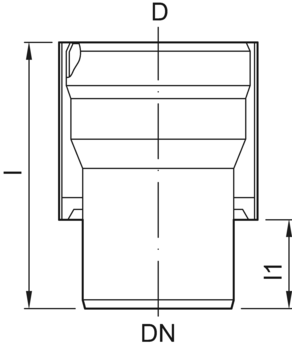

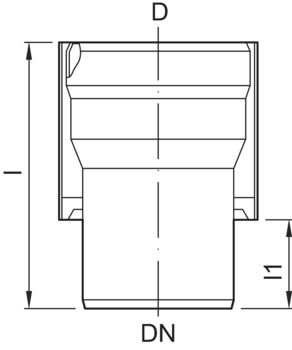

	Nominal width		Description	Dimensions			Weight	Item number		Downloads	Remember
	DN1	DN2		l	l1	d	Weight
				[mm]	[mm]	[mm]	[kg]
	DN 100	110 mm	KA socket	180	60	110	1.1	606250100	8
	DN 100	125 mm	KA socket	210	75	125	2.7	606312100	8
	DN 125	125 mm	KA socket	205	80	125	3.1	606312125	8

	Nominal width		Dimensions			Weight	Item number
	DN1	DN2	l	l1	d	Weight	Item number
	DN 100	110 mm	180 mm	60 mm	110 mm	1.1 kg	606250100
	DN 100	125 mm	210 mm	75 mm	125 mm	2.7 kg	606312100
	DN 125	125 mm	205 mm	80 mm	125 mm	3.1 kg	606312125

	Article No.	Article No.	Article No.	Article No.	Article No.	Article No.	Article No.	Article No.
	DN 40	DN 50	DN 70	DN 80	DN 100	DN 125	DN 150	DN 200
For GM-X pipes	0174.14.67	0174.14.68	0174.14.69	0174.14.70	0174.14.71	0174.14.73	0174.14.74	0174.14.75
For the transition to pipe 32 mm	0174.14.83	0174.14.84
For the transition to pipe 38 mm and plastic siphon 40 mm	0174.14.85	0174.14.86
For the transition to pipe 48 mm and plastic siphon 50 mm		0174.14.87
For the transition of the KA sleeve DN 100 to GM-X pipe DN 100					0174.14.80
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80				0174.14.82
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm					0174.14.72
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm						0174.14.81

	Article No.	Article No.	Article No.	Article No.	Article No.	Article No.	Article No.	Article No.
	DN 40	DN 50	DN 70	DN 80	DN 100	DN 125	DN 150	DN 200
For GM-X pipes	E80010040	E80010050	E80010070	E80010080	E80010100	E80010125	E80010150	E80010200
For the transition to pipe 32 mm	E80100040	E80100050
For the transition to pipe 38 mm and plastic siphon 40 mm	E80110040	E80110050
For the transition to pipe 48 mm and plastic siphon 50 mm		E80130050
For the transition of the KA sleeve DN 100 to GM-X pipe DN 100					E80040100
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80				E80060080
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm					E80010110
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm						E80055125

Coupling socket dimensions

Nominal width	d₁	d₂	m₁	m₁₂	s₁	s₂
DN	mm	mm	mm	mm	mm	mm
40	42	89	30	25	1,5	1,8
50	53	89	38	30	1,5	1,8
70	73	102	55	45	1,6	2,0
80	89	134	60	50	1,8	2,0
100	102	134	70	60	2,0	2,0
125	133	164	75	65	2,5	2,0
150	159	204	80	70	2,5	2,0
200	219	273	120	110	3,2	2,0

Pipe clamp

Suitable for

GM-X drainpipe
GM-X Filling and ventilation lines for heating oil tanks
DN 40

Description

Striker pin length: 120 mm
No soundproofing insert
Weight: 0.1 kg
Rabattgruppe: 8

Item no.
580300040

Pipe clamp

Suitable for

GM-X drainpipe
GM-X Filling and ventilation lines for heating oil tanks
DN 50

Description

Striker pin length: 120 mm
No soundproofing insert
Weight: 0.1 kg
Rabattgruppe: 8

Item no.
0174.45.61

Pipe clamp

Suitable for

GM-X drainpipe
GM-X Filling and ventilation lines for heating oil tanks
DN 70

Description

Striker pin length: 120 mm
No soundproofing insert
Weight: 0.2 kg
Rabattgruppe: 8

Item no.
580300070

Pipe clamp

Suitable for

GM-X drainpipe
GM-X Filling and ventilation lines for heating oil tanks
DN 80

Description

Striker pin length: 120 mm
No soundproofing insert
Weight: 0.2 kg
Rabattgruppe: 8

Item no.
580300080

Pipe clamp

Suitable for

GM-X drainpipe
GM-X Filling and ventilation lines for heating oil tanks
DN 100

Description

Striker pin length: 120 mm
No soundproofing insert
Weight: 0.2 kg
Rabattgruppe: 8

Item no.
580300100

Pipe clamp

Suitable for

GM-X drainpipe
GM-X Filling and ventilation lines for heating oil tanks
DN 125

Description

Striker pin length: 120 mm
No soundproofing insert
Weight: 0.3 kg
Rabattgruppe: 8

Item no.
580300125

Pipe clamp

Suitable for

GM-X drainpipe
GM-X Filling and ventilation lines for heating oil tanks
DN 150

Description

Striker pin length: 120 mm
No soundproofing insert
Weight: 0.4 kg
Rabattgruppe: 8

Item no.
580300150

Pipe clamp

Description

Weight: 0.2 kg
Rabattgruppe: 8

Item no.
0174.45.14

Pipe clamp

Description

Weight: 0.3 kg
Rabattgruppe: 8

Item no.
0174.45.15

Pipe clamp

Description

Weight: 0.3 kg
Rabattgruppe: 8

Item no.
0174.45.16

Pipe clamp

Description

Weight: 0.3 kg
Rabattgruppe: 8

Item no.
0174.45.17

Pipe clamp

Description

Weight: 0.4 kg
Rabattgruppe: 8

Item no.
0174.45.18

Pipe clamp

Description

Weight: 0.5 kg
Rabattgruppe: 8

Item no.
0174.45.19

Pipe clamp

Description

Weight: 0.8 kg
Rabattgruppe: 8

Item no.
0174.45.20

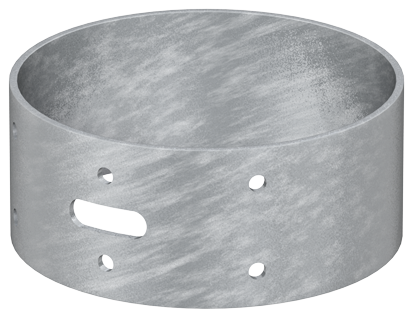

Fire protection moulding

Suitable for

Gm-X drainpipe and compound piping

Description

Fire resistance class: R 30 – R 90 for pipe separation
Length: 250 mm
DN 40
D = 100 mm

Item no.
0174.77.17

Fire protection moulding

Suitable for

Gm-X drainpipe and compound piping

Description

Fire resistance class: R 30 – R 90 for pipe separation
Length: 250 mm
DN 50
D = 130 mm

Item no.
0174.77.18

Fire protection moulding

Suitable for

Gm-X drainpipe and compound piping

Description

Fire resistance class: R 30 – R 90 for pipe separation
Length: 250 mm
DN 70
D = 150 mm

Item no.
0174.77.19

Fire protection moulding

Suitable for

Gm-X drainpipe and compound piping

Description

Fire resistance class: R 30 – R 90 for pipe separation
Length: 250 mm
DN 80
D = 150 mm

Item no.
0174.77.20

Fire protection moulding

Suitable for

Gm-X drainpipe and compound piping

Description

Fire resistance class: R 30 – R 90 for pipe separation
Length: 250 mm
DN 100
D = 180 mm

Item no.
0174.77.21

Fire protection moulding

Suitable for

Gm-X drainpipe and compound piping

Description

Fire resistance class: R 30 – R 90 for pipe separation
Length: 250 mm
DN 125
D = 220 mm

Item no.
0174.77.22

Fire protection moulding

Suitable for

Gm-X drainpipe and compound piping

Description

Fire resistance class: R 30 – R 90 for pipe separation
Length: 250 mm
DN 150
D = 225 mm

Item no.
0174.77.23

GM-X lubricant

Suitable for

GM-X drainpipes
GM-X compound piping

Description

In can
Contents: 1,000 g
To be used as per laying instructions 0154.49.79
Weight: 1.1 kg
Rabattgruppe: 8

Item no.
E80350001
