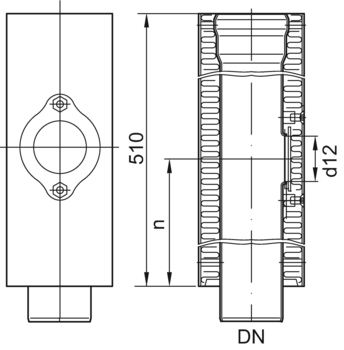

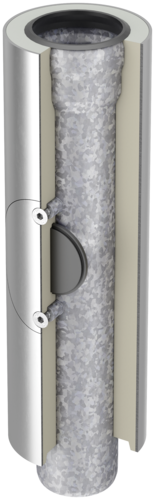

With sunken circular cleaning opening
Product information
- Conforms to DIN EN 1123
- Galvanised steel
- With additional internal coating
- Insulating layer (CFC-free PU rigid foam)
- External pipe galvanised steel
Infobox
Note: Please order sealing items separately.
Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | |
DN 40 | DN 50 | DN 70 | DN 80 | DN 100 | DN 125 | DN 150 | DN 200 | |
For GM-X pipes | 0174.14.67 | 0174.14.68 | 0174.14.69 | 0174.14.70 | 0174.14.71 | 0174.14.73 | 0174.14.74 | 0174.14.75 |
For the transition to pipe 32 mm | 0174.14.83 | 0174.14.84 | ||||||
For the transition to pipe 38 mm and plastic siphon 40 mm | 0174.14.85 | 0174.14.86 | ||||||
For the transition to pipe 48 mm and plastic siphon 50 mm | 0174.14.87 | |||||||
For the transition of the KA sleeve DN 100 to GM-X pipe DN 100 | 0174.14.80 | |||||||
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80 | 0174.14.82 | |||||||
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm | 0174.14.72 | |||||||
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm | 0174.14.81 |
Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | |
DN 40 | DN 50 | DN 70 | DN 80 | DN 100 | DN 125 | DN 150 | DN 200 | |
For GM-X pipes | E80010040 | E80010050 | E80010070 | E80010080 | E80010100 | E80010125 | E80010150 | E80010200 |
For the transition to pipe 32 mm | E80100040 | E80100050 | ||||||
For the transition to pipe 38 mm and plastic siphon 40 mm | E80110040 | E80110050 | ||||||
For the transition to pipe 48 mm and plastic siphon 50 mm | E80130050 | |||||||
For the transition of the KA sleeve DN 100 to GM-X pipe DN 100 | E80040100 | |||||||
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80 | E80060080 | |||||||
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm | E80010110 | |||||||
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm | E80055125 |
Coupling socket dimensions
Nominal width | d1 | d2 | m1 | m12 | s1 | s2 |
DN | mm | mm | mm | mm | mm | mm |
40 | 42 | 89 | 30 | 25 | 1,5 | 1,8 |
50 | 53 | 89 | 38 | 30 | 1,5 | 1,8 |
70 | 73 | 102 | 55 | 45 | 1,6 | 2,0 |
80 | 89 | 134 | 60 | 50 | 1,8 | 2,0 |
100 | 102 | 134 | 70 | 60 | 2,0 | 2,0 |
125 | 133 | 164 | 75 | 65 | 2,5 | 2,0 |
150 | 159 | 204 | 80 | 70 | 2,5 | 2,0 |
200 | 219 | 273 | 120 | 110 | 3,2 | 2,0 |
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 40
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.1 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 50
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.1 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 70
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.2 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 80
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.2 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 100
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.2 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 125
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.3 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 150
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.4 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.2 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.3 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.3 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.3 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.4 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.5 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.8 kg
- Rabattgruppe: 8
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 40
- D = 100 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 50
- D = 130 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 70
- D = 150 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 80
- D = 150 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 100
- D = 180 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 125
- D = 220 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 150
- D = 225 mm
GM-X lubricant
Suitable for
- GM-X drainpipes
- GM-X compound piping
Description
- In can
- Contents: 1,000 g
- To be used as per laying instructions 0154.49.79
- Weight: 1.1 kg
- Rabattgruppe: 8
