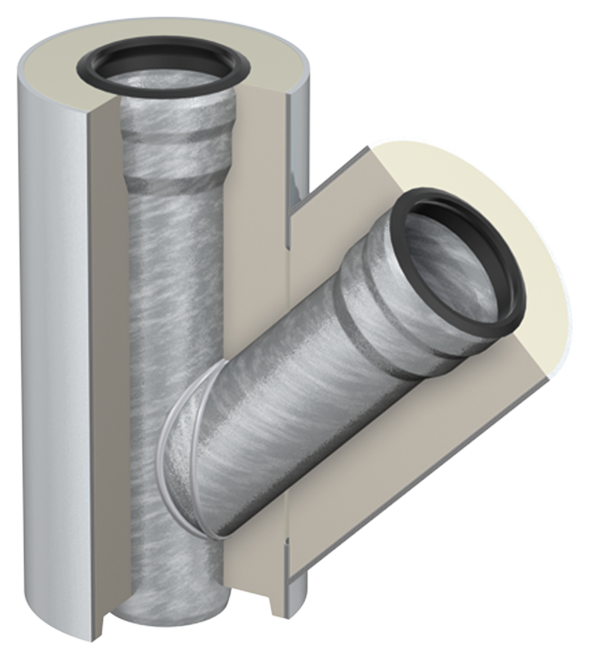

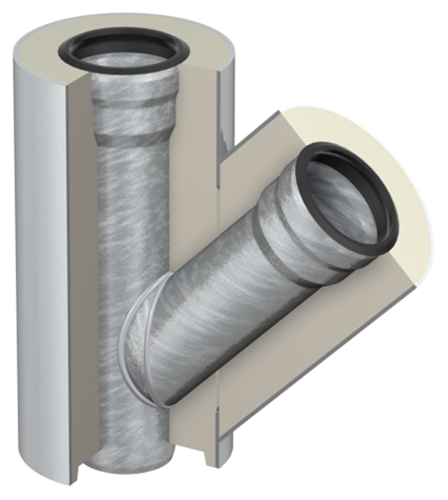

Product information

  • Conforms to DIN EN 1123
  • Galvanised steel
  • With additional internal coating
  • Insulating layer (CFC-free PU rigid foam)
  • External pipe galvanised steel

Infobox

Note: Please order sealing items separately.

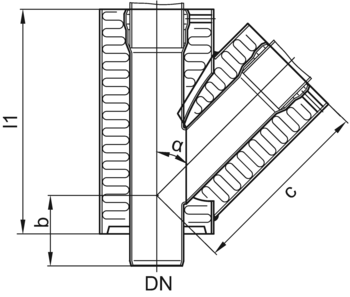

Nominal widthDimensionsWeightItem

number
Remember
DN1l1bc
[mm][mm][mm][kg]
ImageDN 32175551451.16020450338
DN 40175551451.36020450448
DN 50158651281.56020450558
DN 70210851703.06020450778
DN 80245961984.46020450888
DN 1002751102256.16020451008
DN 1253501302859.56020451258
DN 15039014032013.06020451508
DN 20051019044028.46020452008
ImageDN 701851101202.36020870778
DN 1002401401604.96020871008
DN 15033019021510.26020871508
Nominal widthDimensionsWeightItem

number
DN1l1bc
ImageDN 32175 mm55 mm145 mm1.1 kg602045033
ImageDN 40175 mm55 mm145 mm1.3 kg602045044
ImageDN 50158 mm65 mm128 mm1.5 kg602045055
ImageDN 70210 mm85 mm170 mm3.0 kg602045077
ImageDN 80245 mm96 mm198 mm4.4 kg602045088
ImageDN 100275 mm110 mm225 mm6.1 kg602045100
ImageDN 125350 mm130 mm285 mm9.5 kg602045125
ImageDN 150390 mm140 mm320 mm13.0 kg602045150
ImageDN 200510 mm190 mm440 mm28.4 kg602045200
ImageDN 70185 mm110 mm120 mm2.3 kg602087077
ImageDN 100240 mm140 mm160 mm4.9 kg602087100
ImageDN 150330 mm190 mm215 mm10.2 kg602087150
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipes0174.14.670174.14.680174.14.690174.14.700174.14.710174.14.730174.14.740174.14.75
For the transition to pipe 32 mm0174.14.830174.14.84
For the transition to pipe 38 mm and plastic siphon 40 mm0174.14.850174.14.86
For the transition to pipe 48 mm and plastic siphon 50 mm0174.14.87
For the transition of the KA sleeve DN 100 to GM-X pipe DN 1000174.14.80
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 800174.14.82
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm0174.14.72
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm0174.14.81
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipesE80010040 E80010050E80010070 E80010080E80010100 E80010125E80010150 E80010200
For the transition to pipe 32 mmE80100040 E80100050
For the transition to pipe 38 mm and plastic siphon 40 mmE80110040 E80110050
For the transition to pipe 48 mm and plastic siphon 50 mm E80130050
For the transition of the KA sleeve DN 100 to GM-X pipe DN 100 E80040100
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80E80060080
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm E80010110
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mmE80055125

Coupling socket dimensions

Nominal widthd1d2m1m12s1s2
DNmmmmmmmmmmmm
40428930251,51,8
50538938301,51,8
707310255451,62,0
808913460501,82,0
10010213470602,02,0
12513316475652,52,0
15015920480702,52,0
2002192731201103,22,0

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 40
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 50
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 70
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 80
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 100
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 125
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 150
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.4 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.4 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.5 kg
  • Rabattgruppe: 8

Pipe clamp

Description
  • Weight: 0.8 kg
  • Rabattgruppe: 8

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 40
  • D = 100 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 50
  • D = 130 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 70
  • D = 150 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 80
  • D = 150 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 100
  • D = 180 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 125
  • D = 220 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 150
  • D = 225 mm

GM-X lubricant

Suitable for
  • GM-X drainpipes
  • GM-X compound piping
Description
  • In can
  • Contents: 1,000 g
  • To be used as per laying instructions 0154.49.79
  • Weight: 1.1 kg
  • Rabattgruppe: 8
