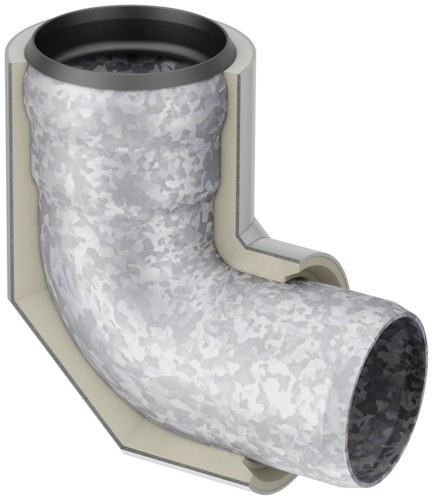

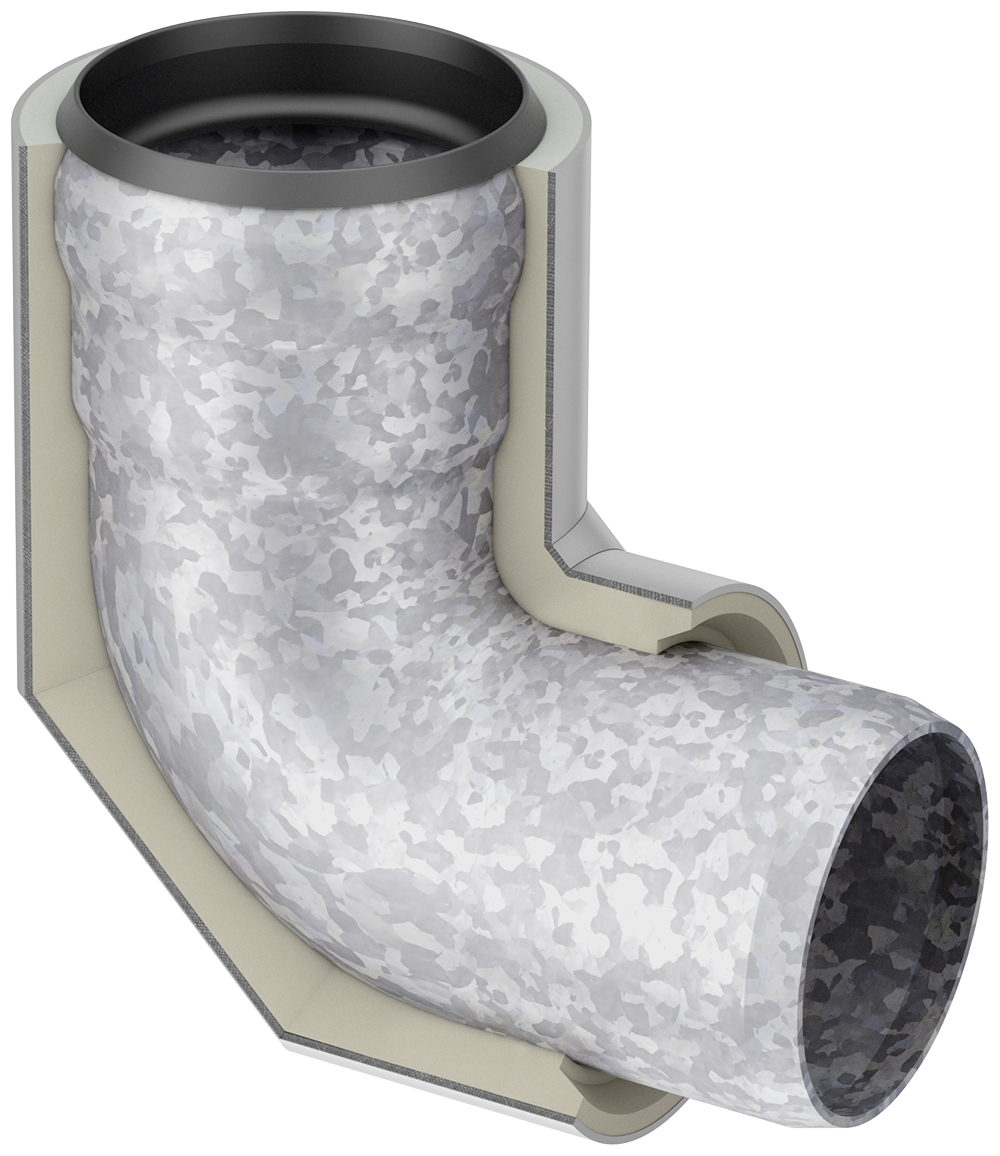

Bends
Product information
- Conforms to DIN EN 1123
- Galvanised steel
- With additional internal coating
- Insulating layer (CFC-free PU rigid foam)
- External pipe galvanised steel
Infobox
Note: Please order sealing items separately.
| Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | |
| DN 40 | DN 50 | DN 70 | DN 80 | DN 100 | DN 125 | DN 150 | DN 200 | |
| For GM-X pipes | 0174.14.67 | 0174.14.68 | 0174.14.69 | 0174.14.70 | 0174.14.71 | 0174.14.73 | 0174.14.74 | 0174.14.75 |
| For the transition to pipe 32 mm | 0174.14.83 | 0174.14.84 | ||||||
| For the transition to pipe 38 mm and plastic siphon 40 mm | 0174.14.85 | 0174.14.86 | ||||||
| For the transition to pipe 48 mm and plastic siphon 50 mm | 0174.14.87 | |||||||
| For the transition of the KA sleeve DN 100 to GM-X pipe DN 100 | 0174.14.80 | |||||||
| For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80 | 0174.14.82 | |||||||
| For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm | 0174.14.72 | |||||||
| For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm | 0174.14.81 |
| Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | Article No. | |
| DN 40 | DN 50 | DN 70 | DN 80 | DN 100 | DN 125 | DN 150 | DN 200 | |
| For GM-X pipes | E80010040 | E80010050 | E80010070 | E80010080 | E80010100 | E80010125 | E80010150 | E80010200 |
| For the transition to pipe 32 mm | E80100040 | E80100050 | ||||||
| For the transition to pipe 38 mm and plastic siphon 40 mm | E80110040 | E80110050 | ||||||
| For the transition to pipe 48 mm and plastic siphon 50 mm | E80130050 | |||||||
| For the transition of the KA sleeve DN 100 to GM-X pipe DN 100 | E80040100 | |||||||
| For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80 | E80060080 | |||||||
| For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm | E80010110 | |||||||
| For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm | E80055125 |

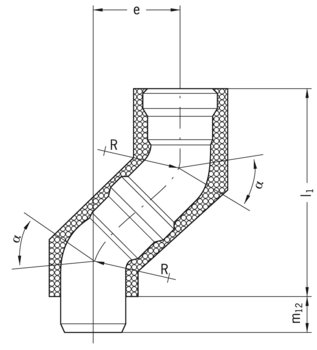

Storey mounting dimensions
| Nominal width | Radius | α = 15° | α = 15° | Weight | α = 30° | α = 30° | Weight | α = 44° | α = 44° | Weight | α = 70° | α = 70° | Weight | α = 88° | α = 88° | Weight |
| DN | R | e | l | e | l | e | l | e | l | e | l | |||||
| mm | mm | mm | kg | mm | mm | kg | mm | mm | kg | mm | mm | kg | mm | mm | kg | |
| 40 | 28 | 20 | 155 | 1,0 | 43 | 160 | 1,0 | 61 | 151 | 1,2 | 98 | 140 | 1,4 | 138 | 143 | 1,6 |
| 50 | 35,5 | 24 | 179 | 1,2 | 51 | 188 | 1,4 | 77 | 191 | 1,6 | 124 | 177 | 1,8 | 151 | 156 | 2,0 |
| 70 | 50 | 27 | 202 | 2,0 | 59 | 218 | 2,2 | 92 | 227 | 2,4 | 150 | 215 | 3,2 | 186 | 193 | 3,6 |
| 80 | 82,5 | 37 | 183 | 4,6 | 82 | 306 | 4,8 | 129 | 320 | 5,4 | 222 | 317 | 6,4 | 280 | 29 | 7,4 |
| 100 | 70 | 38 | 291 | 5,2 | 84 | 313 | 5,4 | 131 | 323 | 6,0 | 214 | 306 | 7,0 | 262 | 271 | 8,0 |
| 125 | 90 | 40 | 305 | 7,0 | 90 | 334 | 7,8 | 142 | 352 | 8,6 | 242 | 345 | 10,0 | 303 | 314 | 11,0 |
| 150 | 150 | 47 | 354 | 8,6 | 110 | 410 | 11,2 | 183 | 454 | 13,6 | 329 | 470 | 17,2 | 430 | 445 | 20,0 |
| 200 | 305 | 308 | 763 | 40,0 | 780 | 807 | 65,6 |

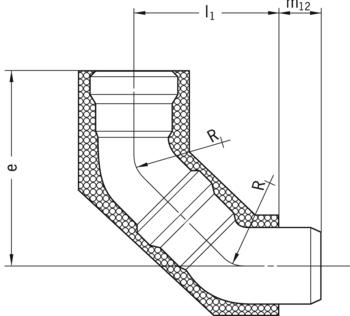

Fitting dimensions when using 2 bends with the same angle of 44°
| Nominal width | Radius | α = 44° | α = 44° | Weight |
| DN | R | e | l | |
| mm | mm | mm | kg | |
| 40 | 28 | 114 | 100 | 1,2 |
| 50 | 35,5 | 144 | 126 | 1,6 |
| 70 | 50 | 183 | 138 | 2,4 |
| 80 | 82,5 | 254 | 197 | 5,5 |
| 100 | 70 | 261 | 195 | 6,0 |
| 125 | 90 | 285 | 212 | 8,6 |
| 150 | 150 | 360 | 280 | 13,6 |
| 200 | 305 | 607 | 470 | 40,0 |
Coupling socket dimensions
| Nominal width | d1 | d2 | m1 | m12 | s1 | s2 |
| DN | mm | mm | mm | mm | mm | mm |
| 40 | 42 | 89 | 30 | 25 | 1,5 | 1,8 |
| 50 | 53 | 89 | 38 | 30 | 1,5 | 1,8 |
| 70 | 73 | 102 | 55 | 45 | 1,6 | 2,0 |
| 80 | 89 | 134 | 60 | 50 | 1,8 | 2,0 |
| 100 | 102 | 134 | 70 | 60 | 2,0 | 2,0 |
| 125 | 133 | 164 | 75 | 65 | 2,5 | 2,0 |
| 150 | 159 | 204 | 80 | 70 | 2,5 | 2,0 |
| 200 | 219 | 273 | 120 | 110 | 3,2 | 2,0 |
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 40
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.1 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 50
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.1 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 70
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.2 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 80
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.2 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 100
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.2 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 125
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.3 kg
- Rabattgruppe: 8
Pipe clamp
Suitable for
- GM-X drainpipe
- GM-X Filling and ventilation lines for heating oil tanks
- DN 150
Description
- Striker pin length: 120 mm
- No soundproofing insert
- Weight: 0.4 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.2 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.3 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.3 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.3 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.4 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.5 kg
- Rabattgruppe: 8
Pipe clamp
Description
- Weight: 0.8 kg
- Rabattgruppe: 8
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 40
- D = 100 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 50
- D = 130 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 70
- D = 150 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 80
- D = 150 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 100
- D = 180 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 125
- D = 220 mm
Fire protection moulding
Suitable for
- Gm-X drainpipe and compound piping
Description
- Fire resistance class: R 30 – R 90 for pipe separation
- Length: 250 mm
- DN 150
- D = 225 mm
GM-X lubricant
Suitable for
- GM-X drainpipes
- GM-X compound piping
Description
- In can
- Contents: 1,000 g
- To be used as per laying instructions 0154.49.79
- Weight: 1.1 kg
- Rabattgruppe: 8
ACO VBR assembly tool set
Description
- Rabattgruppe: 8
