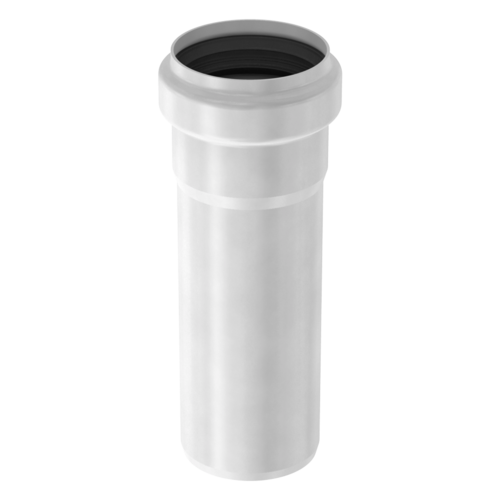

Straight pipes - single socket

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

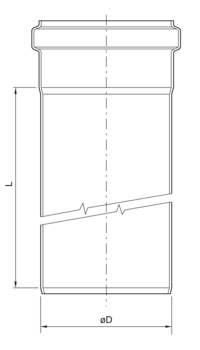

Nominal pipe sizeActive length (L)DimensionsMaterialSealWeightItem

number
Remember
D
[mm][mm][kg]
DN 40150401.4301EPDM0.20417304
1.4404EPDM0.20417320
250401.4301EPDM0.30417306
1.4404EPDM0.30417322
500401.4301EPDM0.60417308
1.4404EPDM0.60417324
750401.4301EPDM0.80417310
1.4404EPDM0.80417326
1000401.4301EPDM1.10417312
1.4404EPDM1.10417328
1500401.4301EPDM1.60417314
1.4404EPDM1.60417330
2000401.4301EPDM2.10417316
1.4404EPDM2.10417332
2500401.4301EPDM2.80417260
1.4404EPDM2.80417262
3000401.4301EPDM3.10417318
1.4404EPDM3.10417334
4000401.4301EPDM4.10417264
1.4404EPDM4.10417270
5000401.4301EPDM5.10417266
1.4404EPDM5.10417272
5950401.4301EPDM6.10417268
1.4404EPDM6.10417274
DN 50150501.4301EPDM0.2098500
Viton®0.2098501
1.4404EPDM2.0098550
Viton®2.0098551
250501.4301EPDM0.4098502
Viton®0.4098503
1.4404EPDM0.4098552
Viton®0.4098553
500501.4301EPDM0.7098504
Viton®0.7098505
1.4404EPDM0.7098554
Viton®0.7098555
750501.4301EPDM1.0098506
Viton®1.0098507
1.4404EPDM1.0098556
Viton®1.0098557
1000501.4301EPDM1.3098508
Viton®1.3098509
1.4404EPDM1.3098558
Viton®1.3098559
1500501.4301EPDM1.9098510
Viton®1.9098511
1.4404EPDM1.9098560
Viton®1.9098561
2000501.4301EPDM2.6098512
Viton®2.6098513
1.4404EPDM2.6098562
Viton®2.6098563
2500501.4301EPDM3.20419274
Viton®3.20419275
1.4404EPDM3.20419282
Viton®3.20419283
3000501.4301EPDM3.8098514
Viton®3.2098515
1.4404EPDM3.8098564
Viton®3.2098565
4000501.4301EPDM5.00419458
Viton®5.00419459
1.4404EPDM5.00419482
Viton®5.00419483
5000501.4301EPDM6.30419466
Viton®6.30419467
1.4404EPDM6.30419490
Viton®6.30419491
6000501.4301EPDM7.60419474
Viton®7.60419475
1.4404EPDM7.60419498
Viton®7.60419499
DN 75150751.4301EPDM0.4098516
Viton®0.4098517
1.4404EPDM0.4098566
Viton®0.4098567
250751.4301EPDM0.6098518
Viton®0.6098519
1.4404EPDM0.6098568
Viton®0.6098569
500751.4301EPDM1.0098520
Viton®1.0098521
1.4404EPDM1.0098570
Viton®1.0098571
750751.4301EPDM1.5098522
Viton®1.5098523
1.4404EPDM1.5098572
Viton®1.5098573
1000751.4301EPDM2.0098524
Viton®2.0098525
1.4404EPDM2.0098574
Viton®2.0098575
1500751.4301EPDM2.9098526
Viton®2.9098527
1.4404EPDM2.9098576
Viton®2.9098577
2000751.4301EPDM3.6098528
Viton®3.6098529
1.4404EPDM3.6098578
Viton®3.6098579
2500751.4301EPDM4.80419276
Viton®4.80419277
1.4404EPDM4.80419284
Viton®4.80419285
3000751.4301EPDM5.7098530
Viton®5.7098531
1.4404EPDM5.7098580
Viton®5.7098581
4000751.4301EPDM7.60419460
Viton®7.60419461
1.4404EPDM7.60419484
Viton®7.60419485
5000751.4301EPDM9.40419468
Viton®9.40419469
1.4404EPDM9.40419492
Viton®9.40419493
6000751.4301EPDM11.40419476
Viton®11.40419477
1.4404EPDM11.40419500
Viton®11.40419501
DN 1101501101.4301EPDM0.6098532
Viton®0.6098533
1.4404EPDM0.6098582
Viton®0.6098583
2501101.4301EPDM0.9098534
Viton®0.9098535
1.4404EPDM0.9098584
Viton®0.9098585
5001101.4301EPDM1.5098536
Viton®1.5098537
1.4404EPDM1.5098586
Viton®1.5098587
7501101.4301EPDM2.2098538
Viton®2.2098539
1.4404EPDM2.2098588
Viton®2.2098589
10001101.4301EPDM2.9098540
Viton®2.9098541
1.4404EPDM2.9098590
Viton®2.9098591
15001101.4301EPDM4.3098542
Viton®4.3098543
1.4404EPDM4.3098592
Viton®4.3098593
20001101.4301EPDM5.7098544
Viton®5.7098545
1.4404EPDM5.7098594
Viton®5.7098595
25001101.4301EPDM7.10419278
Viton®7.10419279
1.4404EPDM7.10419286
Viton®7.10419287
30001101.4301EPDM8.4098546
Viton®8.4098547
1.4404EPDM8.4098596
Viton®8.4098597
40001101.4301EPDM11.10419462
Viton®11.10419463
1.4404EPDM11.10419486
Viton®11.10419487
50001101.4301EPDM13.90419470
Viton®13.90419471
1.4404EPDM13.90419494
Viton®13.90419495
60001101.4301EPDM16.70419478
Viton®16.70419479
1.4404EPDM16.70419502
Viton®16.70419503
DN 1251501251.4301EPDM0.68419692
Viton®0.68419693
1.4404EPDM0.68419712
Viton®0.68419713
2501251.4301EPDM1.02419694
Viton®1.02419695
1.4404EPDM1.02419714
Viton®1.02419715
5001251.4301EPDM1.71419696
Viton®1.71419697
1.4404EPDM1.71419716
Viton®1.71419717
7501251.4301EPDM2.50419698
Viton®2.50419699
1.4404EPDM2.50419718
Viton®2.50419719
10001251.4301EPDM3.30419700
Viton®3.30419701
1.4404EPDM3.30419720
Viton®3.30419721
15001251.4301EPDM4.90419702
Viton®4.90419703
1.4404EPDM4.90419722
Viton®4.90419723
20001251.4301EPDM6.49419704
Viton®6.49419705
1.4404EPDM6.49419724
Viton®6.49419725
25001251.4301EPDM8.10419708
Viton®8.10419709
1.4404EPDM9.57419728
Viton®9.57419729
30001251.4301EPDM9.57419706
Viton®9.57419707
1.4404EPDM8.10419726
Viton®8.10419727
60001251.4301EPDM19.03419710
Viton®19.03419711
1.4404EPDM19.03419730
Viton®19.03419731
DN 1601501601.4301EPDM1.1098548
Viton®1.1098549
1.4404EPDM1.1098598
Viton®1.1098599
2501601.4301EPDM1.6098600
Viton®1.6098601
1.4404EPDM1.6098650
Viton®1.6098651
5001601.4301EPDM2.9098602
Viton®2.9098603
1.4404EPDM2.9098652
Viton®2.9098653
7501601.4301EPDM4.1098604
Viton®4.1098605
1.4404EPDM4.1098654
Viton®4.1098655
10001601.4301EPDM5.4098606
Viton®5.4098607
1.4404EPDM5.4098656
Viton®5.4098657
15001601.4301EPDM7.9098608
Viton®7.9098609
1.4404EPDM7.9098658
Viton®7.9098659
20001601.4301EPDM10.4098610
Viton®10.4098611
1.4404EPDM10.4098660
Viton®10.4098661
25001601.4301EPDM12.90419280
Viton®12.90419281
1.4404EPDM12.90419288
Viton®12.90419289
30001601.4301EPDM15.4098612
Viton®15.4098613
1.4404EPDM15.4098662
Viton®15.4098663
40001601.4301EPDM20.40419464
Viton®20.40419465
1.4404EPDM20.40419488
Viton®20.40419489
50001601.4301EPDM25.40419472
Viton®25.40419473
1.4404EPDM25.40419496
Viton®25.40419497
60001601.4301EPDM30.40419480
Viton®30.40419481
1.4404EPDM30.40419504
Viton®30.40419505
DN 2005002001.4301EPDM4.50419383
Viton®4.50419385
1.4404EPDM4.50419384
Viton®4.50419386
10002001.4301EPDM8.20419387
Viton®8.20419389
1.4404EPDM8.20419388
Viton®8.20419390
20002001.4301EPDM13.70419391
Viton®13.70419393
1.4404EPDM13.70419392
Viton®13.70419394
30002001.4301EPDM23.20419395
Viton®23.20419397
1.4404EPDM23.20419396
Viton®23.20419398
DN 2505002501.4301EPDM5.50417071
Viton®5.50417073
1.4404EPDM5.50417072
Viton®5.50417074
10002501.4301EPDM10.20417075
Viton®10.20417077
1.4404EPDM10.20417076
Viton®10.20417078
20002501.4301EPDM19.40417079
Viton®19.40417081
1.4404EPDM19.40417080
Viton®19.40417082
30002501.4301EPDM28.70417083
Viton®28.70417085
1.4404EPDM28.70417084
Viton®28.70417086
DN 3155003151.4301EPDM9.80417238
1.4404EPDM9.80417200
10003151.4301EPDM17.70417239
1.4404EPDM17.70417201
20003151.4301EPDM33.50417240
1.4404EPDM33.50417202
30003151.4301EPDM49.30417241
1.4404EPDM49.30417203
Nominal sizeActive length (L)DimensionsSealMaterialWeightItem

number
D
DN 40150 mm40 mmEPDM1.43010.20 kg417304
1.44040.20 kg417320
250 mm40 mmEPDM1.43010.30 kg417306
1.44040.30 kg417322
500 mm40 mmEPDM1.43010.60 kg417308
1.44040.60 kg417324
750 mm40 mmEPDM1.43010.80 kg417310
1.44040.80 kg417326
1000 mm40 mmEPDM1.43011.10 kg417312
1.44041.10 kg417328
1500 mm40 mmEPDM1.43011.60 kg417314
1.44041.60 kg417330
2000 mm40 mmEPDM1.43012.10 kg417316
1.44042.10 kg417332
2500 mm40 mmEPDM1.43012.80 kg417260
1.44042.80 kg417262
3000 mm40 mmEPDM1.43013.10 kg417318
1.44043.10 kg417334
4000 mm40 mmEPDM1.43014.10 kg417264
1.44044.10 kg417270
5000 mm40 mmEPDM1.43015.10 kg417266
1.44045.10 kg417272
5950 mm40 mmEPDM1.43016.10 kg417268
1.44046.10 kg417274
DN 50150 mm50 mmEPDM1.43010.20 kg98500
Viton®1.43010.20 kg98501
EPDM1.44042.00 kg98550
Viton®1.44042.00 kg98551
250 mm50 mmEPDM1.43010.40 kg98502
Viton®1.43010.40 kg98503
EPDM1.44040.40 kg98552
Viton®1.44040.40 kg98553
500 mm50 mmEPDM1.43010.70 kg98504
Viton®1.43010.70 kg98505
EPDM1.44040.70 kg98554
Viton®1.44040.70 kg98555
750 mm50 mmEPDM1.43011.00 kg98506
Viton®1.43011.00 kg98507
EPDM1.44041.00 kg98556
Viton®1.44041.00 kg98557
1000 mm50 mmEPDM1.43011.30 kg98508
Viton®1.43011.30 kg98509
EPDM1.44041.30 kg98558
Viton®1.44041.30 kg98559
1500 mm50 mmEPDM1.43011.90 kg98510
Viton®1.43011.90 kg98511
EPDM1.44041.90 kg98560
Viton®1.44041.90 kg98561
2000 mm50 mmEPDM1.43012.60 kg98512
Viton®1.43012.60 kg98513
EPDM1.44042.60 kg98562
Viton®1.44042.60 kg98563
2500 mm50 mmEPDM1.43013.20 kg419274
Viton®1.43013.20 kg419275
EPDM1.44043.20 kg419282
Viton®1.44043.20 kg419283
3000 mm50 mmEPDM1.43013.80 kg98514
Viton®1.43013.20 kg98515
EPDM1.44043.80 kg98564
Viton®1.44043.20 kg98565
4000 mm50 mmEPDM1.43015.00 kg419458
Viton®1.43015.00 kg419459
EPDM1.44045.00 kg419482
Viton®1.44045.00 kg419483
5000 mm50 mmEPDM1.43016.30 kg419466
Viton®1.43016.30 kg419467
EPDM1.44046.30 kg419490
Viton®1.44046.30 kg419491
6000 mm50 mmEPDM1.43017.60 kg419474
Viton®1.43017.60 kg419475
EPDM1.44047.60 kg419498
Viton®1.44047.60 kg419499
DN 75150 mm75 mmEPDM1.43010.40 kg98516
Viton®1.43010.40 kg98517
EPDM1.44040.40 kg98566
Viton®1.44040.40 kg98567
250 mm75 mmEPDM1.43010.60 kg98518
Viton®1.43010.60 kg98519
EPDM1.44040.60 kg98568
Viton®1.44040.60 kg98569
500 mm75 mmEPDM1.43011.00 kg98520
Viton®1.43011.00 kg98521
EPDM1.44041.00 kg98570
Viton®1.44041.00 kg98571
750 mm75 mmEPDM1.43011.50 kg98522
Viton®1.43011.50 kg98523
EPDM1.44041.50 kg98572
Viton®1.44041.50 kg98573
1000 mm75 mmEPDM1.43012.00 kg98524
Viton®1.43012.00 kg98525
EPDM1.44042.00 kg98574
Viton®1.44042.00 kg98575
1500 mm75 mmEPDM1.43012.90 kg98526
Viton®1.43012.90 kg98527
EPDM1.44042.90 kg98576
Viton®1.44042.90 kg98577
2000 mm75 mmEPDM1.43013.60 kg98528
Viton®1.43013.60 kg98529
EPDM1.44043.60 kg98578
Viton®1.44043.60 kg98579
2500 mm75 mmEPDM1.43014.80 kg419276
Viton®1.43014.80 kg419277
EPDM1.44044.80 kg419284
Viton®1.44044.80 kg419285
3000 mm75 mmEPDM1.43015.70 kg98530
Viton®1.43015.70 kg98531
EPDM1.44045.70 kg98580
Viton®1.44045.70 kg98581
4000 mm75 mmEPDM1.43017.60 kg419460
Viton®1.43017.60 kg419461
EPDM1.44047.60 kg419484
Viton®1.44047.60 kg419485
5000 mm75 mmEPDM1.43019.40 kg419468
Viton®1.43019.40 kg419469
EPDM1.44049.40 kg419492
Viton®1.44049.40 kg419493
6000 mm75 mmEPDM1.430111.40 kg419476
Viton®1.430111.40 kg419477
EPDM1.440411.40 kg419500
Viton®1.440411.40 kg419501
DN 110150 mm110 mmEPDM1.43010.60 kg98532
Viton®1.43010.60 kg98533
EPDM1.44040.60 kg98582
Viton®1.44040.60 kg98583
250 mm110 mmEPDM1.43010.90 kg98534
Viton®1.43010.90 kg98535
EPDM1.44040.90 kg98584
Viton®1.44040.90 kg98585
500 mm110 mmEPDM1.43011.50 kg98536
Viton®1.43011.50 kg98537
EPDM1.44041.50 kg98586
Viton®1.44041.50 kg98587
750 mm110 mmEPDM1.43012.20 kg98538
Viton®1.43012.20 kg98539
EPDM1.44042.20 kg98588
Viton®1.44042.20 kg98589
1000 mm110 mmEPDM1.43012.90 kg98540
Viton®1.43012.90 kg98541
EPDM1.44042.90 kg98590
Viton®1.44042.90 kg98591
1500 mm110 mmEPDM1.43014.30 kg98542
Viton®1.43014.30 kg98543
EPDM1.44044.30 kg98592
Viton®1.44044.30 kg98593
2000 mm110 mmEPDM1.43015.70 kg98544
Viton®1.43015.70 kg98545
EPDM1.44045.70 kg98594
Viton®1.44045.70 kg98595
2500 mm110 mmEPDM1.43017.10 kg419278
Viton®1.43017.10 kg419279
EPDM1.44047.10 kg419286
Viton®1.44047.10 kg419287
3000 mm110 mmEPDM1.43018.40 kg98546
Viton®1.43018.40 kg98547
EPDM1.44048.40 kg98596
Viton®1.44048.40 kg98597
4000 mm110 mmEPDM1.430111.10 kg419462
Viton®1.430111.10 kg419463
EPDM1.440411.10 kg419486
Viton®1.440411.10 kg419487
5000 mm110 mmEPDM1.430113.90 kg419470
Viton®1.430113.90 kg419471
EPDM1.440413.90 kg419494
Viton®1.440413.90 kg419495
6000 mm110 mmEPDM1.430116.70 kg419478
Viton®1.430116.70 kg419479
EPDM1.440416.70 kg419502
Viton®1.440416.70 kg419503
DN 125150 mm125 mmEPDM1.43010.68 kg419692
Viton®1.43010.68 kg419693
EPDM1.44040.68 kg419712
Viton®1.44040.68 kg419713
250 mm125 mmEPDM1.43011.02 kg419694
Viton®1.43011.02 kg419695
EPDM1.44041.02 kg419714
Viton®1.44041.02 kg419715
500 mm125 mmEPDM1.43011.71 kg419696
Viton®1.43011.71 kg419697
EPDM1.44041.71 kg419716
Viton®1.44041.71 kg419717
750 mm125 mmEPDM1.43012.50 kg419698
Viton®1.43012.50 kg419699
EPDM1.44042.50 kg419718
Viton®1.44042.50 kg419719
1000 mm125 mmEPDM1.43013.30 kg419700
Viton®1.43013.30 kg419701
EPDM1.44043.30 kg419720
Viton®1.44043.30 kg419721
1500 mm125 mmEPDM1.43014.90 kg419702
Viton®1.43014.90 kg419703
EPDM1.44044.90 kg419722
Viton®1.44044.90 kg419723
2000 mm125 mmEPDM1.43016.49 kg419704
Viton®1.43016.49 kg419705
EPDM1.44046.49 kg419724
Viton®1.44046.49 kg419725
2500 mm125 mmEPDM1.43018.10 kg419708
Viton®1.43018.10 kg419709
EPDM1.44049.57 kg419728
Viton®1.44049.57 kg419729
3000 mm125 mmEPDM1.43019.57 kg419706
Viton®1.43019.57 kg419707
EPDM1.44048.10 kg419726
Viton®1.44048.10 kg419727
6000 mm125 mmEPDM1.430119.03 kg419710
Viton®1.430119.03 kg419711
EPDM1.440419.03 kg419730
Viton®1.440419.03 kg419731
DN 160150 mm160 mmEPDM1.43011.10 kg98548
Viton®1.43011.10 kg98549
EPDM1.44041.10 kg98598
Viton®1.44041.10 kg98599
250 mm160 mmEPDM1.43011.60 kg98600
Viton®1.43011.60 kg98601
EPDM1.44041.60 kg98650
Viton®1.44041.60 kg98651
500 mm160 mmEPDM1.43012.90 kg98602
Viton®1.43012.90 kg98603
EPDM1.44042.90 kg98652
Viton®1.44042.90 kg98653
750 mm160 mmEPDM1.43014.10 kg98604
Viton®1.43014.10 kg98605
EPDM1.44044.10 kg98654
Viton®1.44044.10 kg98655
1000 mm160 mmEPDM1.43015.40 kg98606
Viton®1.43015.40 kg98607
EPDM1.44045.40 kg98656
Viton®1.44045.40 kg98657
1500 mm160 mmEPDM1.43017.90 kg98608
Viton®1.43017.90 kg98609
EPDM1.44047.90 kg98658
Viton®1.44047.90 kg98659
2000 mm160 mmEPDM1.430110.40 kg98610
Viton®1.430110.40 kg98611
EPDM1.440410.40 kg98660
Viton®1.440410.40 kg98661
2500 mm160 mmEPDM1.430112.90 kg419280
Viton®1.430112.90 kg419281
EPDM1.440412.90 kg419288
Viton®1.440412.90 kg419289
3000 mm160 mmEPDM1.430115.40 kg98612
Viton®1.430115.40 kg98613
EPDM1.440415.40 kg98662
Viton®1.440415.40 kg98663
4000 mm160 mmEPDM1.430120.40 kg419464
Viton®1.430120.40 kg419465
EPDM1.440420.40 kg419488
Viton®1.440420.40 kg419489
5000 mm160 mmEPDM1.430125.40 kg419472
Viton®1.430125.40 kg419473
EPDM1.440425.40 kg419496
Viton®1.440425.40 kg419497
6000 mm160 mmEPDM1.430130.40 kg419480
Viton®1.430130.40 kg419481
EPDM1.440430.40 kg419504
Viton®1.440430.40 kg419505
DN 200500 mm200 mmEPDM1.43014.50 kg419383
Viton®1.43014.50 kg419385
EPDM1.44044.50 kg419384
Viton®1.44044.50 kg419386
1000 mm200 mmEPDM1.43018.20 kg419387
Viton®1.43018.20 kg419389
EPDM1.44048.20 kg419388
Viton®1.44048.20 kg419390
2000 mm200 mmEPDM1.430113.70 kg419391
Viton®1.430113.70 kg419393
EPDM1.440413.70 kg419392
Viton®1.440413.70 kg419394
3000 mm200 mmEPDM1.430123.20 kg419395
Viton®1.430123.20 kg419397
EPDM1.440423.20 kg419396
Viton®1.440423.20 kg419398
DN 250500 mm250 mmEPDM1.43015.50 kg417071
Viton®1.43015.50 kg417073
EPDM1.44045.50 kg417072
Viton®1.44045.50 kg417074
1000 mm250 mmEPDM1.430110.20 kg417075
Viton®1.430110.20 kg417077
EPDM1.440410.20 kg417076
Viton®1.440410.20 kg417078
2000 mm250 mmEPDM1.430119.40 kg417079
Viton®1.430119.40 kg417081
EPDM1.440419.40 kg417080
Viton®1.440419.40 kg417082
3000 mm250 mmEPDM1.430128.70 kg417083
Viton®1.430128.70 kg417085
EPDM1.440428.70 kg417084
Viton®1.440428.70 kg417086
DN 315500 mm315 mmEPDM1.43019.80 kg417238
1.44049.80 kg417200
1000 mm315 mmEPDM1.430117.70 kg417239
1.440417.70 kg417201
2000 mm315 mmEPDM1.430133.50 kg417240
1.440433.50 kg417202
3000 mm315 mmEPDM1.430149.30 kg417241
1.440449.30 kg417203
