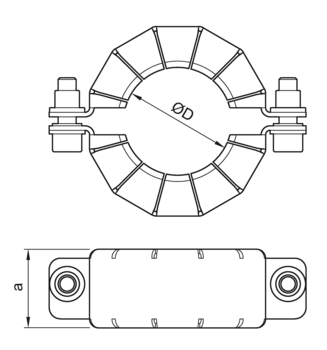

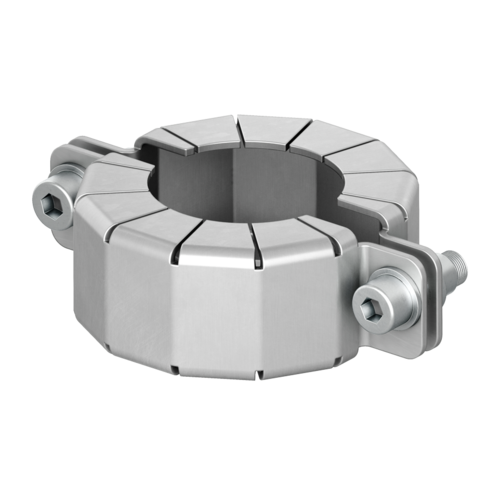

Socket clamp - two piece

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation
Nominal pipe sizeUsed withDimensionsMaterialWeightItem

number
Remember
Da
[mm][mm][kg]
DN 40DN 4040361.43010.10417396
1.44040.10417397
DN 50DN 5050401.43010.14417024
1.44040.14417025
DN 75DN 7575401.43010.25417026
1.44040.25417027
DN 110DN 110110431.43010.35417028
1.44040.34417029
DN 125DN 125125451.43010.38417016
1.44040.38417017
DN 160DN 160160451.43010.48417030
1.44040.48417031
DN 200DN 200200451.44040.51419983
DN 250DN 250250451.44040.71417137
DN 315DN 315315481.44040.90417219
Nominal sizeUsed withDimensionsMaterialWeightItem

number
Da
DN 40DN 4040 mm36 mm1.43010.10 kg417396
1.44040.10 kg417397
DN 50DN 5050 mm40 mm1.43010.14 kg417024
1.44040.14 kg417025
DN 75DN 7575 mm40 mm1.43010.25 kg417026
1.44040.25 kg417027
DN 110DN 110110 mm43 mm1.43010.35 kg417028
1.44040.34 kg417029
DN 125DN 125125 mm45 mm1.43010.38 kg417016
1.44040.38 kg417017
DN 160DN 160160 mm45 mm1.43010.48 kg417030
1.44040.48 kg417031
DN 200DN 200200 mm45 mm1.44040.51 kg419983
DN 250DN 250250 mm45 mm1.44040.71 kg417137
DN 315DN 315315 mm48 mm1.44040.90 kg417219
