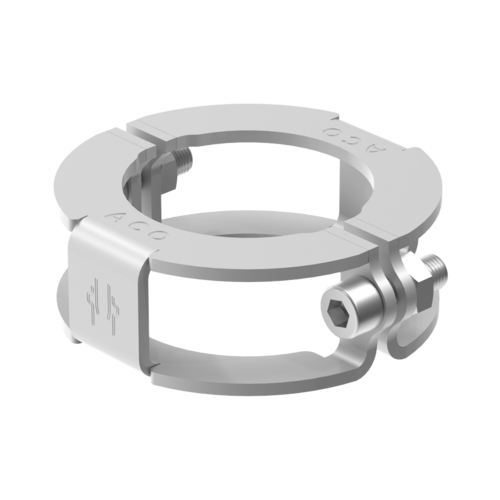

Peak pressure clamp

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Peak pressure clamp is certified to withstand pressure of 6,5 bar


Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

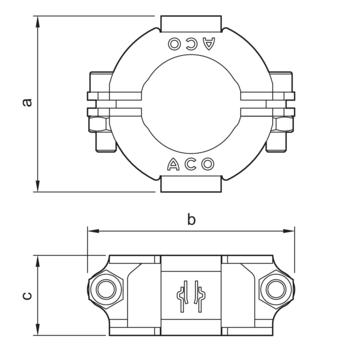

Used withDimensionsMaterialItem

number
Remember
abc
[mm][mm][mm]
DN 5088104401.4301450183
1.4404450190
DN 75113127401.4301450184
1.4404450191
DN 110150166461.4301450185
1.4404450192
Used withDimensionsMaterialItem

number
abc
DN 5088 mm104 mm40 mm1.4301450183
1.4404450190
DN 75113 mm127 mm40 mm1.4301450184
1.4404450191
DN 110150 mm166 mm46 mm1.4301450185
1.4404450192
