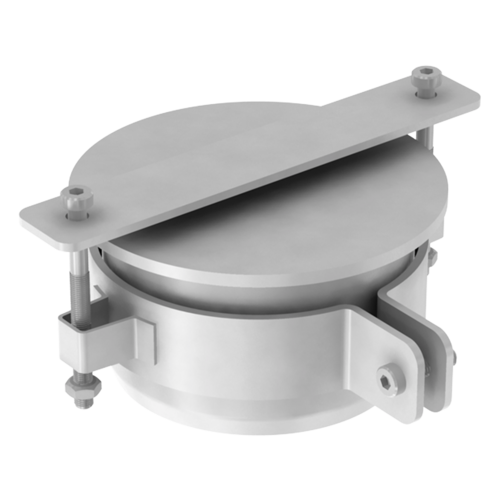

Socket plug with clamp

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation
Nominal pipe sizeDimensionsMaterialWeightItem

number
Remember

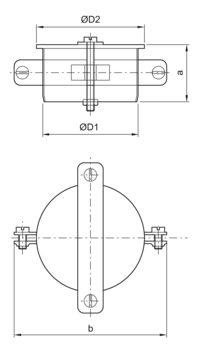

D1D2ab
[mm][mm][mm][mm][kg]
DN 40401.4404417402
DN 50505845881.44040.40419138
DN 757585451201.44040.60419139
DN 110110120451671.44040.80419140
DN 160160170502141.44041.10419141
DN 250250260833021.44041.30417132
DN 3153153251303711.44043.70417216
Nominal sizeDimensionsMaterialWeightItem

number
D1D2ab
DN 4040 mm1.4404417402
DN 5050 mm58 mm45 mm88 mm1.44040.40 kg419138
DN 7575 mm85 mm45 mm120 mm1.44040.60 kg419139
DN 110110 mm120 mm45 mm167 mm1.44040.80 kg419140
DN 160160 mm170 mm50 mm214 mm1.44041.10 kg419141
DN 250250 mm260 mm83 mm302 mm1.44041.30 kg417132
DN 315315 mm325 mm130 mm371 mm1.44043.70 kg417216
