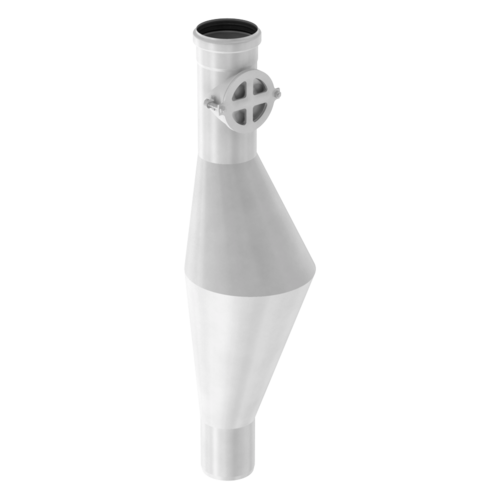

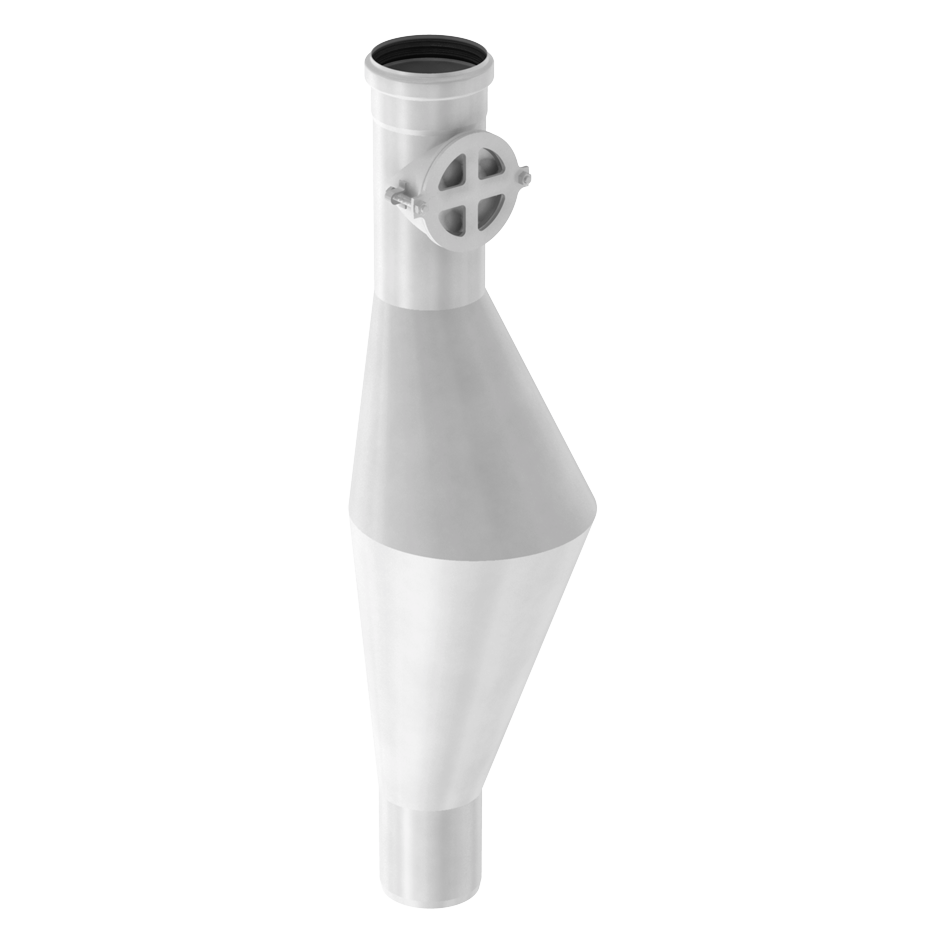

Rat-stop

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

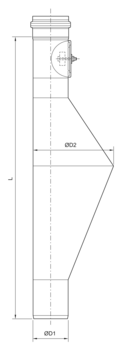

Nominal pipe sizeDimensionsMaterialSealWeightItem

number
Remember
D1D2L
[mm][mm][mm][kg]
DN 1101102508641.4301EPDM3.80419268
Viton®3.80419269
1.4404EPDM3.80419270
Viton®3.80419271
Nominal sizeDimensionsSealMaterialWeightItem

number
D1D2L
DN 110110 mm250 mm864 mmEPDM1.43013.80 kg419268
Viton®1.43013.80 kg419269
EPDM1.44043.80 kg419270
Viton®1.44043.80 kg419271
