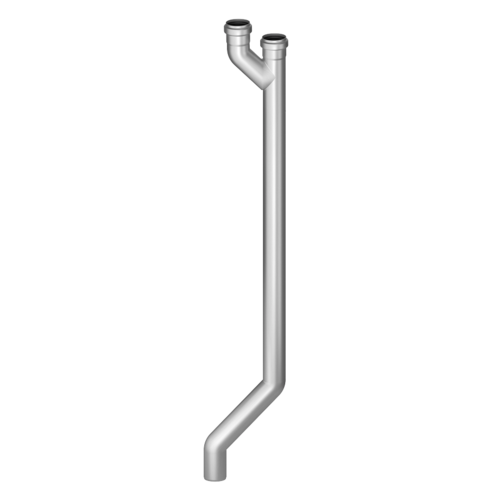

Vaccum transport pocket

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

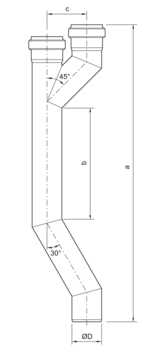

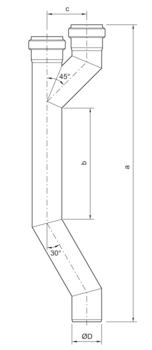

DimensionsMaterialSealWeightItem

number
Remember
D1abc
[mm][mm][mm][mm][kg]
505981831001.4404EPDM0.50417032
757262751001.4404EPDM0.70417036
DimensionsSealMaterialWeightItem

number
D1abc
50 mm598 mm183 mm100 mmEPDM1.44040.50 kg417032
75 mm726 mm275 mm100 mmEPDM1.44040.70 kg417036
