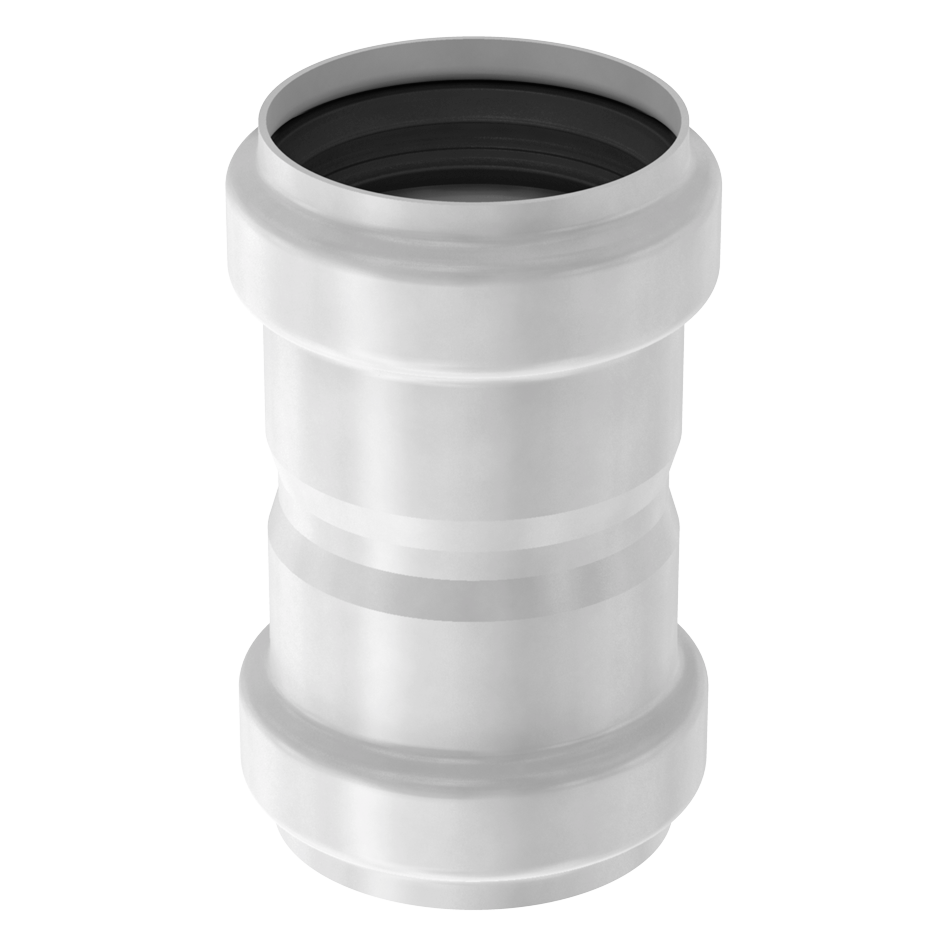

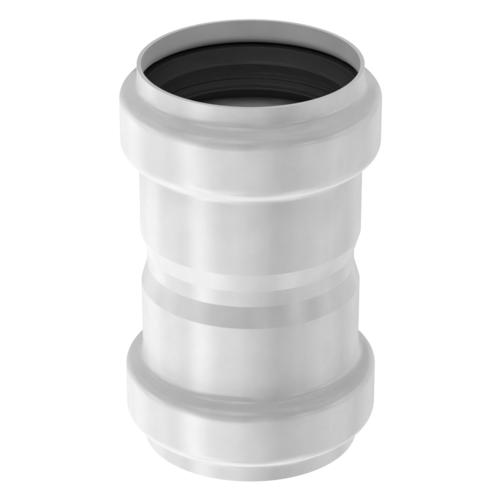

Straight coupling

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

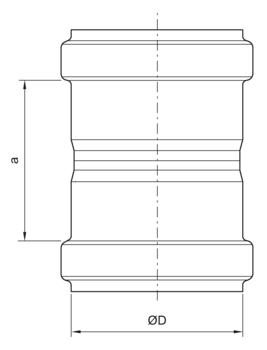

Nominal pipe sizeDimensionsMaterialSealWeightItem

number
Remember
Da
[mm][mm][kg]
DN 4040511.4301EPDM0.10417392
1.4404EPDM0.10417394
DN 5050541.4301EPDM0.1098920
Viton®0.1098921
1.4404EPDM0.1098970
Viton®0.1098971
DN 7575751.4301EPDM0.2098922
Viton®0.2098923
1.4404EPDM0.2098972
Viton®0.2098973
DN 110110841.4301EPDM0.4098924
Viton®0.4098925
1.4404EPDM0.4098974
Viton®0.4098975
DN 125125841.4301EPDM0.60419813
Viton®0.60419814
1.4404EPDM0.60419815
Viton®0.60419816
DN 1601601101.4301EPDM0.8098926
Viton®0.8098927
1.4404EPDM0.8098976
Viton®0.8098977
DN 2002001361.4301EPDM1.90419431
Viton®1.90419432
1.4404EPDM1.90419433
Viton®1.90419434
DN 2502501811.4404EPDM3.10417160
Viton®3.10417161
DN 3153151791.4404EPDM5.20417225

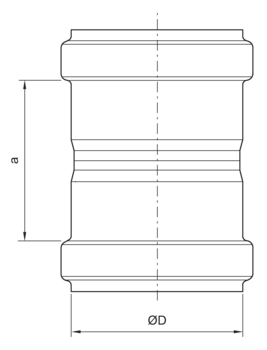

Nominal sizeDimensionsSealMaterialWeightItem

number
Da
DN 4040 mm51 mmEPDM1.43010.10 kg417392
1.44040.10 kg417394
DN 5050 mm54 mmEPDM1.43010.10 kg98920
Viton®1.43010.10 kg98921
EPDM1.44040.10 kg98970
Viton®1.44040.10 kg98971
DN 7575 mm75 mmEPDM1.43010.20 kg98922
Viton®1.43010.20 kg98923
EPDM1.44040.20 kg98972
Viton®1.44040.20 kg98973
DN 110110 mm84 mmEPDM1.43010.40 kg98924
Viton®1.43010.40 kg98925
EPDM1.44040.40 kg98974
Viton®1.44040.40 kg98975
DN 125125 mm84 mmEPDM1.43010.60 kg419813
Viton®1.43010.60 kg419814
EPDM1.44040.60 kg419815
Viton®1.44040.60 kg419816
DN 160160 mm110 mmEPDM1.43010.80 kg98926
Viton®1.43010.80 kg98927
EPDM1.44040.80 kg98976
Viton®1.44040.80 kg98977
DN 200200 mm136 mmEPDM1.43011.90 kg419431
Viton®1.43011.90 kg419432
EPDM1.44041.90 kg419433
Viton®1.44041.90 kg419434
DN 250250 mm181 mmEPDM1.44043.10 kg417160
Viton®1.44043.10 kg417161
DN 315315 mm179 mmEPDM1.44045.20 kg417225
