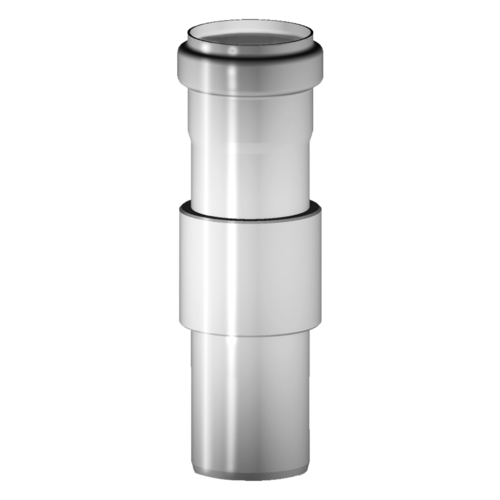

Penetrations Pipe acc to en 1124 form T2 A0-A60

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

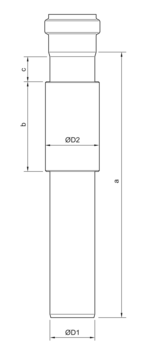

Dimensions					Material	Seal	Weight	Item number
D1	D2	a	b	c			Weight
[mm]	[mm]	[mm]	[mm]	[mm]			[kg]

50	60	150	50	33	1.4301	EPDM	0.50	419060
		150	50	33	1.4404	EPDM	0.50	98990
		250	100	33	1.4301	EPDM	1.00	419062
		250	100	33	1.4404	EPDM	1.00	98898
		500	100	33	1.4301	EPDM	1.30	419064
		500	100	33	1.4404	EPDM	1.30	98980

75	85	150	50	24	1.4301	EPDM	0.80	419068
		150	50	24	1.4404	EPDM	0.80	98982
		250	100	24	1.4301	EPDM	1.50	419070
		250	100	24	1.4404	EPDM	1.50	98950
		500	100	24	1.4301	EPDM	2.00	419072
		500	100	24	1.4404	EPDM	2.00	98984

110	120	150	50	18	1.4301	EPDM	1.00	419076
		150	50	18	1.4404	EPDM	1.00	98986
		250	100	18	1.4301	EPDM	2.10	419078
		250	100	18	1.4404	EPDM	2.10	98952
		500	100	18	1.4301	EPDM	2.50	419080
		500	100	18	1.4404	EPDM	2.50	98988

125	135	250	100	12	1.4301	EPDM	3.00	419852
125	135	250	100	12	1.4404	EPDM	3.00	419853

160	170	250	100	10	1.4301	EPDM	3.20	419084
160	170	250	100	10	1.4404	EPDM	3.20	98954

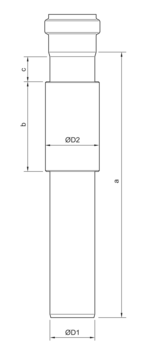

Dimensions					Seal	Material	Weight	Item number
D1	D2	a	b	c	Seal	Material	Weight	Item number

50 mm	60 mm	150 mm	50 mm	33 mm	EPDM	1.4301	0.50 kg	419060
		150 mm	50 mm	33 mm	EPDM	1.4404	0.50 kg	98990
		250 mm	100 mm	33 mm	EPDM	1.4301	1.00 kg	419062
		250 mm	100 mm	33 mm	EPDM	1.4404	1.00 kg	98898
		500 mm	100 mm	33 mm	EPDM	1.4301	1.30 kg	419064
		500 mm	100 mm	33 mm	EPDM	1.4404	1.30 kg	98980

75 mm	85 mm	150 mm	50 mm	24 mm	EPDM	1.4301	0.80 kg	419068
		150 mm	50 mm	24 mm	EPDM	1.4404	0.80 kg	98982
		250 mm	100 mm	24 mm	EPDM	1.4301	1.50 kg	419070
		250 mm	100 mm	24 mm	EPDM	1.4404	1.50 kg	98950
		500 mm	100 mm	24 mm	EPDM	1.4301	2.00 kg	419072
		500 mm	100 mm	24 mm	EPDM	1.4404	2.00 kg	98984

110 mm	120 mm	150 mm	50 mm	18 mm	EPDM	1.4301	1.00 kg	419076
		150 mm	50 mm	18 mm	EPDM	1.4404	1.00 kg	98986
		250 mm	100 mm	18 mm	EPDM	1.4301	2.10 kg	419078
		250 mm	100 mm	18 mm	EPDM	1.4404	2.10 kg	98952
		500 mm	100 mm	18 mm	EPDM	1.4301	2.50 kg	419080
		500 mm	100 mm	18 mm	EPDM	1.4404	2.50 kg	98988

125 mm	135 mm	250 mm	100 mm	12 mm	EPDM	1.4301	3.00 kg	419852
125 mm	135 mm	250 mm	100 mm	12 mm	EPDM	1.4404	3.00 kg	419853

160 mm	170 mm	250 mm	100 mm	10 mm	EPDM	1.4301	3.20 kg	419084
160 mm	170 mm	250 mm	100 mm	10 mm	EPDM	1.4404	3.20 kg	98954
