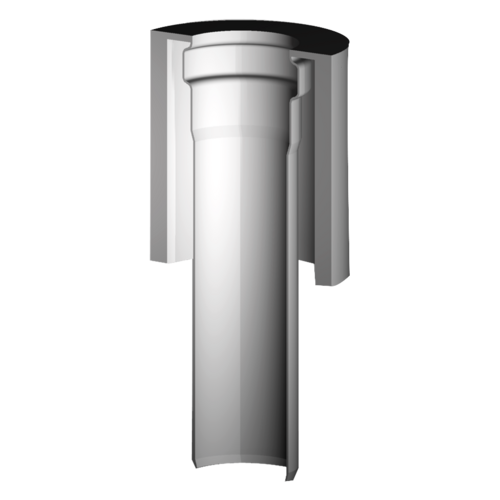

Penetration from R1B with black pod, for direct wilding in the deck

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

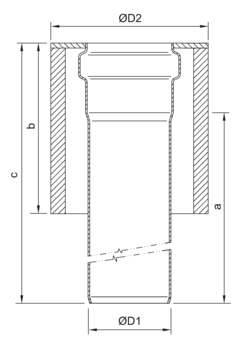

DimensionsMaterialSealWeightItem

number
Remember
D1D2abc
[mm][mm][mm][mm][mm][kg]
50951501031921.4404EPDM2.29419688
751271501032001.4404EPDM3.15419689
110152.41501032071.4404EPDM4.00419690
DimensionsSealMaterialWeightItem

number
D1D2abc
50 mm95 mm150 mm103 mm192 mmEPDM1.44042.29 kg419688
75 mm127 mm150 mm103 mm200 mmEPDM1.44043.15 kg419689
110 mm152.4 mm150 mm103 mm207 mmEPDM1.44044.00 kg419690
