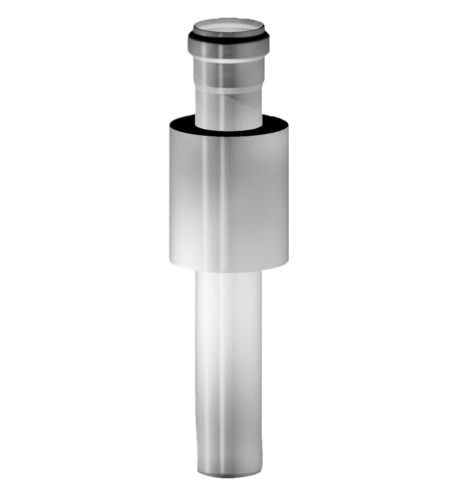

Penetration form T2 with a black pod, for direct welding in the deck A0-A60

Penetration Form T2 With A Black Pod For Direct Welding In The Deck A0-a60 694885

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Resistant to thermal and dynamic shocks
Fast, reliable and cost-effective installation
Sagging-proof
Non-combustible
Rodent-proof

Product information

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

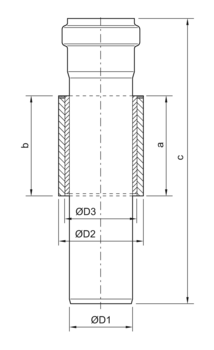

Dimensions						Material	Seal	Weight	Item number	Downloads	Remember
D1	D2	D3	a	b	c			Weight
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]			[kg]

50	90	60.3	250	100	292	1.4404	EPDM	2.86	419685

75	108	85	250	100	300	1.4404	EPDM	3.83	419686

110	152.4	120	250	100	307	1.4404	EPDM	5.64	419687

	Dimensions						Seal	Material	Weight	Item number
	D1	D2	D3	a	b	c	Seal	Material	Weight	Item number

	50 mm	90 mm	60.3 mm	250 mm	100 mm	292 mm	EPDM	1.4404	2.86 kg	419685

	75 mm	108 mm	85 mm	250 mm	100 mm	300 mm	EPDM	1.4404	3.83 kg	419686

	110 mm	152.4 mm	120 mm	250 mm	100 mm	307 mm	EPDM	1.4404	5.64 kg	419687

Dimensions						Material	Seal	Weight	Item number	Downloads	Remember
D1	D2	D3	a	b	c			Weight
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]			[kg]

50	90	60.3	250	100	292	1.4404	EPDM	2.86	419685

75	108	85	250	100	300	1.4404	EPDM	3.83	419686

110	152.4	120	250	100	307	1.4404	EPDM	5.64	419687

	Dimensions						Seal	Material	Weight	Item number
	D1	D2	D3	a	b	c	Seal	Material	Weight	Item number

	50 mm	90 mm	60.3 mm	250 mm	100 mm	292 mm	EPDM	1.4404	2.86 kg	419685

	75 mm	108 mm	85 mm	250 mm	100 mm	300 mm	EPDM	1.4404	3.83 kg	419686

	110 mm	152.4 mm	120 mm	250 mm	100 mm	307 mm	EPDM	1.4404	5.64 kg	419687
