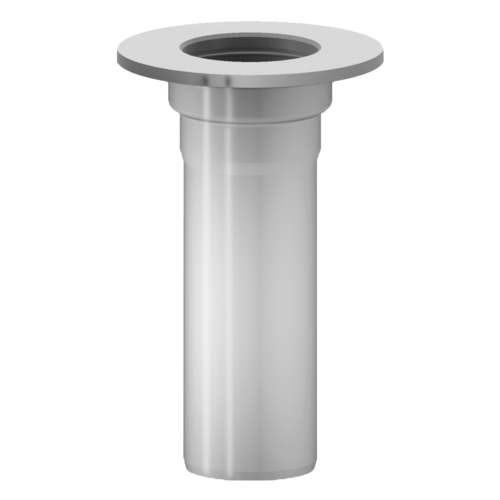

Flange Penetration with Standad Socket

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

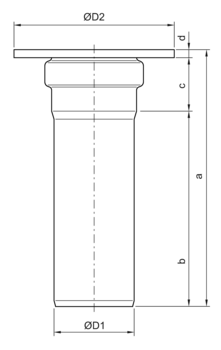

Dimensions						Material	Seal	Weight	Item number
D1	D2	a	b	c	e			Weight
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]			[kg]

50	100	89	42	42	5	1.4301	EPDM	0.50	419090
		89	42	42	5	1.4404	EPDM	0.50	419022
		164	117	42	5	1.4301	EPDM	0.60	419092
		164	117	42	5	1.4404	EPDM	0.60	419024

75	125	105	50	50	5	1.4301	EPDM	0.85	419096
		105	50	50	5	1.4404	EPDM	0.85	419026
		180	125	50	5	1.4301	EPDM	1.00	419098
		180	125	50	5	1.4404	EPDM	1.00	419028

110	160	117	55	57	5	1.4301	EPDM	1.00	419102
110	160	117	55	57	5	1.4404	EPDM	1.00	419030

125	160	205	143	57	5	1.4301	EPDM	1.25	419104
125	160	205	143	57	5	1.4404	EPDM	1.25	419032

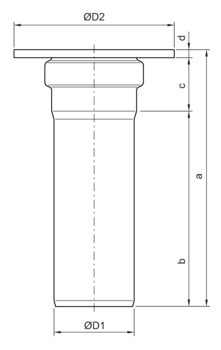

Dimensions						Seal	Material	Weight	Item number
D1	D2	a	b	c	e	Seal	Material	Weight	Item number

50 mm	100 mm	89 mm	42 mm	42 mm	5 mm	EPDM	1.4301	0.50 kg	419090
		89 mm	42 mm	42 mm	5 mm	EPDM	1.4404	0.50 kg	419022
		164 mm	117 mm	42 mm	5 mm	EPDM	1.4301	0.60 kg	419092
		164 mm	117 mm	42 mm	5 mm	EPDM	1.4404	0.60 kg	419024

75 mm	125 mm	105 mm	50 mm	50 mm	5 mm	EPDM	1.4301	0.85 kg	419096
		105 mm	50 mm	50 mm	5 mm	EPDM	1.4404	0.85 kg	419026
		180 mm	125 mm	50 mm	5 mm	EPDM	1.4301	1.00 kg	419098
		180 mm	125 mm	50 mm	5 mm	EPDM	1.4404	1.00 kg	419028

110 mm	160 mm	117 mm	55 mm	57 mm	5 mm	EPDM	1.4301	1.00 kg	419102
110 mm	160 mm	117 mm	55 mm	57 mm	5 mm	EPDM	1.4404	1.00 kg	419030

125 mm	160 mm	205 mm	143 mm	57 mm	5 mm	EPDM	1.4301	1.25 kg	419104
125 mm	160 mm	205 mm	143 mm	57 mm	5 mm	EPDM	1.4404	1.25 kg	419032
