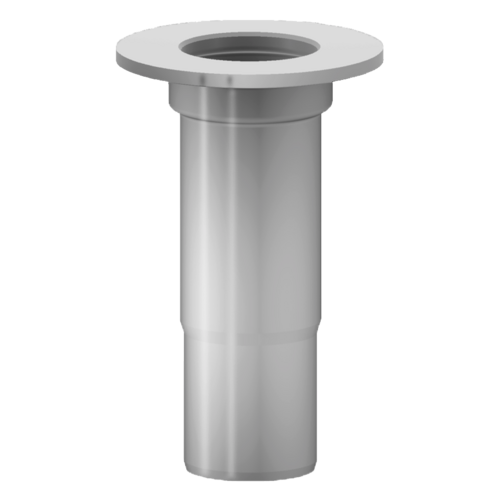

Flange Penetration with expansion socket A0-A60

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

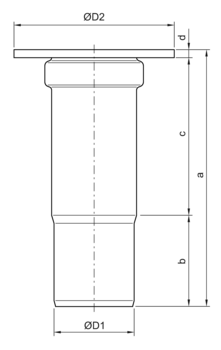

Dimensions						Material	Seal	Weight	Item number
D1	D2	a	b	c	e			Weight
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]			[kg]

50	100	164	57	102	5	1.4301	EPDM	0.60	419088
50	100	164	57	102	5	1.4404	EPDM	0.60	419006

75	125	180	62	113	5	1.4301	EPDM	1.00	419094
75	125	180	62	113	5	1.4404	EPDM	1.00	419008

110	160	205	79	121	5	1.4301	EPDM	1.25	419100
110	160	205	79	121	5	1.4404	EPDM	1.25	419010

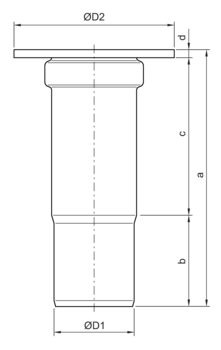

Dimensions						Seal	Material	Weight	Item number
D1	D2	a	b	c	e	Seal	Material	Weight	Item number

50 mm	100 mm	164 mm	57 mm	102 mm	5 mm	EPDM	1.4301	0.60 kg	419088
50 mm	100 mm	164 mm	57 mm	102 mm	5 mm	EPDM	1.4404	0.60 kg	419006

75 mm	125 mm	180 mm	62 mm	113 mm	5 mm	EPDM	1.4301	1.00 kg	419094
75 mm	125 mm	180 mm	62 mm	113 mm	5 mm	EPDM	1.4404	1.00 kg	419008

110 mm	160 mm	205 mm	79 mm	121 mm	5 mm	EPDM	1.4301	1.25 kg	419100
110 mm	160 mm	205 mm	79 mm	121 mm	5 mm	EPDM	1.4404	1.25 kg	419010
