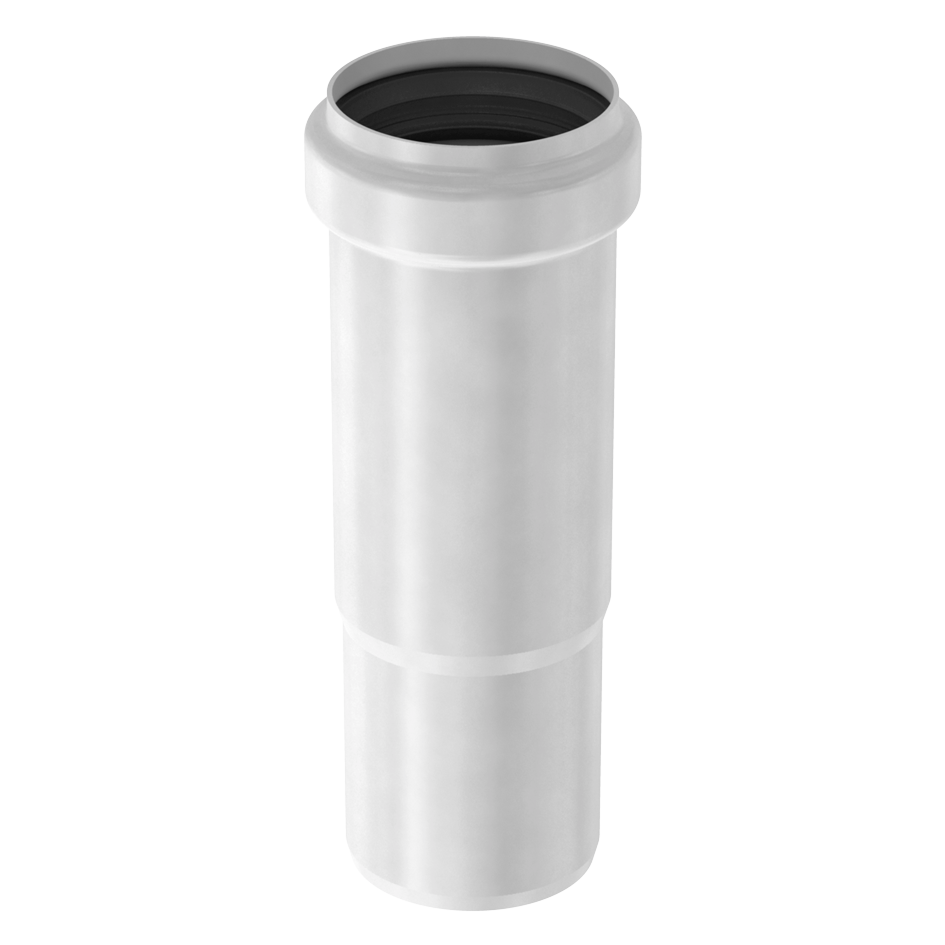

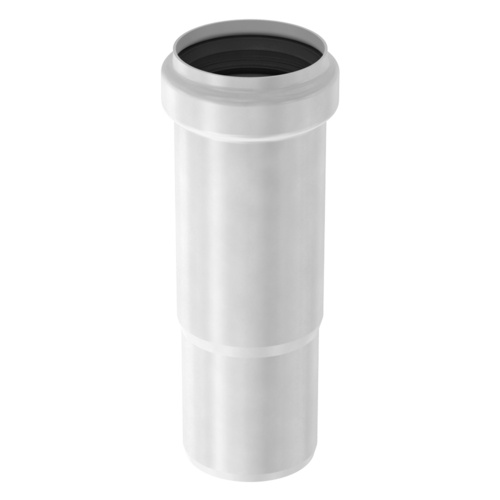

Expansion socket

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

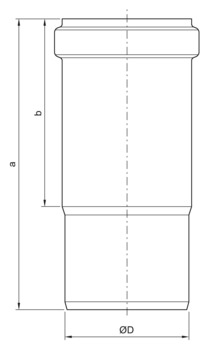

Nominal pipe sizeDimensionsMaterialSealWeightItem

number
Remember
Dab
[mm][mm][mm][kg]
DN 4040150901.4301EPDM0.20417382
1.4404EPDM0.20417384
DN 50501591021.4301EPDM0.2098664
Viton®0.2098665
1.4404EPDM0.2098666
Viton®0.2098667
DN 75751751131.4301EPDM0.3098668
Viton®0.3098669
1.4404EPDM0.3098670
Viton®0.3098671
DN 1101102001211.4301EPDM0.5098672
Viton®0.5098673
1.4404EPDM0.5098674
Viton®0.5098675
DN 1251252501651.4301EPDM0.57419776
Viton®0.57419777
1.4404EPDM0.57419778
Viton®0.57419779
DN 1601602921701.4301EPDM1.4098676
Viton®1.4098677
1.4404EPDM1.4098678
Viton®1.4098679
DN 2002003501801.4301EPDM2.40417194
Viton®2.40417195
1.4404EPDM2.40417196
Viton®2.40417197
DN 2502504001901.4404EPDM3.80417143
Viton®3.80417145
DN 3153154502001.4404EPDM7.20417221
Nominal sizeDimensionsSealMaterialWeightItem

number
Dab
DN 4040 mm150 mm90 mmEPDM1.43010.20 kg417382
1.44040.20 kg417384
DN 5050 mm159 mm102 mmEPDM1.43010.20 kg98664
Viton®1.43010.20 kg98665
EPDM1.44040.20 kg98666
Viton®1.44040.20 kg98667
DN 7575 mm175 mm113 mmEPDM1.43010.30 kg98668
Viton®1.43010.30 kg98669
EPDM1.44040.30 kg98670
Viton®1.44040.30 kg98671
DN 110110 mm200 mm121 mmEPDM1.43010.50 kg98672
Viton®1.43010.50 kg98673
EPDM1.44040.50 kg98674
Viton®1.44040.50 kg98675
DN 125125 mm250 mm165 mmEPDM1.43010.57 kg419776
Viton®1.43010.57 kg419777
EPDM1.44040.57 kg419778
Viton®1.44040.57 kg419779
DN 160160 mm292 mm170 mmEPDM1.43011.40 kg98676
Viton®1.43011.40 kg98677
EPDM1.44041.40 kg98678
Viton®1.44041.40 kg98679
DN 200200 mm350 mm180 mmEPDM1.43012.40 kg417194
Viton®1.43012.40 kg417195
EPDM1.44042.40 kg417196
Viton®1.44042.40 kg417197
DN 250250 mm400 mm190 mmEPDM1.44043.80 kg417143
Viton®1.44043.80 kg417145
DN 315315 mm450 mm200 mmEPDM1.44047.20 kg417221
