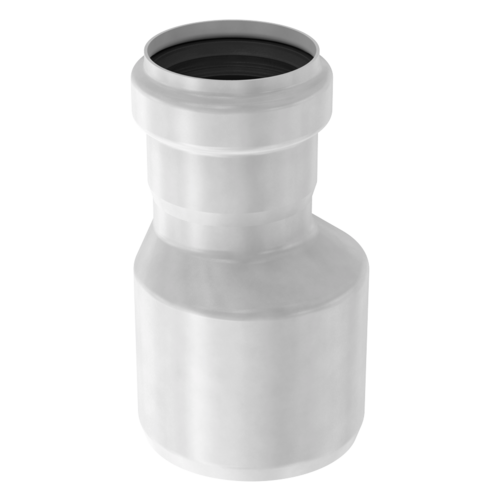

Eccentric increaser coupling

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation
Nominal pipe sizeDimensionsMaterialSealWeightItem

number
Remember

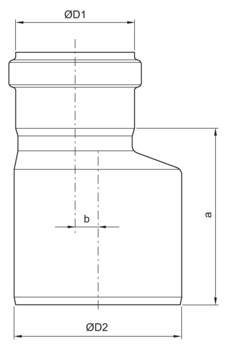

D1D2ab
[mm][mm][mm][mm][kg]
DN 40 / DN 5040508551.4404EPDM0.22417418
DN 40 / DN 7540758517.51.4404EPDM0.22417419
DN 50 / DN 7550758871.4404EPDM0.3198892
Viton®0.3198893
DN 50 / DN 11050110103251.4404EPDM0.3898978
Viton®0.3898979
DN 75 / DN 11075110116151.4404EPDM0.5298894
Viton®0.5298895
DN 110 / DN 160110160136221.4404EPDM1.1298896
Viton®1.1298897
DN 200 / DN 250200250180151.4404EPDM2.40417135
Viton®2.40417136
DN 250 / DN 315250315190151.4404EPDM4.40417218
Nominal sizeDimensionsSealMaterialWeightItem

number
D1D2ab
DN 40 / DN 5040 mm50 mm85 mm5 mmEPDM1.44040.22 kg417418
DN 40 / DN 7540 mm75 mm85 mm17.5 mmEPDM1.44040.22 kg417419
DN 50 / DN 7550 mm75 mm88 mm7 mmEPDM1.44040.31 kg98892
Viton®1.44040.31 kg98893
DN 50 / DN 11050 mm110 mm103 mm25 mmEPDM1.44040.38 kg98978
Viton®1.44040.38 kg98979
DN 75 / DN 11075 mm110 mm116 mm15 mmEPDM1.44040.52 kg98894
Viton®1.44040.52 kg98895
DN 110 / DN 160110 mm160 mm136 mm22 mmEPDM1.44041.12 kg98896
Viton®1.44041.12 kg98897
DN 200 / DN 250200 mm250 mm180 mm15 mmEPDM1.44042.40 kg417135
Viton®1.44042.40 kg417136
DN 250 / DN 315250 mm315 mm190 mm15 mmEPDM1.44044.40 kg417218
