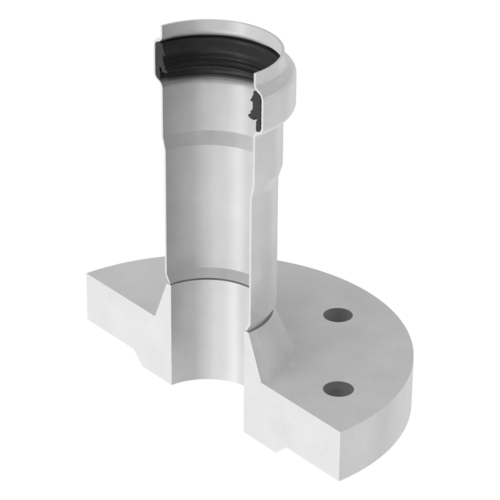

Connector with socket and flange

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

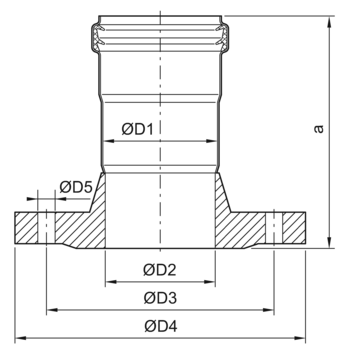

Nominal pipe size	Dimensions						No. of bolts	Material	Seal	Weight	Item number
	D1	D2	D3	D4	D5	a	No. of bolts			Weight
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[piece]			[kg]

DN 40 / DN 40	40	40	110	150	18	100	4	1.4404	EPDM	1.95	417420
DN 40 / DN 50	40	50	110	150	18	100	4	1.4404	EPDM	1.95	417421

DN 50 / DN 40	50	40	110	150	18	100	4	1.4404	EPDM	2.25	419256
DN 50 / DN 40	50	40	110	150	18	100	4	1.4404	Viton®	2.25	419257
DN 50 / DN 50	50	50	125	165	18	100	4	1.4404	EPDM	2.65	419258
DN 50 / DN 50	50	50	125	165	18	100	4	1.4404	Viton®	2.65	419259

DN 75 / DN 65	75	65	145	185	18	100	4	1.4404	EPDM	3.35	419260
DN 75 / DN 65	75	65	145	185	18	100	4	1.4404	Viton®	3.35	419261

DN 110 / DN 100	110	100	180	220	18	100	4	1.4404	EPDM	4.85	419262
DN 110 / DN 100	110	100	180	220	18	100	4	1.4404	Viton®	4.85	419263
DN 160 / DN 150									Viton®		419513

DN 125 / DN 125	125	125	210	250	18	170	8	1.4404	EPDM	6.77	419974

DN 200 / DN 200	200	200	295	340	22	102	12	1.4404	EPDM	12.00	419514
DN 200 / DN 200	200	200	295	340	22	102	12	1.4404	Viton®	12.00	419515

Nominal size	Dimensions						No. of bolts	Seal	Material	Weight	Item number
Nominal size	D1	D2	D3	D4	D5	a	No. of bolts	Seal	Material	Weight	Item number

DN 40 / DN 40	40 mm	40 mm	110 mm	150 mm	18 mm	100 mm	4 piece	EPDM	1.4404	1.95 kg	417420
DN 40 / DN 50	40 mm	50 mm	110 mm	150 mm	18 mm	100 mm	4 piece	EPDM	1.4404	1.95 kg	417421

DN 50 / DN 40	50 mm	40 mm	110 mm	150 mm	18 mm	100 mm	4 piece	EPDM	1.4404	2.25 kg	419256
DN 50 / DN 40	50 mm	40 mm	110 mm	150 mm	18 mm	100 mm	4 piece	Viton®	1.4404	2.25 kg	419257
DN 50 / DN 50	50 mm	50 mm	125 mm	165 mm	18 mm	100 mm	4 piece	EPDM	1.4404	2.65 kg	419258
DN 50 / DN 50	50 mm	50 mm	125 mm	165 mm	18 mm	100 mm	4 piece	Viton®	1.4404	2.65 kg	419259

DN 75 / DN 65	75 mm	65 mm	145 mm	185 mm	18 mm	100 mm	4 piece	EPDM	1.4404	3.35 kg	419260
DN 75 / DN 65	75 mm	65 mm	145 mm	185 mm	18 mm	100 mm	4 piece	Viton®	1.4404	3.35 kg	419261

DN 110 / DN 100	110 mm	100 mm	180 mm	220 mm	18 mm	100 mm	4 piece	EPDM	1.4404	4.85 kg	419262
DN 110 / DN 100	110 mm	100 mm	180 mm	220 mm	18 mm	100 mm	4 piece	Viton®	1.4404	4.85 kg	419263
DN 160 / DN 150								Viton®			419513

DN 125 / DN 125	125 mm	125 mm	210 mm	250 mm	18 mm	170 mm	8 piece	EPDM	1.4404	6.77 kg	419974

DN 200 / DN 200	200 mm	200 mm	295 mm	340 mm	22 mm	102 mm	12 piece	EPDM	1.4404	12.00 kg	419514
DN 200 / DN 200	200 mm	200 mm	295 mm	340 mm	22 mm	102 mm	12 piece	Viton®	1.4404	12.00 kg	419515
