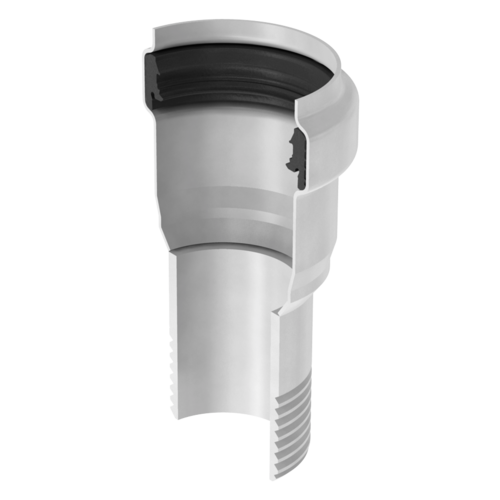

Connector with socket and external screw thread

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

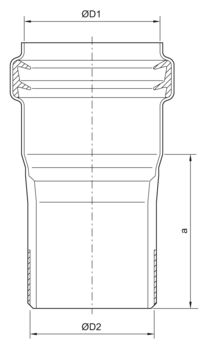

Nominal pipe sizeDimensionsD2MaterialSealWeightItem

number
Remember
D1a
[mm][mm][kg]
DN 5050581¼"1.4404EPDM0.20419250
Viton®0.20419251
1½"1.4404EPDM0.28419252
Viton®0.28419253
2"1.4404EPDM0.30419254
Viton®0.30419255
Nominal sizeDimensionsD2SealMaterialWeightItem

number
D1a
DN 5050 mm58 mm1¼"EPDM1.44040.20 kg419250
Viton®1.44040.20 kg419251
1½"EPDM1.44040.28 kg419252
Viton®1.44040.28 kg419253
2"EPDM1.44040.30 kg419254
Viton®1.44040.30 kg419255
