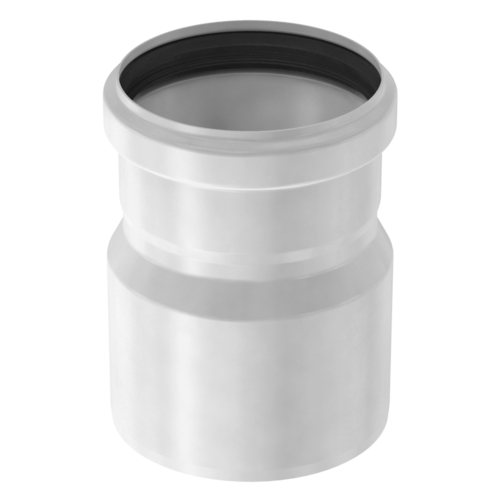

Concentric increaser coupling

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

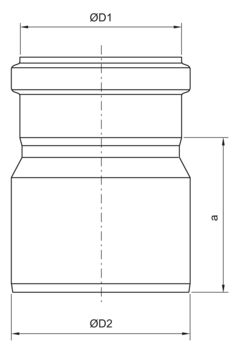

Nominal pipe sizeDimensionsMaterialSealWeightItem

number
Remember
D1D2a
[mm][mm][mm][kg]
DN 40 / DN 504050851.4404EPDM0.25417403
DN 40 / DN 754075851.4404EPDM0.30417417
DN 50 / DN 755075881.4404EPDM0.30419826
DN 50 / DN 110501101131.4404EPDM1.40417018
Viton®1.40417019
DN 75 / DN 110751101051.4404EPDM0.60419828
DN 110 / DN 1251101251071.4404EPDM0.60419780
Viton®0.60419781
DN 110 / DN 1601101601261.4404EPDM0.90419830
DN 125 / DN 1601251601601.4404EPDM1.20419811
Viton®1.20419812
DN 160 / DN 2001602002001.4404EPDM1.80419441
Viton®1.80419442
DN 200 / DN 2502002501801.4404EPDM2.40417133
Viton®2.40417134
DN 250 / DN 3152503151901.4404EPDM4.40417217
Nominal sizeDimensionsSealMaterialWeightItem

number
D1D2a
DN 40 / DN 5040 mm50 mm85 mmEPDM1.44040.25 kg417403
DN 40 / DN 7540 mm75 mm85 mmEPDM1.44040.30 kg417417
DN 50 / DN 7550 mm75 mm88 mmEPDM1.44040.30 kg419826
DN 50 / DN 11050 mm110 mm113 mmEPDM1.44041.40 kg417018
Viton®1.44041.40 kg417019
DN 75 / DN 11075 mm110 mm105 mmEPDM1.44040.60 kg419828
DN 110 / DN 125110 mm125 mm107 mmEPDM1.44040.60 kg419780
Viton®1.44040.60 kg419781
DN 110 / DN 160110 mm160 mm126 mmEPDM1.44040.90 kg419830
DN 125 / DN 160125 mm160 mm160 mmEPDM1.44041.20 kg419811
Viton®1.44041.20 kg419812
DN 160 / DN 200160 mm200 mm200 mmEPDM1.44041.80 kg419441
Viton®1.44041.80 kg419442
DN 200 / DN 250200 mm250 mm180 mmEPDM1.44042.40 kg417133
Viton®1.44042.40 kg417134
DN 250 / DN 315250 mm315 mm190 mmEPDM1.44044.40 kg417217
