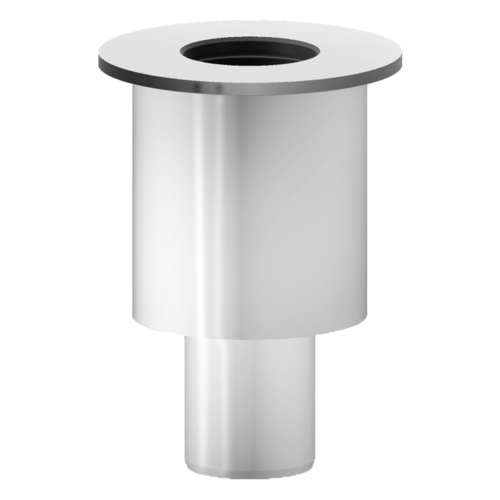

AP sleeve penetration A0-A60

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

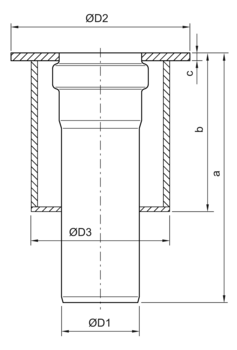

DimensionsMaterialSealWeightItem

number
Remember
D1D2D3abc
[mm][mm][mm][mm][mm][mm][kg]
5011589160.510251.4404EPDM1.40419036
DimensionsSealMaterialWeightItem

number
D1D2D3abc
50 mm115 mm89 mm160.5 mm102 mm5 mmEPDM1.44041.40 kg419036
