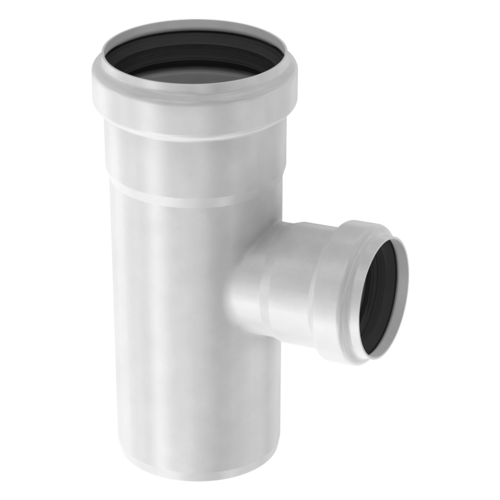

Single branch reduction 87,5°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof
Contact
Downloads

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

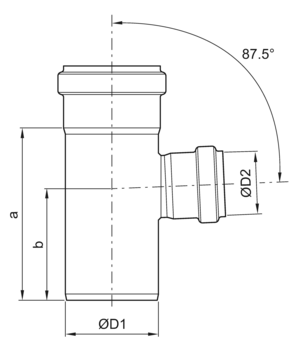

Nominal pipe sizeAngle αDimensionsMaterialSealWeightItem

number		Remember
D1D2ab
[mm][mm][mm][mm][kg]
DN 50 / DN 4087,5°5040106981.4301EPDM0.30417442
1.4404EPDM0.30417443
DN 75 / DN 4087,5°7540139981.4301EPDM0.30417444
1.4404EPDM0.30417445
DN 75 / DN 5087,5°7550139901.4301EPDM0.3098928
Viton®0.3098929
1.4404EPDM0.3098930
Viton®0.3098931
DN 110 / DN 5087,5°110501831171.4301EPDM0.5098932
Viton®0.5098933
1.4404EPDM0.5098934
Viton®0.5098935
DN 110 / DN 7587,5°110751831171.4301EPDM0.8098936
Viton®0.8098937
1.4404EPDM0.8098938
Viton®0.8098939
DN 125 / DN 7587,5°125751871101.4301EPDM0.90419752
Viton®0.90419753
1.4404EPDM1.12419754
Viton®1.12419755
DN 125 / DN 11087,5°1251102051271.4301EPDM0.90419756
Viton®0.90419757
1.4404EPDM0.90419758
Viton®0.90419759
DN 160 / DN 11087,5°1601102881841.4301EPDM2.30400691
Viton®2.30400692
1.4404EPDM2.30400693
Viton®2.30400694
DN 200 / DN 16087,5°2001602931861.4301EPDM3.60419415
Viton®3.60419416
1.4404EPDM3.60419417
Viton®3.60419418
DN 250 / DN 20087,5°2502003492261.4301EPDM5.80417111
1.4404EPDM5.80417112
Viton®5.80417114
DN 315 / DN 25087,5°3152504112481.4404EPDM10.50417210
Nominal sizeAngle αDimensionsSealMaterialWeightItem

number
D1D2ab
DN 50 / DN 4087,5°50 mm40 mm106 mm98 mmEPDM1.43010.30 kg417442
1.44040.30 kg417443
DN 75 / DN 4087,5°75 mm40 mm139 mm98 mmEPDM1.43010.30 kg417444
1.44040.30 kg417445
DN 75 / DN 5087,5°75 mm50 mm139 mm90 mmEPDM1.43010.30 kg98928
Viton®1.43010.30 kg98929
EPDM1.44040.30 kg98930
Viton®1.44040.30 kg98931
DN 110 / DN 5087,5°110 mm50 mm183 mm117 mmEPDM1.43010.50 kg98932
Viton®1.43010.50 kg98933
EPDM1.44040.50 kg98934
Viton®1.44040.50 kg98935
DN 110 / DN 7587,5°110 mm75 mm183 mm117 mmEPDM1.43010.80 kg98936
Viton®1.43010.80 kg98937
EPDM1.44040.80 kg98938
Viton®1.44040.80 kg98939
DN 125 / DN 7587,5°125 mm75 mm187 mm110 mmEPDM1.43010.90 kg419752
Viton®1.43010.90 kg419753
EPDM1.44041.12 kg419754
Viton®1.44041.12 kg419755
DN 125 / DN 11087,5°125 mm110 mm205 mm127 mmEPDM1.43010.90 kg419756
Viton®1.43010.90 kg419757
EPDM1.44040.90 kg419758
Viton®1.44040.90 kg419759
DN 160 / DN 11087,5°160 mm110 mm288 mm184 mmEPDM1.43012.30 kg400691
Viton®1.43012.30 kg400692
EPDM1.44042.30 kg400693
Viton®1.44042.30 kg400694
DN 200 / DN 16087,5°200 mm160 mm293 mm186 mmEPDM1.43013.60 kg419415
Viton®1.43013.60 kg419416
EPDM1.44043.60 kg419417
Viton®1.44043.60 kg419418
DN 250 / DN 20087,5°250 mm200 mm349 mm226 mmEPDM1.43015.80 kg417111
1.44045.80 kg417112
Viton®1.44045.80 kg417114
DN 315 / DN 25087,5°315 mm250 mm411 mm248 mmEPDM1.440410.50 kg417210
