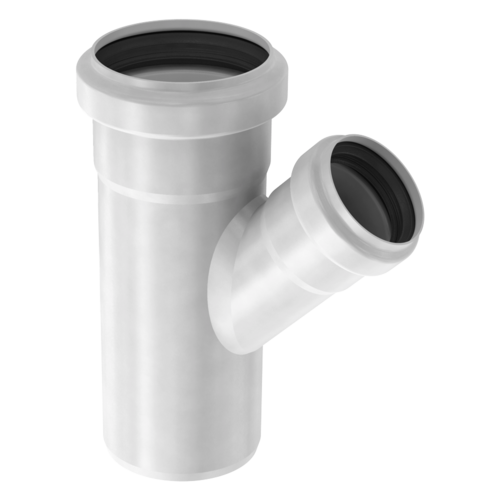

Single branch reduction 45°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

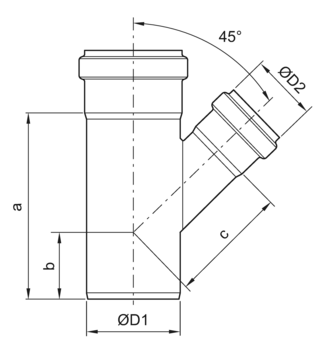

Nominal pipe sizeAngle αDimensionsMaterialSealWeightItem

number
Remember
D1D2abc
[mm][mm][mm][mm][mm][kg]
DN 50 / DN 4045°504011955711.4301EPDM0.30417406
1.4404EPDM0.30417408
DN 75 / DN 4045°754014456941.4301EPDM0.30417446
1.4404EPDM0.30417447
DN 75 / DN 5045°755014456941.4301EPDM0.30400661
Viton®0.30400662
1.4404EPDM0.30400663
Viton®0.30400664
DN 110 / DN 5045°11050147421191.4301EPDM0.50400665
Viton®0.50400666
1.4404EPDM0.50400667
Viton®0.50400668
DN 110 / DN 7545°11075182601351.4301EPDM1.00400669
Viton®1.00400670
1.4404EPDM1.00400671
Viton®1.00400672
DN 125 / DN 7545°12575200651411.4301EPDM1.12419764
Viton®1.12419765
1.4404EPDM1.12419766
Viton®1.12419767
DN 125 / DN 11045°125110250901601.4301EPDM1.10419768
Viton®1.10419769
1.4404EPDM1.10419770
Viton®1.10419771
DN 160 / DN 11045°1601103321191901.4301EPDM2.60400699
Viton®2.60400700
1.4404EPDM2.60400701
Viton®2.60400702
DN 200 / DN 16045°2001603591232501.4301EPDM4.60419423
Viton®4.60419424
1.4404EPDM4.60419425
Viton®4.60419426
DN 250 / DN 20045°2502004291753071.4404EPDM7.60417116
Viton®7.60417118
DN 315 / DN 25045°3152505131493821.4404EPDM14.00417211
Nominal sizeAngle αDimensionsSealMaterialWeightItem

number
D1D2abc
DN 50 / DN 4045°50 mm40 mm119 mm55 mm71 mmEPDM1.43010.30 kg417406
1.44040.30 kg417408
DN 75 / DN 4045°75 mm40 mm144 mm56 mm94 mmEPDM1.43010.30 kg417446
1.44040.30 kg417447
DN 75 / DN 5045°75 mm50 mm144 mm56 mm94 mmEPDM1.43010.30 kg400661
Viton®1.43010.30 kg400662
EPDM1.44040.30 kg400663
Viton®1.44040.30 kg400664
DN 110 / DN 5045°110 mm50 mm147 mm42 mm119 mmEPDM1.43010.50 kg400665
Viton®1.43010.50 kg400666
EPDM1.44040.50 kg400667
Viton®1.44040.50 kg400668
DN 110 / DN 7545°110 mm75 mm182 mm60 mm135 mmEPDM1.43011.00 kg400669
Viton®1.43011.00 kg400670
EPDM1.44041.00 kg400671
Viton®1.44041.00 kg400672
DN 125 / DN 7545°125 mm75 mm200 mm65 mm141 mmEPDM1.43011.12 kg419764
Viton®1.43011.12 kg419765
EPDM1.44041.12 kg419766
Viton®1.44041.12 kg419767
DN 125 / DN 11045°125 mm110 mm250 mm90 mm160 mmEPDM1.43011.10 kg419768
Viton®1.43011.10 kg419769
EPDM1.44041.10 kg419770
Viton®1.44041.10 kg419771
DN 160 / DN 11045°160 mm110 mm332 mm119 mm190 mmEPDM1.43012.60 kg400699
Viton®1.43012.60 kg400700
EPDM1.44042.60 kg400701
Viton®1.44042.60 kg400702
DN 200 / DN 16045°200 mm160 mm359 mm123 mm250 mmEPDM1.43014.60 kg419423
Viton®1.43014.60 kg419424
EPDM1.44044.60 kg419425
Viton®1.44044.60 kg419426
DN 250 / DN 20045°250 mm200 mm429 mm175 mm307 mmEPDM1.44047.60 kg417116
Viton®1.44047.60 kg417118
DN 315 / DN 25045°315 mm250 mm513 mm149 mm382 mmEPDM1.440414.00 kg417211
