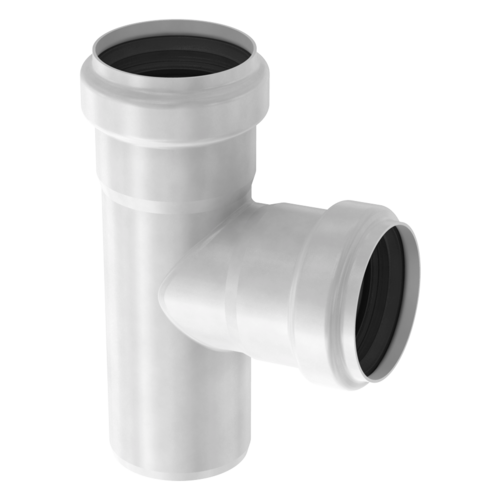

Single branch 87,5°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

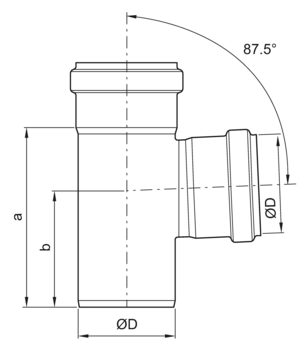

Nominal pipe sizeAngle αDimensionsMaterialSealWeightItem

number
Remember
Dab
[mm][mm][mm][kg]
DN 4087,5°40101691.4301EPDM0.30417362
1.4404EPDM0.30417368
DN 5087,5°50106711.4301EPDM0.3098732
Viton®0.3098733
1.4404EPDM0.3098782
Viton®0.3098783
DN 7587,5°75139901.4301EPDM0.5098734
Viton®0.5098735
1.4404EPDM0.5098784
Viton®0.5098785
DN 11087,5°1101831171.4301EPDM0.8098736
Viton®0.8098737
1.4404EPDM0.8098786
Viton®0.8098787
DN 12587,5°1252201351.4301EPDM0.91419748
Viton®0.91419749
1.4404EPDM0.91419750
Viton®0.91419751
DN 16087,5°1602881841.4301EPDM2.3098738
Viton®2.3098739
1.4404EPDM2.3098788
Viton®2.3098789
DN 20087,5°2003332061.4301EPDM4.40419419
Viton®4.40419420
1.4404EPDM4.40419421
Viton®4.40419422
DN 25087,5°2503632151.4404EPDM5.50417104
Viton®5.50417106
DN 31587,5°3154762811.4404EPDM14.80417208
Nominal sizeAngle αDimensionsSealMaterialWeightItem

number
Dab
DN 4087,5°40 mm101 mm69 mmEPDM1.43010.30 kg417362
1.44040.30 kg417368
DN 5087,5°50 mm106 mm71 mmEPDM1.43010.30 kg98732
Viton®1.43010.30 kg98733
EPDM1.44040.30 kg98782
Viton®1.44040.30 kg98783
DN 7587,5°75 mm139 mm90 mmEPDM1.43010.50 kg98734
Viton®1.43010.50 kg98735
EPDM1.44040.50 kg98784
Viton®1.44040.50 kg98785
DN 11087,5°110 mm183 mm117 mmEPDM1.43010.80 kg98736
Viton®1.43010.80 kg98737
EPDM1.44040.80 kg98786
Viton®1.44040.80 kg98787
DN 12587,5°125 mm220 mm135 mmEPDM1.43010.91 kg419748
Viton®1.43010.91 kg419749
EPDM1.44040.91 kg419750
Viton®1.44040.91 kg419751
DN 16087,5°160 mm288 mm184 mmEPDM1.43012.30 kg98738
Viton®1.43012.30 kg98739
EPDM1.44042.30 kg98788
Viton®1.44042.30 kg98789
DN 20087,5°200 mm333 mm206 mmEPDM1.43014.40 kg419419
Viton®1.43014.40 kg419420
EPDM1.44044.40 kg419421
Viton®1.44044.40 kg419422
DN 25087,5°250 mm363 mm215 mmEPDM1.44045.50 kg417104
Viton®1.44045.50 kg417106
DN 31587,5°315 mm476 mm281 mmEPDM1.440414.80 kg417208
