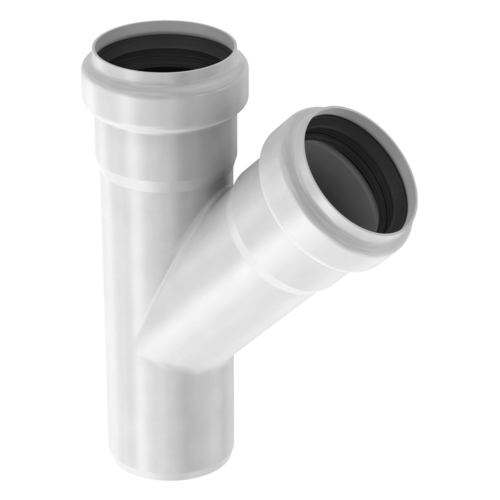

Single branch 45°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Resistant to thermal and dynamic shocks
Fast, reliable and cost-effective installation
Sagging-proof
Non-combustible
Rodent-proof

Product information

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

Order information

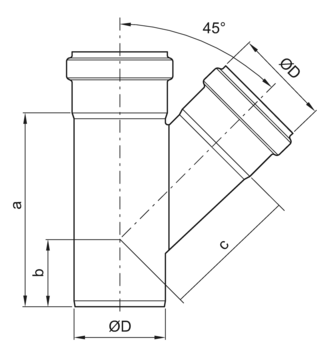

Nominal pipe size	Angle α	Dimensions				Material	Seal	Weight	Item number	Downloads	Remember
		D	a	b	c			Weight
		[mm]	[mm]	[mm]	[mm]			[kg]

DN 40	45°	40	118	58	63	1.4301	EPDM	0.30	417366
DN 40	45°	40	118	58	63	1.4404	EPDM	0.30	417372

DN 50	45°	50	128	57	76	1.4301	EPDM	0.30	98748
						1.4301	Viton®	0.30	98749
						1.4404	EPDM	0.30	98798
						1.4404	Viton®	0.30	98799

DN 75	45°	75	179	74	110	1.4301	EPDM	0.50	98800
						1.4301	Viton®	0.50	98801
						1.4404	EPDM	0.50	98850
						1.4404	Viton®	0.50	98851

DN 110	45°	110	233	88	149	1.4301	EPDM	1.00	98802
						1.4301	Viton®	1.00	98803
						1.4404	EPDM	1.00	98852
						1.4404	Viton®	1.00	98853

DN 125	45°	125	273	103	170	1.4301	EPDM	1.14	419760
						1.4301	Viton®	1.14	419761
						1.4404	EPDM	1.14	419762
						1.4404	Viton®	1.14	419763

DN 160	45°	160	332	119	222	1.4301	EPDM	2.60	98804
						1.4301	Viton®	2.60	98805
						1.4404	EPDM	2.60	98854
						1.4404	Viton®	2.60	98855

DN 200	45°	200	415	151	274	1.4301	EPDM	5.70	419427
						1.4301	Viton®	5.70	419428
						1.4404	EPDM	5.70	419429
						1.4404	Viton®	5.70	419430

DN 250	45°	250	513	172	336	1.4404	EPDM	9.20	417108
DN 250	45°	250	513	172	336	1.4404	Viton®	9.20	417110

DN 315	45°	315	616	195	521	1.4404	EPDM	20.60	417209

	Nominal size	Angle α	Dimensions				Seal	Material	Weight	Item number
	Nominal size	Angle α	D	a	b	c	Seal	Material	Weight	Item number

	DN 40	45°	40 mm	118 mm	58 mm	63 mm	EPDM	1.4301	0.30 kg	417366
	DN 40	45°	40 mm	118 mm	58 mm	63 mm	EPDM	1.4404	0.30 kg	417372

	DN 50	45°	50 mm	128 mm	57 mm	76 mm	EPDM	1.4301	0.30 kg	98748
							Viton®	1.4301	0.30 kg	98749
							EPDM	1.4404	0.30 kg	98798
							Viton®	1.4404	0.30 kg	98799

	DN 75	45°	75 mm	179 mm	74 mm	110 mm	EPDM	1.4301	0.50 kg	98800
							Viton®	1.4301	0.50 kg	98801
							EPDM	1.4404	0.50 kg	98850
							Viton®	1.4404	0.50 kg	98851

	DN 110	45°	110 mm	233 mm	88 mm	149 mm	EPDM	1.4301	1.00 kg	98802
							Viton®	1.4301	1.00 kg	98803
							EPDM	1.4404	1.00 kg	98852
							Viton®	1.4404	1.00 kg	98853

	DN 125	45°	125 mm	273 mm	103 mm	170 mm	EPDM	1.4301	1.14 kg	419760
							Viton®	1.4301	1.14 kg	419761
							EPDM	1.4404	1.14 kg	419762
							Viton®	1.4404	1.14 kg	419763

	DN 160	45°	160 mm	332 mm	119 mm	222 mm	EPDM	1.4301	2.60 kg	98804
							Viton®	1.4301	2.60 kg	98805
							EPDM	1.4404	2.60 kg	98854
							Viton®	1.4404	2.60 kg	98855

	DN 200	45°	200 mm	415 mm	151 mm	274 mm	EPDM	1.4301	5.70 kg	419427
							Viton®	1.4301	5.70 kg	419428
							EPDM	1.4404	5.70 kg	419429
							Viton®	1.4404	5.70 kg	419430

	DN 250	45°	250 mm	513 mm	172 mm	336 mm	EPDM	1.4404	9.20 kg	417108
	DN 250	45°	250 mm	513 mm	172 mm	336 mm	Viton®	1.4404	9.20 kg	417110

	DN 315	45°	315 mm	616 mm	195 mm	521 mm	EPDM	1.4404	20.60 kg	417209
