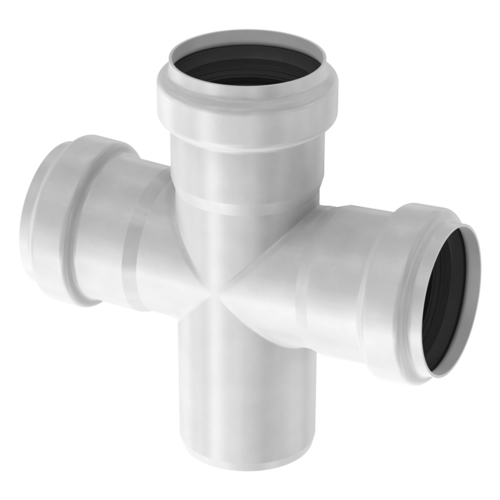

Double branch 87,5°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

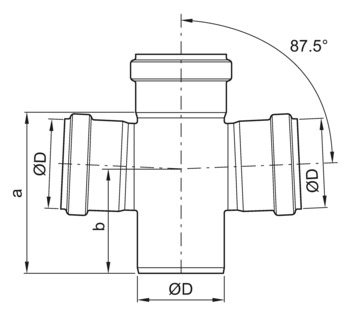

Nominal pipe sizeAngle αDimensionsMaterialSealWeightItem

number
Remember
Dab
[mm][mm][mm][kg]
DN 4087,5°40101691.4301EPDM0.30417364
1.4404EPDM0.30417370
DN 5087,5°50106711.4301EPDM0.3098740
Viton®0.3098741
1.4404EPDM0.3098790
Viton®0.3098791
DN 7587,5°75139901.4301EPDM0.5098742
Viton®0.5098743
1.4404EPDM0.5098792
Viton®0.5098793
DN 11087,5°1101831171.4301EPDM0.9098744
Viton®0.9098745
1.4404EPDM0.9098794
Viton®0.9098795
DN 16087,5°1602881841.4301EPDM2.7098746
Viton®2.7098747
1.4404EPDM2.7098796
Viton®2.7098797
Nominal sizeAngle αDimensionsSealMaterialWeightItem

number
Dab
DN 4087,5°40 mm101 mm69 mmEPDM1.43010.30 kg417364
1.44040.30 kg417370
DN 5087,5°50 mm106 mm71 mmEPDM1.43010.30 kg98740
Viton®1.43010.30 kg98741
EPDM1.44040.30 kg98790
Viton®1.44040.30 kg98791
DN 7587,5°75 mm139 mm90 mmEPDM1.43010.50 kg98742
Viton®1.43010.50 kg98743
EPDM1.44040.50 kg98792
Viton®1.44040.50 kg98793
DN 11087,5°110 mm183 mm117 mmEPDM1.43010.90 kg98744
Viton®1.43010.90 kg98745
EPDM1.44040.90 kg98794
Viton®1.44040.90 kg98795
DN 16087,5°160 mm288 mm184 mmEPDM1.43012.70 kg98746
Viton®1.43012.70 kg98747
EPDM1.44042.70 kg98796
Viton®1.44042.70 kg98797
