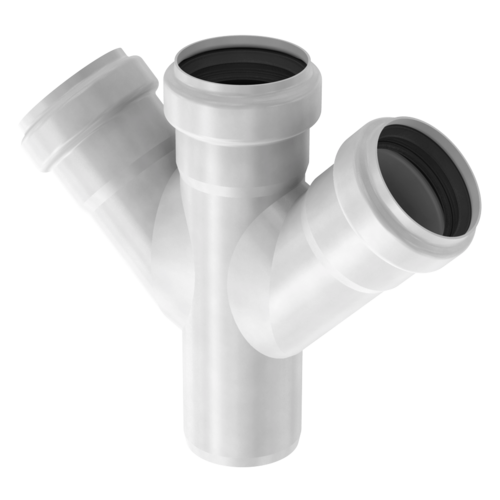

Double branch 45°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Resistant to thermal and dynamic shocks
Fast, reliable and cost-effective installation
Sagging-proof
Non-combustible
Rodent-proof

Product information

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

Order information

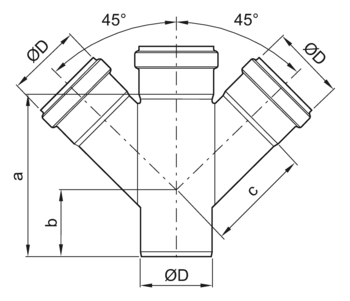

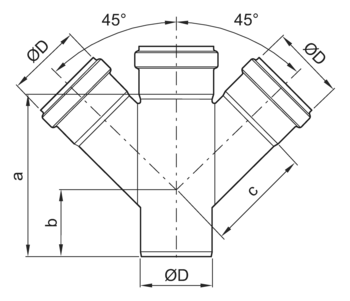

Nominal pipe size	Angle α	Dimensions				Material	Seal	Weight	Item number	Downloads	Remember
		D	a	b	c			Weight
		[mm]	[mm]	[mm]	[mm]			[kg]

DN 40	45°	40	118	58	63	1.4301	EPDM	0.40	417374
DN 40	45°	40	118	58	63	1.4404	EPDM	0.40	417378

DN 50	45°	50	128	57	76	1.4301	EPDM	0.40	98806
						1.4301	Viton®	0.40	98807
						1.4404	EPDM	0.40	98856
						1.4404	Viton®	0.40	98857

DN 75	45°	75	179	74	110	1.4301	EPDM	0.70	98808
						1.4301	Viton®	0.70	98809
						1.4404	EPDM	0.70	98858
						1.4404	Viton®	0.70	98859

DN 110	45°	110	233	88	149	1.4301	EPDM	1.20	98810
						1.4301	Viton®	1.20	98811
						1.4404	EPDM	1.20	98860
						1.4404	Viton®	1.20	98861

DN 160	45°	160	332	184	222	1.4301	EPDM	3.50	98812
						1.4301	Viton®	3.50	98813
						1.4404	EPDM	3.50	98862
						1.4404	Viton®	3.50	98863

DN 250	45°	250	509	172	336	1.4404	EPDM	11.00	417120
DN 250	45°	250	509	172	336	1.4404	Viton®	11.00	417122

DN 315	45°	315	616	195	521	1.4404	EPDM	29.70	417212

	Nominal size	Angle α	Dimensions				Seal	Material	Weight	Item number
	Nominal size	Angle α	D	a	b	c	Seal	Material	Weight	Item number

	DN 40	45°	40 mm	118 mm	58 mm	63 mm	EPDM	1.4301	0.40 kg	417374
	DN 40	45°	40 mm	118 mm	58 mm	63 mm	EPDM	1.4404	0.40 kg	417378

	DN 50	45°	50 mm	128 mm	57 mm	76 mm	EPDM	1.4301	0.40 kg	98806
							Viton®	1.4301	0.40 kg	98807
							EPDM	1.4404	0.40 kg	98856
							Viton®	1.4404	0.40 kg	98857

	DN 75	45°	75 mm	179 mm	74 mm	110 mm	EPDM	1.4301	0.70 kg	98808
							Viton®	1.4301	0.70 kg	98809
							EPDM	1.4404	0.70 kg	98858
							Viton®	1.4404	0.70 kg	98859

	DN 110	45°	110 mm	233 mm	88 mm	149 mm	EPDM	1.4301	1.20 kg	98810
							Viton®	1.4301	1.20 kg	98811
							EPDM	1.4404	1.20 kg	98860
							Viton®	1.4404	1.20 kg	98861

	DN 160	45°	160 mm	332 mm	184 mm	222 mm	EPDM	1.4301	3.50 kg	98812
							Viton®	1.4301	3.50 kg	98813
							EPDM	1.4404	3.50 kg	98862
							Viton®	1.4404	3.50 kg	98863

	DN 250	45°	250 mm	509 mm	172 mm	336 mm	EPDM	1.4404	11.00 kg	417120
	DN 250	45°	250 mm	509 mm	172 mm	336 mm	Viton®	1.4404	11.00 kg	417122

	DN 315	45°	315 mm	616 mm	195 mm	521 mm	EPDM	1.4404	29.70 kg	417212
