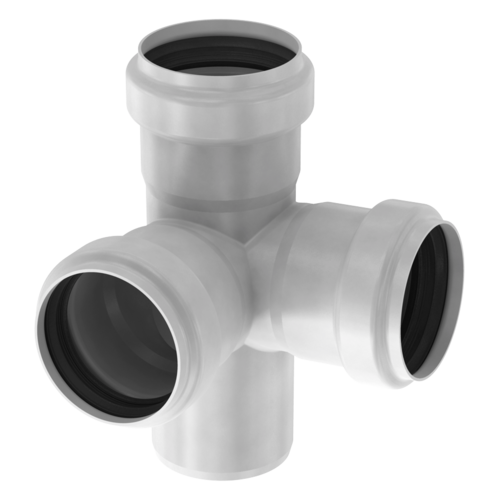

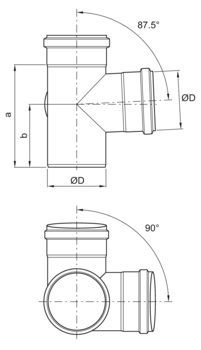

Corner branch 87,5°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation
Nominal pipe sizeDimensionsMaterialSealWeightItem

number
Remember
Dab
[mm][mm][mm][kg]
DN 4040101691.4301EPDM0.30417414
1.4404EPDM0.30417415
DN 5050106711.4301EPDM0.40419162
Viton®0.40419163
1.4404EPDM0.40419210
Viton®0.40419211
DN 7575139901.4301EPDM0.70419164
Viton®0.70419165
1.4404EPDM0.70419212
Viton®0.70419213
DN 1101101831171.4301EPDM1.10419166
Viton®1.10419167
1.4404EPDM1.10419214
Viton®1.10419215
DN 1251251.4301Viton®417054
1.4404Viton®417055
DN 1601602881841.4301EPDM2.90419168
Viton®2.90419169
1.4404EPDM2.90419216
Viton®2.90419217
Nominal sizeDimensionsSealMaterialWeightItem

number
Dab
DN 4040 mm101 mm69 mmEPDM1.43010.30 kg417414
1.44040.30 kg417415
DN 5050 mm106 mm71 mmEPDM1.43010.40 kg419162
Viton®1.43010.40 kg419163
EPDM1.44040.40 kg419210
Viton®1.44040.40 kg419211
DN 7575 mm139 mm90 mmEPDM1.43010.70 kg419164
Viton®1.43010.70 kg419165
EPDM1.44040.70 kg419212
Viton®1.44040.70 kg419213
DN 110110 mm183 mm117 mmEPDM1.43011.10 kg419166
Viton®1.43011.10 kg419167
EPDM1.44041.10 kg419214
Viton®1.44041.10 kg419215
DN 125125 mmViton®1.4301417054
1.4404417055
DN 160160 mm288 mm184 mmEPDM1.43012.90 kg419168
Viton®1.43012.90 kg419169
EPDM1.44042.90 kg419216
Viton®1.44042.90 kg419217
