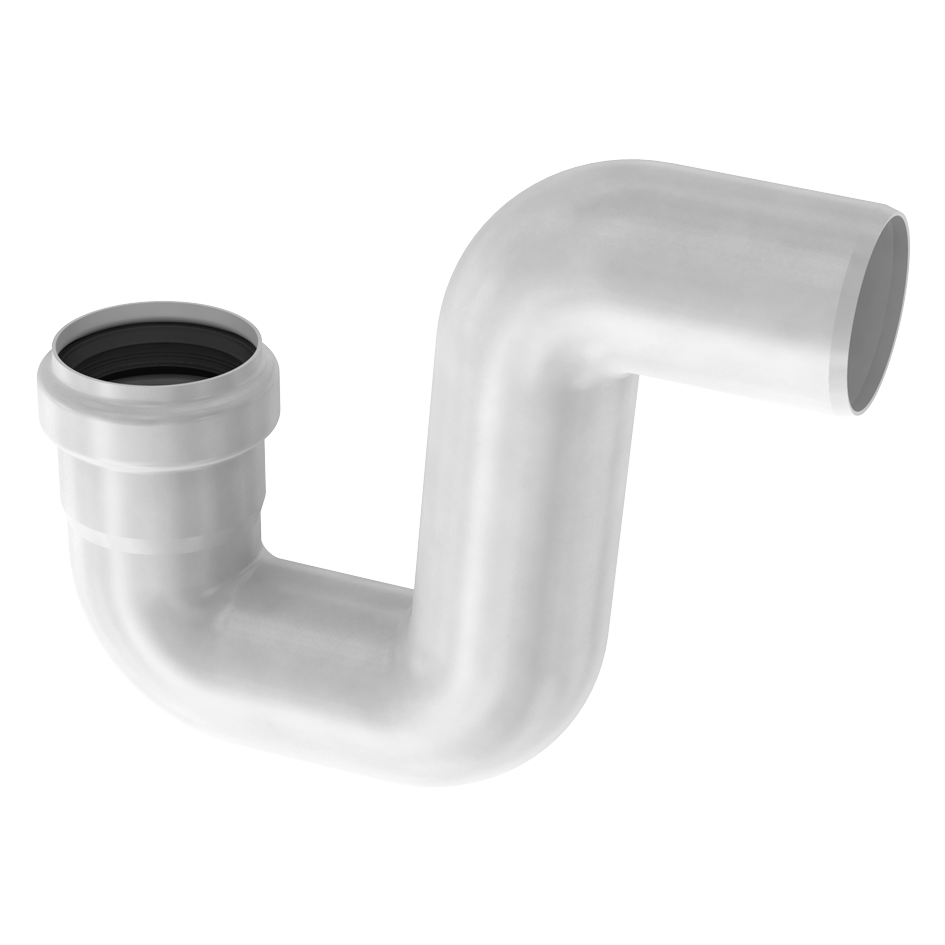

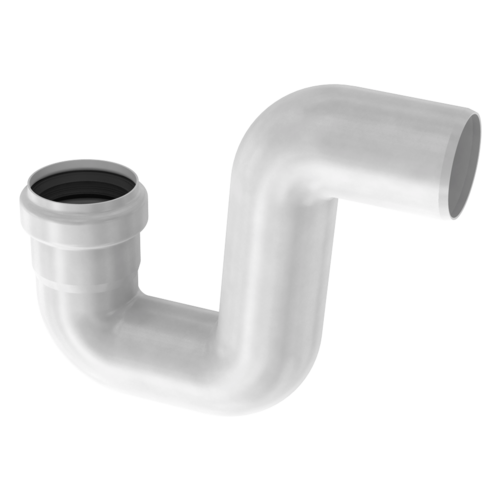

P-trap

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

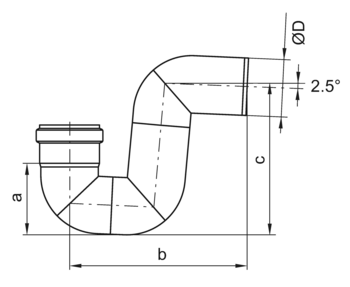

Nominal pipe sizeDimensionsMaterialSealWeightItem

number
Remember
Dabc
[mm][mm][mm][mm][kg]
DN 5050681871491.4301EPDM0.5098822
Viton®0.5098823
1.4404EPDM0.5098872
Viton®0.5098873
DN 7575942321931.4301EPDM0.7098824
Viton®0.7098825
1.4404EPDM0.7098874
Viton®0.7098875
DN 1101101323002541.4301EPDM1.3098826
Viton®1.3098827
1.4404EPDM1.3098876
Viton®1.3098877
DN 1601601904043471.4301EPDM3.3098828
Viton®3.3098829
1.4404EPDM3.3098878
Viton®3.3098879

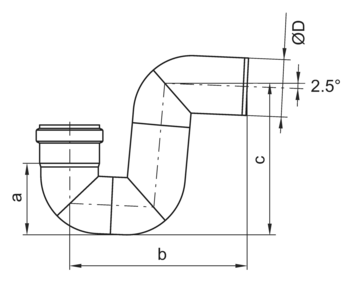

Nominal sizeDimensionsSealMaterialWeightItem

number
Dabc
DN 5050 mm68 mm187 mm149 mmEPDM1.43010.50 kg98822
Viton®1.43010.50 kg98823
EPDM1.44040.50 kg98872
Viton®1.44040.50 kg98873
DN 7575 mm94 mm232 mm193 mmEPDM1.43010.70 kg98824
Viton®1.43010.70 kg98825
EPDM1.44040.70 kg98874
Viton®1.44040.70 kg98875
DN 110110 mm132 mm300 mm254 mmEPDM1.43011.30 kg98826
Viton®1.43011.30 kg98827
EPDM1.44041.30 kg98876
Viton®1.44041.30 kg98877
DN 160160 mm190 mm404 mm347 mmEPDM1.43013.30 kg98828
Viton®1.43013.30 kg98829
EPDM1.44043.30 kg98878
Viton®1.44043.30 kg98879
