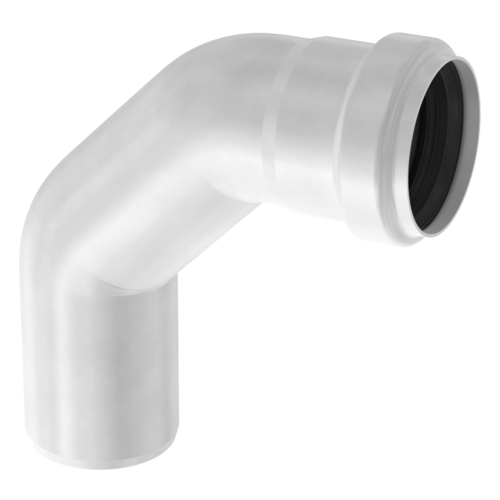

Long bend 87,5°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Resistant to thermal and dynamic shocks
Fast, reliable and cost-effective installation
Sagging-proof
Non-combustible
Rodent-proof

Product information

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

Order information

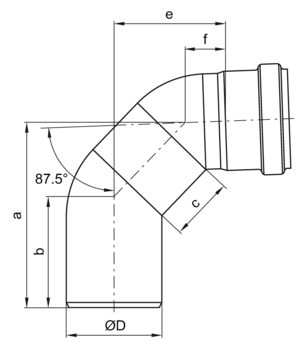

Nominal pipe size	Angle α	Dimensions						Material	Seal	Weight	Item number	Downloads	Remember
		D	a	b	c	e	f			Weight
		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]			[kg]

DN 40	87,5°	40	105	64	50	67	40	1.4301	EPDM	0.20	417340
DN 40	87,5°	40	105	64	50	67	40	1.4404	EPDM	0.20	417338

DN 50	87,5°	50	123	71	50	75	25	1.4301	EPDM	0.30	419146
								1.4301	Viton®	0.30	419147
								1.4404	EPDM	0.30	419000
								1.4404	Viton®	0.30	419001

DN 75	87,5°	75	146	87	50	88	32	1.4301	EPDM	0.50	419148
								1.4301	Viton®	0.50	419149
								1.4404	EPDM	0.50	419002
								1.4404	Viton®	0.50	419003

DN 110	87,5°	110	316	103	250	246	39	1.4301	EPDM	1.40	419150
								1.4301	Viton®	1.40	419151
								1.4404	EPDM	1.40	419004
								1.4404	Viton®	1.40	419005

DN 160	87,5°	160	360	126	250	270	92	1.4301	EPDM	2.20	419152
								1.4301	Viton®	2.20	419153
								1.4404	EPDM	2.20	419144
								1.4404	Viton®	2.20	419145

	Nominal size	Angle α	Dimensions						Seal	Material	Weight	Item number
	Nominal size	Angle α	D	a	b	c	e	f	Seal	Material	Weight	Item number

	DN 40	87,5°	40 mm	105 mm	64 mm	50 mm	67 mm	40 mm	EPDM	1.4301	0.20 kg	417340
	DN 40	87,5°	40 mm	105 mm	64 mm	50 mm	67 mm	40 mm	EPDM	1.4404	0.20 kg	417338

	DN 50	87,5°	50 mm	123 mm	71 mm	50 mm	75 mm	25 mm	EPDM	1.4301	0.30 kg	419146
									Viton®	1.4301	0.30 kg	419147
									EPDM	1.4404	0.30 kg	419000
									Viton®	1.4404	0.30 kg	419001

	DN 75	87,5°	75 mm	146 mm	87 mm	50 mm	88 mm	32 mm	EPDM	1.4301	0.50 kg	419148
									Viton®	1.4301	0.50 kg	419149
									EPDM	1.4404	0.50 kg	419002
									Viton®	1.4404	0.50 kg	419003

	DN 110	87,5°	110 mm	316 mm	103 mm	250 mm	246 mm	39 mm	EPDM	1.4301	1.40 kg	419150
									Viton®	1.4301	1.40 kg	419151
									EPDM	1.4404	1.40 kg	419004
									Viton®	1.4404	1.40 kg	419005

	DN 160	87,5°	160 mm	360 mm	126 mm	250 mm	270 mm	92 mm	EPDM	1.4301	2.20 kg	419152
									Viton®	1.4301	2.20 kg	419153
									EPDM	1.4404	2.20 kg	419144
									Viton®	1.4404	2.20 kg	419145
