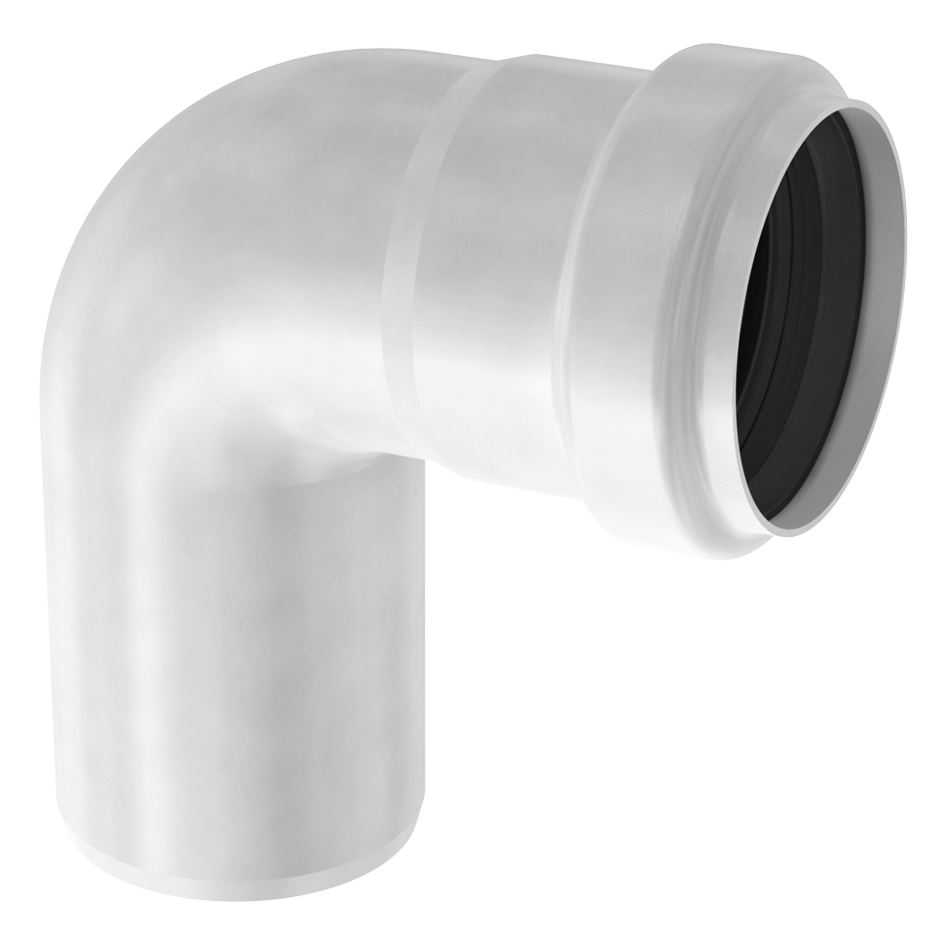

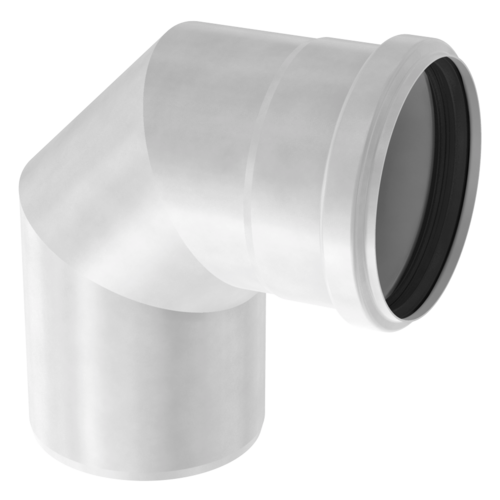

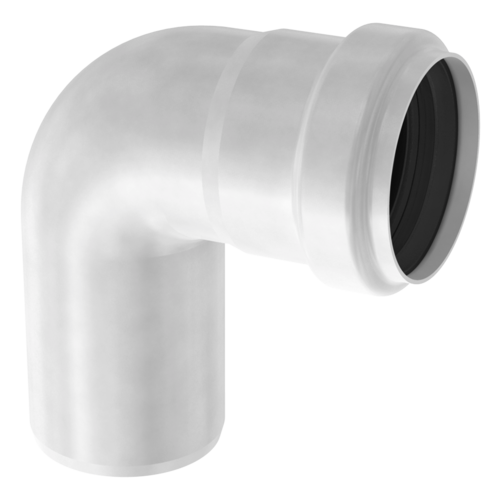

Bend 87,5°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation
Nominal pipe sizeAngle αDimensionsMaterialSealWeightItem

number
Remember
Dab
[mm][mm][mm][kg]
DN 4087,5°4079321.4301EPDM0.20417342
1.4404EPDM0.20417350
DN 5087,5°5086401.4301EPDM0.2098700
Viton®0.2098701
1.4404EPDM0.2098750
Viton®0.2098751
DN 7587,5°75107531.4301EPDM0.4098702
Viton®0.4098703
1.4404EPDM0.4098752
Viton®0.4098753
DN 11087,5°110134671.4301EPDM0.7098704
Viton®0.7098705
1.4404EPDM0.7098754
Viton®0.7098755
DN 12587,5°125161931.4301EPDM0.80419732
DN 12587,5°125161931.4301Viton®0.80419733
DN 12587,5°125161931.4404EPDM0.80419734
DN 12587,5°125161931.4404Viton®0.80419735
DN 16087,5°1601811051.4301EPDM1.7098706
Viton®1.7098707
1.4404EPDM1.7098756
Viton®1.7098757
DN 20087,5°2002151291.4301EPDM3.90419411
DN 20087,5°2002151291.4301Viton®3.90419412
DN 20087,5°2002151291.4404EPDM3.90419413
DN 20087,5°2002151291.4404Viton®3.90419414
DN 25087,5°2502971981.4404EPDM5.10417088
DN 25087,5°2502971981.4404Viton®5.10417090
DN 31587,5°3153932861.4404EPDM12.80417204
Nominal sizeAngle αDimensionsSealMaterialWeightItem

number
Dab
DN 4087,5°40 mm79 mm32 mmEPDM1.43010.20 kg417342
1.44040.20 kg417350
DN 5087,5°50 mm86 mm40 mmEPDM1.43010.20 kg98700
Viton®1.43010.20 kg98701
EPDM1.44040.20 kg98750
Viton®1.44040.20 kg98751
DN 7587,5°75 mm107 mm53 mmEPDM1.43010.40 kg98702
Viton®1.43010.40 kg98703
EPDM1.44040.40 kg98752
Viton®1.44040.40 kg98753
DN 11087,5°110 mm134 mm67 mmEPDM1.43010.70 kg98704
Viton®1.43010.70 kg98705
EPDM1.44040.70 kg98754
Viton®1.44040.70 kg98755
DN 12587,5°125 mm161 mm93 mmEPDM1.43010.80 kg419732
DN 12587,5°125 mm161 mm93 mmViton®1.43010.80 kg419733
DN 12587,5°125 mm161 mm93 mmEPDM1.44040.80 kg419734
DN 12587,5°125 mm161 mm93 mmViton®1.44040.80 kg419735
DN 16087,5°160 mm181 mm105 mmEPDM1.43011.70 kg98706
Viton®1.43011.70 kg98707
EPDM1.44041.70 kg98756
Viton®1.44041.70 kg98757
DN 20087,5°200 mm215 mm129 mmEPDM1.43013.90 kg419411
DN 20087,5°200 mm215 mm129 mmViton®1.43013.90 kg419412
DN 20087,5°200 mm215 mm129 mmEPDM1.44043.90 kg419413
DN 20087,5°200 mm215 mm129 mmViton®1.44043.90 kg419414
DN 25087,5°250 mm297 mm198 mmEPDM1.44045.10 kg417088
DN 25087,5°250 mm297 mm198 mmViton®1.44045.10 kg417090
DN 31587,5°315 mm393 mm286 mmEPDM1.440412.80 kg417204
