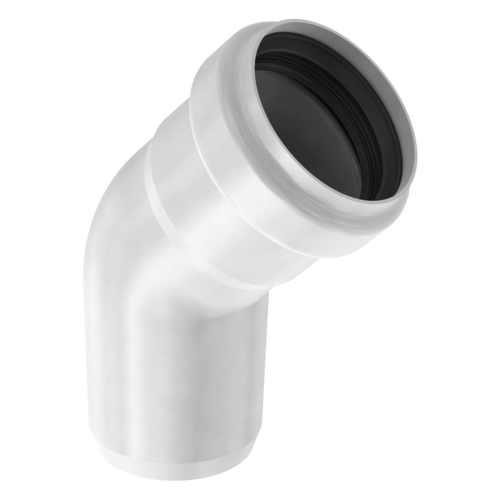

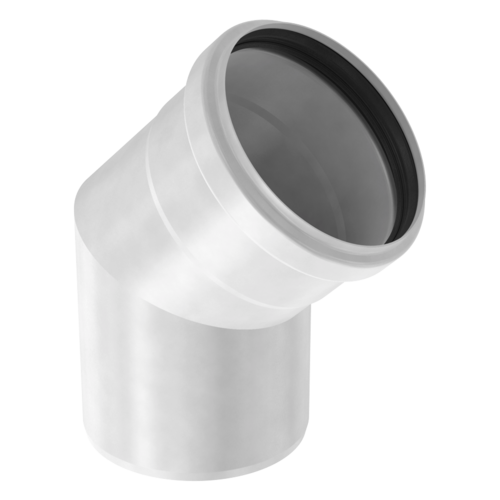

Bend 45°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Resistant to thermal and dynamic shocks
Fast, reliable and cost-effective installation
Sagging-proof
Non-combustible
Rodent-proof

Contact

Downloads

Product information

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

Order information

Nominal pipe size	Angle α	Dimensions			Material	Seal	Weight	Item number
		D	a	b			Weight
		[mm]	[mm]	[mm]			[kg]

DN 40	45°	40	58	21	1.4301	EPDM	0.20	417344
DN 40	45°	40	58	21	1.4404	EPDM	0.20	417352

DN 50	45°	50	62	24	1.4301	EPDM	0.20	98708
DN 50	45°	50	62	24	1.4301	Viton®	0.20	98709
DN 50	45°	50	62	24	1.4404	EPDM	0.20	98758
DN 50	45°	50	62	24	1.4404	Viton®	0.20	98759

DN 75	45°	75	76	32	1.4301	EPDM	0.30	98710
DN 75	45°	75	76	32	1.4301	Viton®	0.30	98711
DN 75	45°	75	76	32	1.4404	EPDM	0.30	98760
DN 75	45°	75	76	32	1.4404	Viton®	0.30	98761

DN 110	45°	110	93	42	1.4301	EPDM	0.50	98712
DN 110	45°	110	93	42	1.4301	Viton®	0.50	98713
DN 110	45°	110	93	42	1.4404	EPDM	0.50	98762
DN 110	45°	110	93	42	1.4404	Viton®	0.50	98763

DN 125	45°	125	110	50	1.4301	EPDM	0.60	419736
DN 125	45°	125	110	50	1.4301	Viton®	0.60	419737
DN 125	45°	125	110	50	1.4404	EPDM	0.60	419738
DN 125	45°	125	110	50	1.4404	Viton®	0.60	419739

DN 160	45°	160	131	55	1.4301	EPDM	1.30	98714
DN 160	45°	160	131	55	1.4301	Viton®	1.30	98715
DN 160	45°	160	131	55	1.4404	EPDM	1.30	98764
DN 160	45°	160	131	55	1.4404	Viton®	1.30	98765

DN 200	45°	200	152	60	1.4301	EPDM	2.70	419407
DN 200	45°	200	152	60	1.4301	Viton®	2.70	419408
DN 200	45°	200	152	60	1.4404	EPDM	2.70	419409
DN 200	45°	200	152	60	1.4404	Viton®	2.70	419410

DN 250	45°	250	177	76	1.4404	EPDM	4.10	417092
DN 250	45°	250	177	76	1.4404	Viton®	4.10	417094

DN 315	45°	315	199	91	1.4404	EPDM	7.20	417205

Nominal size	Angle α	Dimensions			Seal	Material	Weight	Item number
Nominal size	Angle α	D	a	b	Seal	Material	Weight	Item number

DN 40	45°	40 mm	58 mm	21 mm	EPDM	1.4301	0.20 kg	417344
DN 40	45°	40 mm	58 mm	21 mm	EPDM	1.4404	0.20 kg	417352

DN 50	45°	50 mm	62 mm	24 mm	EPDM	1.4301	0.20 kg	98708
DN 50	45°	50 mm	62 mm	24 mm	Viton®	1.4301	0.20 kg	98709
DN 50	45°	50 mm	62 mm	24 mm	EPDM	1.4404	0.20 kg	98758
DN 50	45°	50 mm	62 mm	24 mm	Viton®	1.4404	0.20 kg	98759

DN 75	45°	75 mm	76 mm	32 mm	EPDM	1.4301	0.30 kg	98710
DN 75	45°	75 mm	76 mm	32 mm	Viton®	1.4301	0.30 kg	98711
DN 75	45°	75 mm	76 mm	32 mm	EPDM	1.4404	0.30 kg	98760
DN 75	45°	75 mm	76 mm	32 mm	Viton®	1.4404	0.30 kg	98761

DN 110	45°	110 mm	93 mm	42 mm	EPDM	1.4301	0.50 kg	98712
DN 110	45°	110 mm	93 mm	42 mm	Viton®	1.4301	0.50 kg	98713
DN 110	45°	110 mm	93 mm	42 mm	EPDM	1.4404	0.50 kg	98762
DN 110	45°	110 mm	93 mm	42 mm	Viton®	1.4404	0.50 kg	98763

DN 125	45°	125 mm	110 mm	50 mm	EPDM	1.4301	0.60 kg	419736
DN 125	45°	125 mm	110 mm	50 mm	Viton®	1.4301	0.60 kg	419737
DN 125	45°	125 mm	110 mm	50 mm	EPDM	1.4404	0.60 kg	419738
DN 125	45°	125 mm	110 mm	50 mm	Viton®	1.4404	0.60 kg	419739

DN 160	45°	160 mm	131 mm	55 mm	EPDM	1.4301	1.30 kg	98714
DN 160	45°	160 mm	131 mm	55 mm	Viton®	1.4301	1.30 kg	98715
DN 160	45°	160 mm	131 mm	55 mm	EPDM	1.4404	1.30 kg	98764
DN 160	45°	160 mm	131 mm	55 mm	Viton®	1.4404	1.30 kg	98765

DN 200	45°	200 mm	152 mm	60 mm	EPDM	1.4301	2.70 kg	419407
DN 200	45°	200 mm	152 mm	60 mm	Viton®	1.4301	2.70 kg	419408
DN 200	45°	200 mm	152 mm	60 mm	EPDM	1.4404	2.70 kg	419409
DN 200	45°	200 mm	152 mm	60 mm	Viton®	1.4404	2.70 kg	419410

DN 250	45°	250 mm	177 mm	76 mm	EPDM	1.4404	4.10 kg	417092
DN 250	45°	250 mm	177 mm	76 mm	Viton®	1.4404	4.10 kg	417094

DN 315	45°	315 mm	199 mm	91 mm	EPDM	1.4404	7.20 kg	417205
