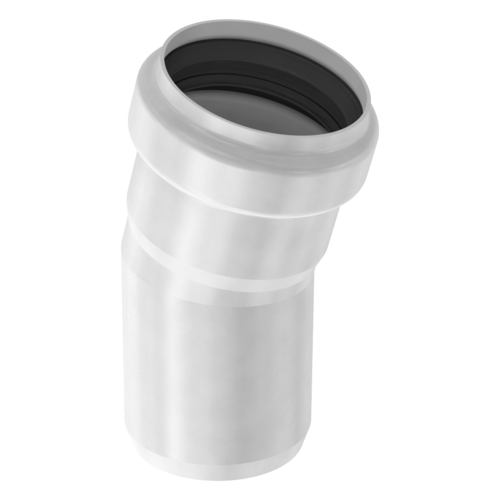

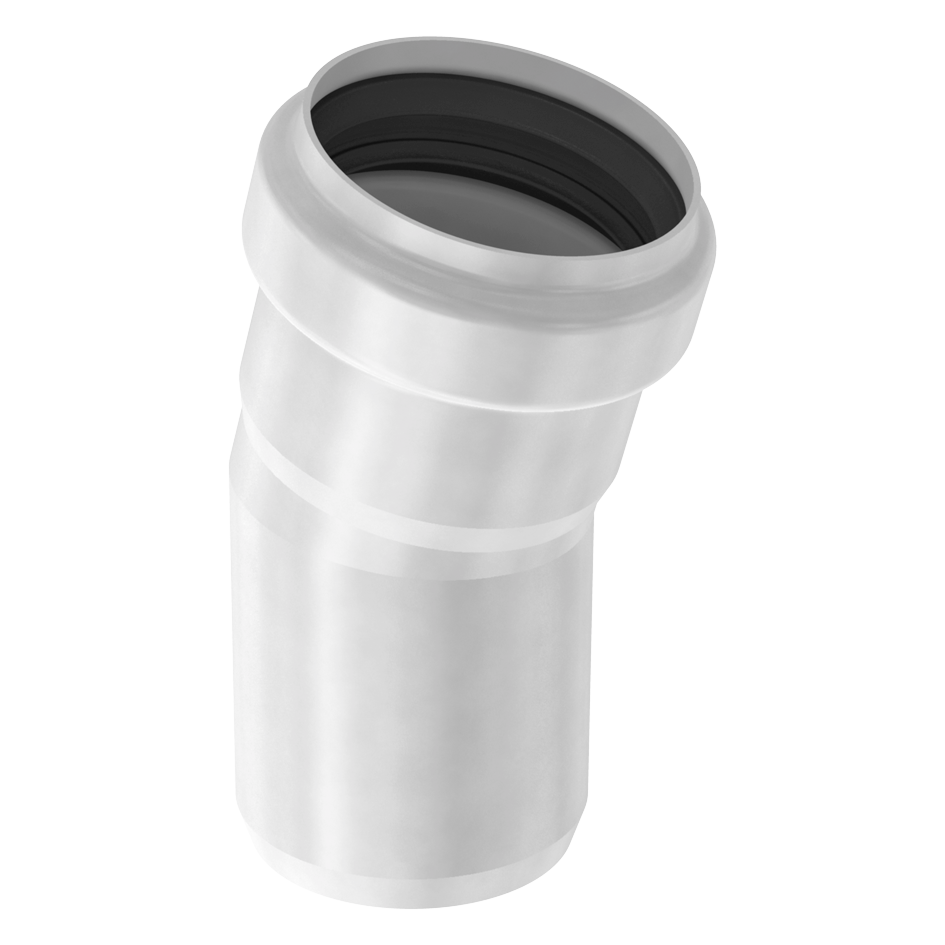

Bend 15°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Resistant to thermal and dynamic shocks
Fast, reliable and cost-effective installation
Sagging-proof
Non-combustible
Rodent-proof

Product information

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

Order information

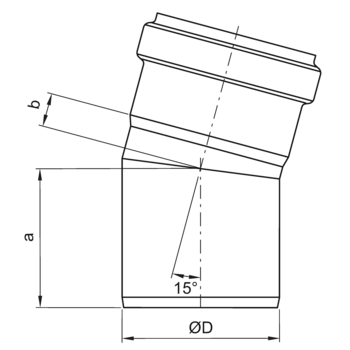

Nominal pipe size	Angle α	Dimensions			Material	Seal	Weight	Item number	Downloads	Remember
		D	a	b			Weight
		[mm]	[mm]	[mm]			[kg]

DN 40	15°	40	53	11	1.4301	EPDM	0.10	417348
DN 40	15°	40	53	11	1.4404	EPDM	0.10	417356

DN 50	15°	50	54	12	1.4301	EPDM	0.10	98724
					1.4301	Viton®	0.10	98725
					1.4404	EPDM	0.10	98774
					1.4404	Viton®	0.10	98775

DN 75	15°	75	66	16	1.4301	EPDM	0.30	98726
					1.4301	Viton®	0.30	98727
					1.4404	EPDM	0.30	98776
					1.4404	Viton®	0.30	98777

DN 110	15°	110	78	17	1.4301	EPDM	0.40	98728
					1.4301	Viton®	0.40	98729
					1.4404	EPDM	0.40	98778
					1.4404	Viton®	0.40	98779

DN 125	15°	125	84	19	1.4301	EPDM	0.50	419744
					1.4301	Viton®	0.50	419745
					1.4404	EPDM	0.50	419746
					1.4404	Viton®	0.50	419747

DN 160	15°	160	99	29	1.4301	EPDM	1.00	98730
					1.4301	Viton®	1.00	98731
					1.4404	EPDM	1.00	98780
					1.4404	Viton®	1.00	98781

DN 200	15°	200	123	31	1.4301	EPDM	1.90	419399
					1.4301	Viton®	1.90	419400
					1.4404	EPDM	1.90	419401
					1.4404	Viton®	1.90	419402

DN 250	15°	250	136	40	1.4404	EPDM	2.50	417100
DN 250	15°	250	136	40	1.4404	Viton®	2.50	417102

DN 315	15°	315	151	46	1.4404	EPDM	2.50	417207

	Nominal size	Angle α	Dimensions			Seal	Material	Weight	Item number
	Nominal size	Angle α	D	a	b	Seal	Material	Weight	Item number

	DN 40	15°	40 mm	53 mm	11 mm	EPDM	1.4301	0.10 kg	417348
	DN 40	15°	40 mm	53 mm	11 mm	EPDM	1.4404	0.10 kg	417356

	DN 50	15°	50 mm	54 mm	12 mm	EPDM	1.4301	0.10 kg	98724
						Viton®	1.4301	0.10 kg	98725
						EPDM	1.4404	0.10 kg	98774
						Viton®	1.4404	0.10 kg	98775

	DN 75	15°	75 mm	66 mm	16 mm	EPDM	1.4301	0.30 kg	98726
						Viton®	1.4301	0.30 kg	98727
						EPDM	1.4404	0.30 kg	98776
						Viton®	1.4404	0.30 kg	98777

	DN 110	15°	110 mm	78 mm	17 mm	EPDM	1.4301	0.40 kg	98728
						Viton®	1.4301	0.40 kg	98729
						EPDM	1.4404	0.40 kg	98778
						Viton®	1.4404	0.40 kg	98779

	DN 125	15°	125 mm	84 mm	19 mm	EPDM	1.4301	0.50 kg	419744
						Viton®	1.4301	0.50 kg	419745
						EPDM	1.4404	0.50 kg	419746
						Viton®	1.4404	0.50 kg	419747

	DN 160	15°	160 mm	99 mm	29 mm	EPDM	1.4301	1.00 kg	98730
						Viton®	1.4301	1.00 kg	98731
						EPDM	1.4404	1.00 kg	98780
						Viton®	1.4404	1.00 kg	98781

	DN 200	15°	200 mm	123 mm	31 mm	EPDM	1.4301	1.90 kg	419399
						Viton®	1.4301	1.90 kg	419400
						EPDM	1.4404	1.90 kg	419401
						Viton®	1.4404	1.90 kg	419402

	DN 250	15°	250 mm	136 mm	40 mm	EPDM	1.4404	2.50 kg	417100
	DN 250	15°	250 mm	136 mm	40 mm	Viton®	1.4404	2.50 kg	417102

	DN 315	15°	315 mm	151 mm	46 mm	EPDM	1.4404	2.50 kg	417207
