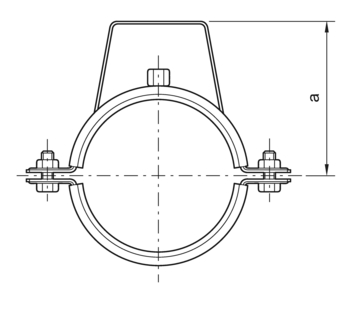

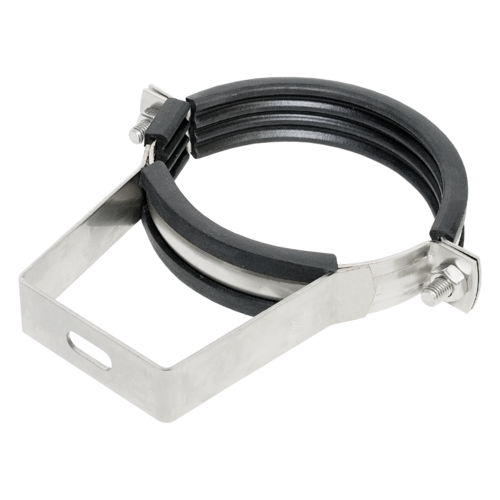

Support bracket with rubber infill and stirrup

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation
Nominal pipe sizeUsed withDimensionsMaterialWeightItem

number
Remember
Da
[mm][mm][kg]
DN 40DN 4040Galvanised steel417360
1.4404417358
DN 50DN 505056Galvanised steel0.18400541
1.44040.18400537
DN 75DN 757580Galvanised steel0.28400542
1.44040.28400538
DN 110DN 110110116Galvanised steel0.41400543
1.44040.41400539
DN 160DN 160160166Galvanised steel0.48400544
1.44040.48400540
Nominal sizeUsed withDimensionsMaterialWeightItem

number
Da
DN 40DN 4040 mmGalvanised steel417360
1.4404417358
DN 50DN 5050 mm56 mmGalvanised steel0.18 kg400541
1.44040.18 kg400537
DN 75DN 7575 mm80 mmGalvanised steel0.28 kg400542
1.44040.28 kg400538
DN 110DN 110110 mm116 mmGalvanised steel0.41 kg400543
1.44040.41 kg400539
DN 160DN 160160 mm166 mmGalvanised steel0.48 kg400544
1.44040.48 kg400540
