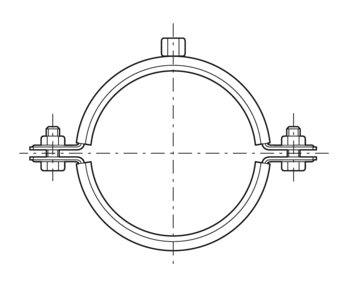

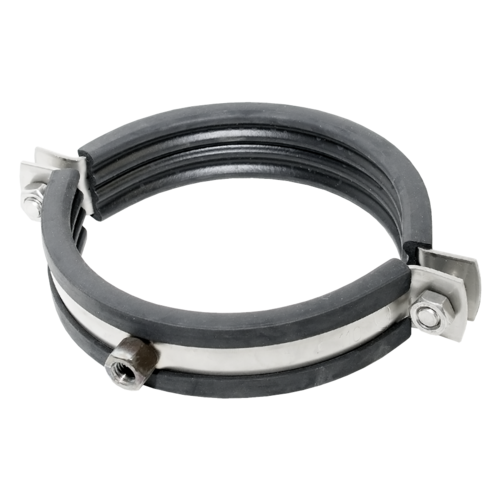

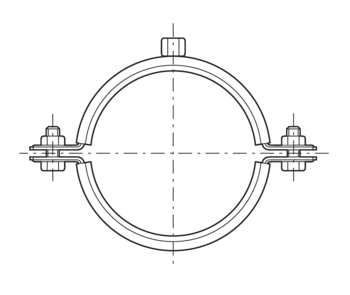

Support bracket with rubber infill

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation
Nominal pipe sizeUsed withDimensionsMaterialWeightItem

number
Remember
D
[mm][kg]
DN 40 / M8DN 4040Galvanised steel0.12417434
1.44040.12417359
DN 50 / M8DN 5050Galvanised steel0.14400533
1.44040.23400529
DN 75 / M8/M10DN 7575Galvanised steel0.23400534
DN 75 / M8DN 75751.44040.33400530
DN 110 / M8/M10DN 110110Galvanised steel0.33400535
DN 110 / M8DN 1101101.44040.36400531
DN 125 / M8/M10DN 125125Galvanised steel0.36419854
DN 125 / M8DN 1251251.44040.39419855
DN 160 / M8/M10DN 160160Galvanised steel0.39400536
DN 160 / M8DN 1601601.44040.44400532
DN 200 / M8/M10DN 200200Galvanised steel0.14419451
DN 200 / M8DN 2002001.44040.60419675
DN 250 / M8DN 2502501.44040.60417149
DN 315 / M12DN 3153151.44041.00417224
Nominal sizeUsed withDimensionsMaterialWeightItem

number
D
DN 40 / M8DN 4040 mmGalvanised steel0.12 kg417434
1.44040.12 kg417359
DN 50 / M8DN 5050 mmGalvanised steel0.14 kg400533
1.44040.23 kg400529
DN 75 / M8/M10DN 7575 mmGalvanised steel0.23 kg400534
DN 75 / M8DN 7575 mm1.44040.33 kg400530
DN 110 / M8/M10DN 110110 mmGalvanised steel0.33 kg400535
DN 110 / M8DN 110110 mm1.44040.36 kg400531
DN 125 / M8/M10DN 125125 mmGalvanised steel0.36 kg419854
DN 125 / M8DN 125125 mm1.44040.39 kg419855
DN 160 / M8/M10DN 160160 mmGalvanised steel0.39 kg400536
DN 160 / M8DN 160160 mm1.44040.44 kg400532
DN 200 / M8/M10DN 200200 mmGalvanised steel0.14 kg419451
DN 200 / M8DN 200200 mm1.44040.60 kg419675
DN 250 / M8DN 250250 mm1.44040.60 kg417149
DN 315 / M12DN 315315 mm1.44041.00 kg417224
