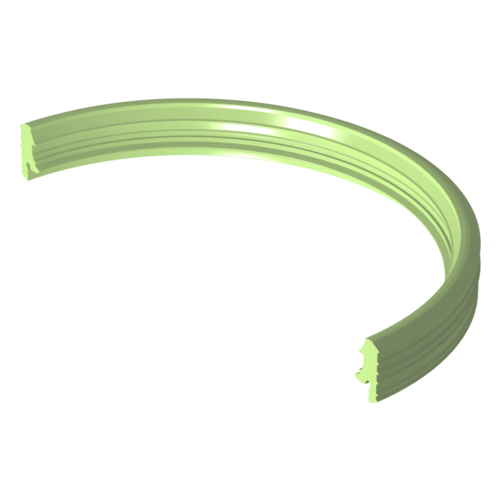

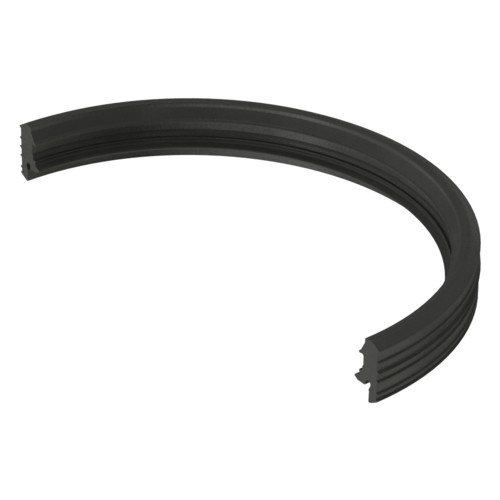

ACO Pipe sealing rings

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions

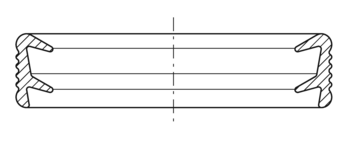

  • Double lip seal push-fit connection for easy and reliable installation
Nominal pipe sizeUsed withDimensionsMaterialWeightItem

number
Remember
D
[mm][kg]
DN 40DN 4040EPDM0.01417400
NBR0.01417401
Viton®0.01417538
DN 50DN 5050EPDM0.0198400
NBR0.01417037
Viton®0.0198404
DN 75DN 7575EPDM0.0298401
NBR0.02417038
Viton®0.0298405
DN 110DN 110110EPDM0.0598402
NBR0.05417039
Viton®0.0598406
DN 125DN 125125EPDM0.06419453
NBR0.06417041
Viton®0.06419454
DN 160DN 160160EPDM0.0898403
NBR0.08417040
Viton®0.0898407
DN 200DN 200200EPDM0.1098433
NBR0.10417042
Viton®0.1098437
DN 250DN 250250EPDM0.12417146
NBR0.12417148
Viton®0.12417147
DN 315DN 315315EPDM0.30417222
NBR0.30417223
Viton®0.30417506
Nominal sizeUsed withDimensionsMaterialWeightItem

number
D
DN 40DN 4040 mmEPDM0.01 kg417400
NBR0.01 kg417401
Viton®0.01 kg417538
DN 50DN 5050 mmEPDM0.01 kg98400
NBR0.01 kg417037
Viton®0.01 kg98404
DN 75DN 7575 mmEPDM0.02 kg98401
NBR0.02 kg417038
Viton®0.02 kg98405
DN 110DN 110110 mmEPDM0.05 kg98402
NBR0.05 kg417039
Viton®0.05 kg98406
DN 125DN 125125 mmEPDM0.06 kg419453
NBR0.06 kg417041
Viton®0.06 kg419454
DN 160DN 160160 mmEPDM0.08 kg98403
NBR0.08 kg417040
Viton®0.08 kg98407
DN 200DN 200200 mmEPDM0.10 kg98433
NBR0.10 kg417042
Viton®0.10 kg98437
DN 250DN 250250 mmEPDM0.12 kg417146
NBR0.12 kg417148
Viton®0.12 kg417147
DN 315DN 315315 mmEPDM0.30 kg417222
NBR0.30 kg417223
Viton®0.30 kg417506
