Flat roof ducts for room aeration - with rain cap

Product benefits

  • Can be shortened or lengthened
  • Possible for warm roofs with insulation up to 300 mm thick without extension
Contact
Downloads

Product information

  • Stainless steel, material grade 304
  • With heat insulation (building materials class A1)

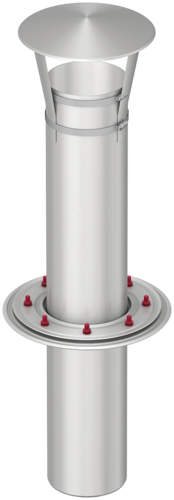

  • With 1 or 2 continuously height-adjustable clamping flanges

Number of flanges: 1

Nominal widthDimensionsWeightItem

number		Remember
dd2H1H2
[mm][mm][mm][mm][kg]
ImageDN 70733325063554.21470.00.00
DN 10010333250637051410.00.00
DN 12513333250637561420.00.00
DN 15015933250638071450.00.00

Number of flanges: 2

Nominal widthDimensionsWeightItem

number		Remember
dd1d2d3H1H2
[mm][mm][mm][mm][mm][mm][kg]
ImageDN 70731803323325063026.61470.20.00
DN 1001031803323325063027.81410.20.00
DN 1251332203323325063028.91420.20.00
DN 150159220332410506307101450.20.00
Nominal widthDimensionsWeightItem

number
dd1d2d3H1H2
ImageDN 7073 mm332 mm506 mm355 mm4.2 kg1470.00.00
ImageDN 100103 mm332 mm506 mm370 mm5 kg1410.00.00
ImageDN 125133 mm332 mm506 mm375 mm6 kg1420.00.00
ImageDN 150159 mm332 mm506 mm380 mm7 kg1450.00.00
ImageDN 7073 mm180 mm332 mm332 mm506 mm302 mm6.6 kg1470.20.00
ImageDN 100103 mm180 mm332 mm332 mm506 mm302 mm7.8 kg1410.20.00
ImageDN 125133 mm220 mm332 mm332 mm506 mm302 mm8.9 kg1420.20.00
ImageDN 150159 mm220 mm332 mm410 mm506 mm307 mm10 kg1450.20.00

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.2 kg
Item no.
0174.42.87

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • PVC-weich
  • Weight: 0.3 kg
Item no.
0174.42.92

Flange seal

Suitable for
  • Multiflex flat roof ducts
    • DN 150
Description
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.4 kg
Item no.
0174.42.88

Flange seal

Suitable for
  • Multiflex flat roof ducts
    • DN 150
Description
  • Thickness: 4 mm
  • PVC-weich
  • Weight: 0.4 kg
Item no.
0174.42.93

Casing bell

Suitable for
  • Multiflex flat roof ducts
Description
  • Made of polystyrene
  • DN 100
  • Weight: 0.1 kg
Item no.
0174.43.53

Casing bell

Suitable for
  • Multiflex flat roof ducts
Description
  • Made of polystyrene
  • DN 150
  • Weight: 0.1 kg
Item no.
0174.43.54

Trapezoidal panel

Suitable for
  • Multiflex flat roof ducts
Description
  • Made from galvanised steel
  • DN 100
  • Weight: 3.1 kg
Item no.
0174.43.17

Trapezoidal panel

Suitable for
  • Multiflex flat roof ducts
Description
  • Made from galvanised steel
  • DN 150
  • Weight: 3 kg
Item no.
0174.43.18
