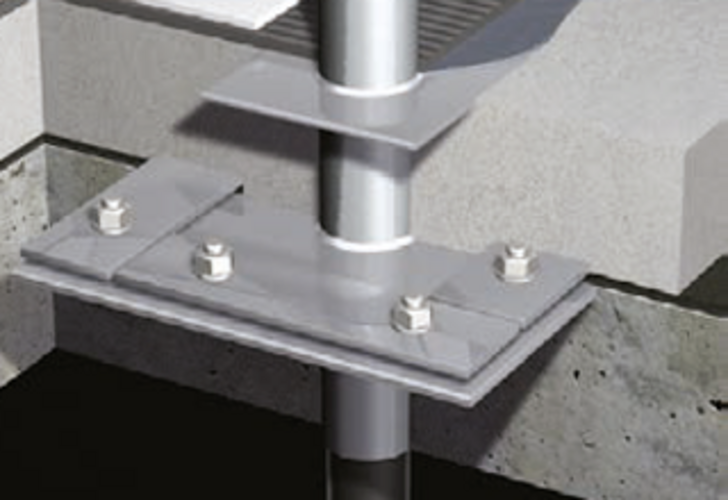

Ceiling ducts – 1 cladding tube

With 1 Sleeve Pipe 271057

Product benefits

Material: Stainless steel
- Building material class: A1
- Non-combustible
- No introduction of additional fire load

Product information

Stainless steel, material grade 304
For ceiling ducts
With clamping flange

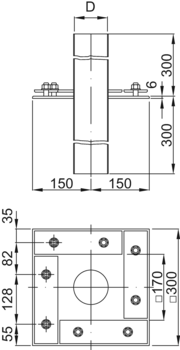

Base plate: 300 x 300 mm

Infobox

Note: Also available in stainless steel material grade 316 on request.

Note: Various sleeve pipes and other dimensions on request.

Order information

Diameter		Weight	Item number		Downloads	Remember
Outside	Inside	Weight
[mm]	[mm]	[kg]
57	53	9	9611.00.00	4
89	85	10	9610.10.00	4
140	136	11	9610.01.00	4

	Diameter		Weight	Item number
	Outside	Inside	Weight	Item number
	57 mm	53 mm	9 kg	9611.00.00
	89 mm	85 mm	10 kg	9610.10.00
	140 mm	136 mm	11 kg	9610.01.00
