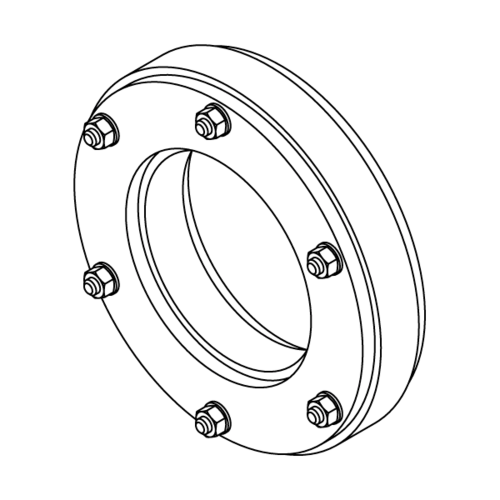

APLEX mono

Product benefits

  • Versatility and Compatibility: APLEX wall seals accommodate a broad range of perforating piping sizes, from 15 mm to 275 mm.
  • Durability and Resistance: Constructed from corrosion-proof yellow chromated steel and special rubber, the seals offer long-lasting performance.
  • Flexible Design Options: The seals offer design flexibility, allowing for precise location and dimension adjustments either before or after wall construction.
  • Ease of Installation: The seals can be conveniently installed using a plastic tube method during concrete works, simplifying the process.
  • Waterproof and Pressure-Resistant: APLEX provides tailored sealing solutions that are waterproof and specifically designed for areas with pressure water activity.

Product information

  • Massive zinc flange
  • Nuts and washers from stainless steel
  • Screws with strength of 8.8 screwed and welded to the flange
  • Wide sealing, material EPDM with temperature resistance up to 130°C
  • Marking of each product by the hole diameter and the tube diameter range

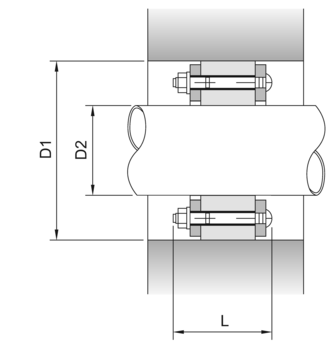

D1D2LSealWeightItem

number
Remember
[mm][mm][mm][kg]
5015 – 1853EPDM0.1070704
5019 – 2253EPDM0.1770705
8025 – 2853EPDM0.5570706
8032 – 3553EPDM0.5470707
8036 – 4053EPDM0.5370708
10041 – 4453EPDM0.7270709
10047 – 5153EPDM0.7170710
10052 – 5653EPDM0.6970711
12557 – 6153EPDM1.3370712
12562 – 6553EPDM1.3070713
12573 – 7653EPDM1.2770714
15078 – 8153EPDM1.7070715
15088 – 9153EPDM1.6570716
15098 – 10253EPDM1.6070717
200108 – 11253EPDM2.7870718
200114 – 11853EPDM2.7270719
200123 – 12653EPDM2.6770720
200128 – 13253EPDM2.6270721
200133 – 13653EPDM2.5970722
200137 – 14153EPDM2.5670723
250142 – 14653EPDM4.4670724
250158 – 16253EPDM4.3570725
250165 – 17053EPDM4.2370726
250177 – 18153EPDM4.1172692
300200 – 20453EPDM5.5970727
300209 – 21253EPDM5.4970728
300218 – 22153EPDM5.4070729
300222 – 22553EPDM5.3170730
350248 – 25253EPDM7.0072956
350272 – 27553EPDM6.9072957

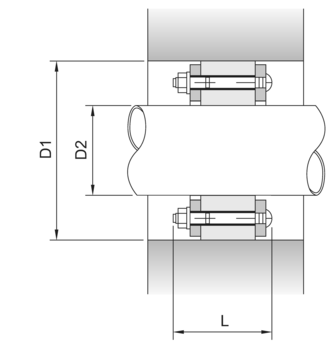

D1D2LSealWeightItem

number
50 mm15 – 18 mm53 mmEPDM0.10 kg70704
50 mm19 – 22 mm53 mmEPDM0.17 kg70705
80 mm25 – 28 mm53 mmEPDM0.55 kg70706
80 mm32 – 35 mm53 mmEPDM0.54 kg70707
80 mm36 – 40 mm53 mmEPDM0.53 kg70708
100 mm41 – 44 mm53 mmEPDM0.72 kg70709
100 mm47 – 51 mm53 mmEPDM0.71 kg70710
100 mm52 – 56 mm53 mmEPDM0.69 kg70711
125 mm57 – 61 mm53 mmEPDM1.33 kg70712
125 mm62 – 65 mm53 mmEPDM1.30 kg70713
125 mm73 – 76 mm53 mmEPDM1.27 kg70714
150 mm78 – 81 mm53 mmEPDM1.70 kg70715
150 mm88 – 91 mm53 mmEPDM1.65 kg70716
150 mm98 – 102 mm53 mmEPDM1.60 kg70717
200 mm108 – 112 mm53 mmEPDM2.78 kg70718
200 mm114 – 118 mm53 mmEPDM2.72 kg70719
200 mm123 – 126 mm53 mmEPDM2.67 kg70720
200 mm128 – 132 mm53 mmEPDM2.62 kg70721
200 mm133 – 136 mm53 mmEPDM2.59 kg70722
200 mm137 – 141 mm53 mmEPDM2.56 kg70723
250 mm142 – 146 mm53 mmEPDM4.46 kg70724
250 mm158 – 162 mm53 mmEPDM4.35 kg70725
250 mm165 – 170 mm53 mmEPDM4.23 kg70726
250 mm177 – 181 mm53 mmEPDM4.11 kg72692
300 mm200 – 204 mm53 mmEPDM5.59 kg70727
300 mm209 – 212 mm53 mmEPDM5.49 kg70728
300 mm218 – 221 mm53 mmEPDM5.40 kg70729
300 mm222 – 225 mm53 mmEPDM5.31 kg70730
350 mm248 – 252 mm53 mmEPDM7.00 kg72956
350 mm272 – 275 mm53 mmEPDM6.90 kg72957
