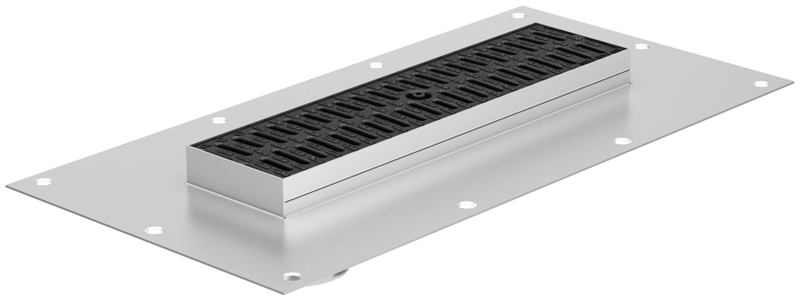

Parking deck drainage channels with connecting flange for mastic asphalt
Product benefits
- Variable lengths
- Flexible version
- Safety and permanent welded connection of the individual channel bodies for lengths >3 m
- Installation heights 35 mm and 70 mm; intermediate dimensions possible as an option
Product information
- Channel body made of stainless steel
- Lengths:
- Length up to 3 m
- Over 3 m Welding on the construction site
- Channel width 134 mm, optionally with composite grating or mesh grating
- Channel width 174 mm, optionally with slotted grating or mesh grating
- Load classes:
- Stainless steel slotted grating: M125 after DIN EN 1253-2

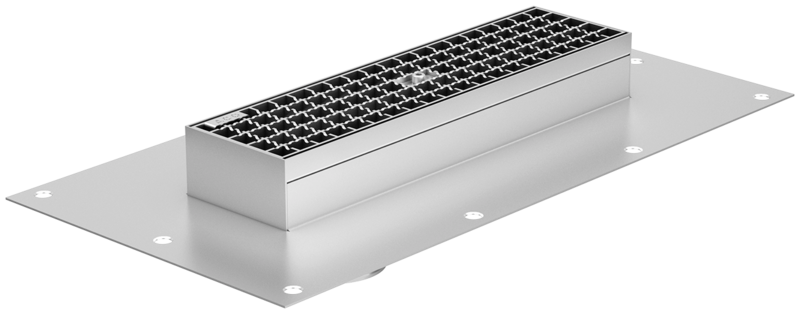

- Stainless steel mesh grating: M125 after DIN EN 1253-2
- Composite grating stainless steel: C250 after DIN EN 1433
- Socket; 110 mm / DN 100 for direct connection to ACO Pipe pipes
Infobox
- Car park channel with socket: 110 mm/DN 100
- For direct connection to ACO Pipe pipes
Type: drainage channel
mounting rail
Suitable for
- ACO box channels
- ACO slot channels
- ACO car park channels
- ACO ShowerDrain Public 110
Description
- Assembly in floating screed: prevention of voltages and cracks in the screed
- Sound decoupling: effective decoupling between channel and soils; mobile and vibrations are better absorbed
- Faster assembly in channel recesses: optimised for accelerated installation in recesses
- Versatile application: also suitable for wall mounting - flexible and adaptable to a wide range of requirements
- Durable materials: can be reused as often as required
