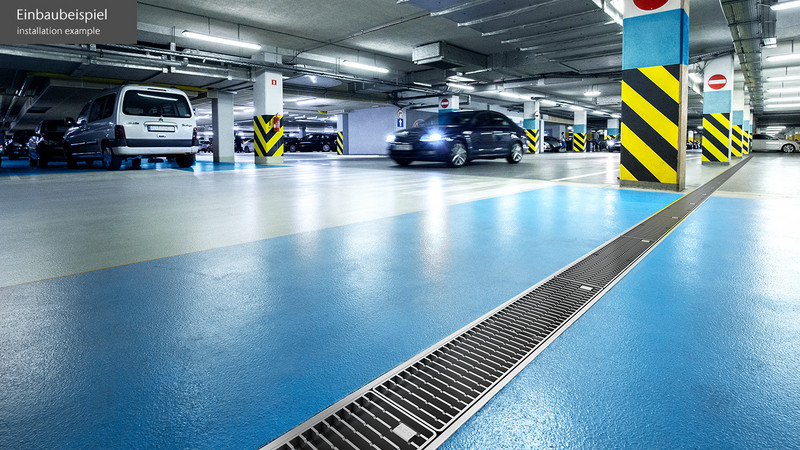

Parking deck drainage channels 156/200

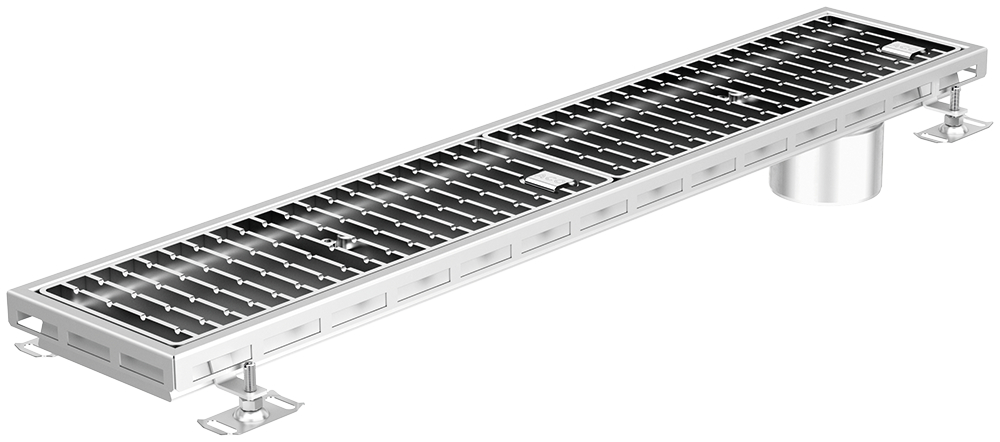

Channel body made of stainless steel
Lengths
- Length up to 6 m
- Over 6 m with flange connection on request
Incl. grating
- Slip-proof
- Screwed in place
Stainless steel slotted grating (car park channel 200)
- Load class: M 125
- Spacing of the longitudinal bars 19.5 mm
Composite grating plastic (car park channel 156)
- Load class C250 after EN1433

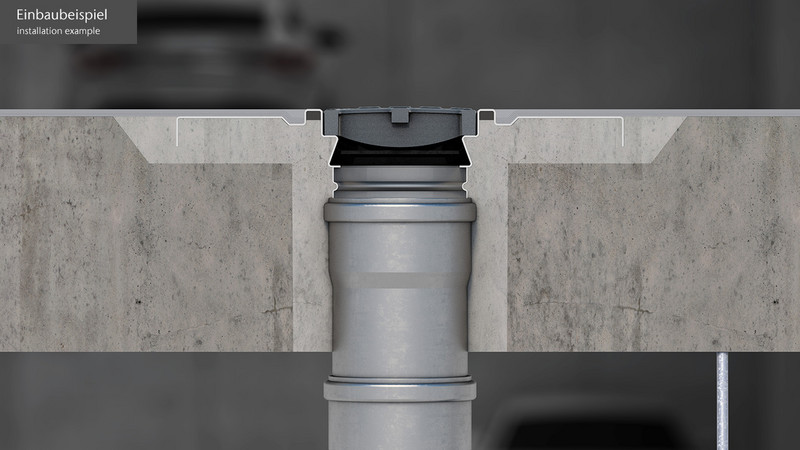

Socket
- With 110 mm socket as drainage channel
- Without socket as evaporation channel
With or without connecting flange (100 mm width according to DIN 18532 for liquid waterproofing materials to be processed)
Channel with levelling feet
Surrounding concrete anchor element

Length	Width	Flange design	Connection ports	Grating	Material	Item number		Downloads	Remember
[mm]	[mm]	Flange design	Connection ports	Grating	Material	Item number		Downloads	Remember
1032	156	With connecting flange	With socket	Mesh grating C 250	1.4301	9815.14.12	17
1032	156	With connecting flange	With socket	Mesh grating C 250	1.4404	9815.14.13	17
1032	156	Without connecting flange	With socket	Mesh grating C 250	1.4301	9815.14.14	17
1032	156	Without connecting flange	With socket	Mesh grating C 250	1.4404	9815.14.15	17
1032	200	With connecting flange	With socket	Ladder grating M 125	1.4301	9820.14.12	17
1032	200	With connecting flange	With socket	Ladder grating M 125	1.4404	9820.14.13	17
1032	200	Without connecting flange	With socket	Ladder grating M 125	1.4301	9820.14.14	17
1032	200	Without connecting flange	With socket	Ladder grating M 125	1.4404	9820.14.15	17

Length	Width	Flange design	Connection ports	Grating	Material	Item number		Downloads	Remember
[mm]	[mm]	Flange design	Connection ports	Grating	Material	Item number		Downloads	Remember
1032	156	With connecting flange	Without socket	Mesh grating C 250	1.4301	9815.16.12	17
1032	156	With connecting flange	Without socket	Mesh grating C 250	1.4404	9815.16.13	17
1032	156	Without connecting flange	Without socket	Mesh grating C 250	1.4301	9815.16.14	17
1032	156	Without connecting flange	Without socket	Mesh grating C 250	1.4404	9815.16.15	17
1032	200	With connecting flange	Without socket	Ladder grating M 125	1.4301	9820.16.12	17
1032	200	With connecting flange	Without socket	Ladder grating M 125	1.4404	9820.16.13	17
1032	200	Without connecting flange	Without socket	Ladder grating M 125	1.4301	9820.16.14	17
1032	200	Without connecting flange	Without socket	Ladder grating M 125	1.4404	9820.16.15	17

Length	Width	Flange design	Connection ports	Grating	Material	Item number
1032 mm	156 mm	With connecting flange	With socket	Mesh grating C 250	1.4301	9815.14.12
1032 mm	156 mm	With connecting flange	With socket	Mesh grating C 250	1.4404	9815.14.13
1032 mm	156 mm	Without connecting flange	With socket	Mesh grating C 250	1.4301	9815.14.14
1032 mm	156 mm	Without connecting flange	With socket	Mesh grating C 250	1.4404	9815.14.15
1032 mm	200 mm	With connecting flange	With socket	Ladder grating M 125	1.4301	9820.14.12
1032 mm	200 mm	With connecting flange	With socket	Ladder grating M 125	1.4404	9820.14.13
1032 mm	200 mm	Without connecting flange	With socket	Ladder grating M 125	1.4301	9820.14.14
1032 mm	200 mm	Without connecting flange	With socket	Ladder grating M 125	1.4404	9820.14.15
1032 mm	156 mm	With connecting flange	Without socket	Mesh grating C 250	1.4301	9815.16.12
1032 mm	156 mm	With connecting flange	Without socket	Mesh grating C 250	1.4404	9815.16.13
1032 mm	156 mm	Without connecting flange	Without socket	Mesh grating C 250	1.4301	9815.16.14
1032 mm	156 mm	Without connecting flange	Without socket	Mesh grating C 250	1.4404	9815.16.15
1032 mm	200 mm	With connecting flange	Without socket	Ladder grating M 125	1.4301	9820.16.12
1032 mm	200 mm	With connecting flange	Without socket	Ladder grating M 125	1.4404	9820.16.13
1032 mm	200 mm	Without connecting flange	Without socket	Ladder grating M 125	1.4301	9820.16.14
1032 mm	200 mm	Without connecting flange	Without socket	Ladder grating M 125	1.4404	9820.16.15

Assembly in floating screed: prevention of voltages and cracks in the screed
Sound decoupling: effective decoupling between channel and soils; mobile and vibrations are better absorbed
Faster assembly in channel recesses: optimised for accelerated installation in recesses
Versatile application: also suitable for wall mounting - flexible and adaptable to a wide range of requirements
Durable materials: can be reused as often as required

Item no.
9500.10.20
