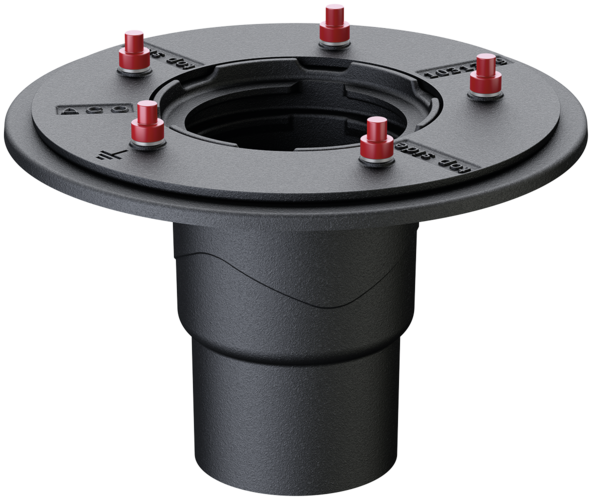

Gully body of parking deck drainage channel 156/200
Product benefits
- Guaranteed fire protection
- No additional fire load
- Fire protection classes: R 30 – R 120
- Permanent resistance
- Maintenance-friendly
- 100% UV resistant
- Flexibility in sealing
- PVC/PE/PP/Bitumen
- Variable installation
- On-site height adjustment by means of cast iron adjustment ring
- Can be utilised as emergency drainage
- Few components, compact design
Fire protection insert
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- Parking deck gullies Passavant made of cast iron
- DN 100
- Socket inclination: 90°
Description
- Note:
- The discharge value is reduced by use
- A Fit-in must be installed for core hole drilling
- aBG: Z-19.53-2439
- abZ: Z-19.17-2430
- Weight: 0.5 kg
- Rabattgruppe: 1
Removable dirt trap
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100
- Socket inclination: 90°/0°
- Parking deck gullies Passavant made of cast iron
- DN 70 – DN 100
- Top part made of cast iron
- DN 70/DN 100
Description
- Made of stainless steel
- Rabattgruppe: 1
Lip seal ring
Suitable for
- Jet flat roof gullies
- DN 50
- Upper part for Spin flat roof gullies
- DN 70
- 1-/2-piece flat roof/terrace Spin gullies DN 70 for ventilation pipe to be added during installation
- SML-pipe DN 100 made from cast iron for grey water downpipes over roof, length as per DIN EN 12056 and DIN 1986‑100
Description
- Diameter: 136 mm
- Weight: 0.1 kg
- Rabattgruppe: 1
