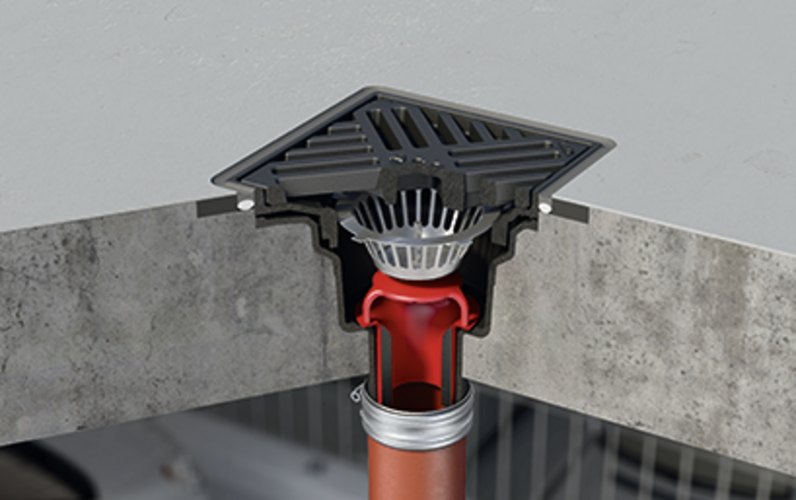

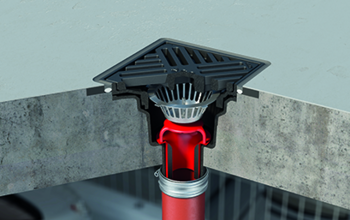

Parking deck gullies Passavant, DN 70 – DN 100

Product benefits

  • Guaranteed fire protection
    • No additional fire load
    • Fire protection classes: R 30 – R 120
  • Permanent resistance
    • Maintenance-friendly
    • 100% UV resistant
  • Flexibility in sealing
    • PVC/PE/PP/Bitumen
  • Variable installation
    • On-site height adjustment by means of cast iron adjustment ring
    • Can be utilised as emergency drainage
  • Few components, compact design

Product information

  • Made of cast iron
    • Building material class A1, non-flammable
    • With paint coat (transport protection)
    • High pressure resistance > 700 N/mm²
  • Tested in accordance with EN 1253-2
  • abZ: Z-19.17-2430 aBG: Z-19.53-2522
  • Load class: M 125

Nominal width: DN 70

Socket inclinationDescriptionGlandRecess (LxB)WeightItem

number		Remember
[mm][kg]
Image90°
  • Removable dirt trap: Stainless steel
  • Without connecting rim
With230 x 2306.95932.00.021
Image90°
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
  • With connecting rim
With380 x 23011.75932.10.021
Image90°
  • Removable dirt trap: Stainless steel
  • Without connecting rim
With230 x 2308.65934.00.021
Image90°
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
  • With connecting rim
With380 x 23014.45934.10.021

Nominal width: DN 100

Socket inclinationDescriptionGlandRecess (LxB)WeightItem

number		Remember
[mm][kg]
Image90°
  • Removable dirt trap: Stainless steel
  • Without connecting rim
With230 x 2307.25933.00.021
Image90°
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
  • With connecting rim
With380 x 23011.95933.10.021
Image90°
  • Removable dirt trap: Stainless steel
  • Without connecting rim
With230 x 2308.95935.00.021
Image90°
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
  • With connecting rim
With380 x 23014.65935.10.021
Socket inclinationClassDescriptionConnecting rimGlandRecess (LxB)WeightItem

number
Image90°M 125
  • Removable dirt trap: Stainless steel
Without connecting rimWith230 x 230 mm6.9 kg5932.00.02
Image90°M 125
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
With connecting rimWith380 x 230 mm11.7 kg5932.10.02
Image90°M 125
  • Removable dirt trap: Stainless steel
Without connecting rimWith230 x 230 mm8.6 kg5934.00.02
Image90°M 125
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
With connecting rimWith380 x 230 mm14.4 kg5934.10.02
Image90°M 125
  • Removable dirt trap: Stainless steel
Without connecting rimWith230 x 230 mm7.2 kg5933.00.02
Image90°M 125
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
With connecting rimWith380 x 230 mm11.9 kg5933.10.02
Image90°M 125
  • Removable dirt trap: Stainless steel
Without connecting rimWith230 x 230 mm8.9 kg5935.00.02
Image90°M 125
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
With connecting rimWith380 x 230 mm14.6 kg5935.10.02

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg
  • Rabattgruppe: 1
Item no.
7000.85.10

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg
  • Rabattgruppe: 1
Item no.
7000.85.20

Fire protection insert

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
  • Parking deck gullies Passavant made of cast iron
    • DN 70
    • Socket inclination: 90°
Description
  • Note:
    • The discharge value is reduced by use
    • A Fit-in must be installed for core hole drilling
    • aBG: Z-19.53-2439
    • abZ: Z-19.17-2430
  • Weight: 0.5 kg
  • Rabattgruppe: 1
Item no.
7033.20.02

Fire protection insert

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
  • Parking deck gullies Passavant made of cast iron
    • DN 100
    • Socket inclination: 90°
Description
  • Note:
    • The discharge value is reduced by use
    • A Fit-in must be installed for core hole drilling
    • aBG: Z-19.53-2439
    • abZ: Z-19.17-2430
  • Weight: 0.5 kg
  • Rabattgruppe: 1
Item no.
7034.20.02

Adjustable height

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Parking deck gullies Passavant made of cast iron
  • Grating with frame
    • 7000.08.02
    • 7000.44.02
Description
  • Made of cast iron, with paint finish
  • Load class: M 125
  • Height-adjustability: 25 – 40 mm
  • Weight: 1.3 kg
  • Rabattgruppe: 1
Item no.
7000.05.02

Adjustable height

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Parking deck gullies Passavant made of cast iron
  • Grating with frame
    • 7000.08.02
    • 7000.44.02
Description
  • Made of cast iron, with paint finish
  • Load class: M 125
  • Height-adjustability: 45 – 60 mm
  • Weight: 1.9 kg
  • Rabattgruppe: 1
Item no.
7000.06.02

Removable dirt trap

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
    • Socket inclination: 90°/0°
  • Parking deck gullies Passavant made of cast iron
    • DN 70 – DN 100
  • Top part made of cast iron
    • DN 70/DN 100
Description
  • Made of stainless steel
  • Rabattgruppe: 1
Item no.
7000.03.02

Nominal width: DN 70

Socket inclinationDescriptionGlandRecess (LxB)WeightItem

number		Remember
[mm][kg]
Image90°
  • Removable dirt trap: Stainless steel
  • Without connecting rim
With230 x 2306.95932.00.021
Image90°
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
  • With connecting rim
With380 x 23011.75932.10.021
Image90°
  • Removable dirt trap: Stainless steel
  • Without connecting rim
With230 x 2308.65934.00.021
Image90°
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
  • With connecting rim
With380 x 23014.45934.10.021

Nominal width: DN 100

Socket inclinationDescriptionGlandRecess (LxB)WeightItem

number		Remember
[mm][kg]
Image90°
  • Removable dirt trap: Stainless steel
  • Without connecting rim
With230 x 2307.25933.00.021
Image90°
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
  • With connecting rim
With380 x 23011.95933.10.021
Image90°
  • Removable dirt trap: Stainless steel
  • Without connecting rim
With230 x 2308.95935.00.021
Image90°
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
  • With connecting rim
With380 x 23014.65935.10.021
Socket inclinationClassDescriptionConnecting rimGlandRecess (LxB)WeightItem

number
Image90°M 125
  • Removable dirt trap: Stainless steel
Without connecting rimWith230 x 230 mm6.9 kg5932.00.02
Image90°M 125
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
With connecting rimWith380 x 230 mm11.7 kg5932.10.02
Image90°M 125
  • Removable dirt trap: Stainless steel
Without connecting rimWith230 x 230 mm8.6 kg5934.00.02
Image90°M 125
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
With connecting rimWith380 x 230 mm14.4 kg5934.10.02
Image90°M 125
  • Removable dirt trap: Stainless steel
Without connecting rimWith230 x 230 mm7.2 kg5933.00.02
Image90°M 125
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
With connecting rimWith380 x 230 mm11.9 kg5933.10.02
Image90°M 125
  • Removable dirt trap: Stainless steel
Without connecting rimWith230 x 230 mm8.9 kg5935.00.02
Image90°M 125
  • Removable dirt trap: stainless steel
  • 100 mm flange for all types of flooring
With connecting rimWith380 x 230 mm14.6 kg5935.10.02

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg
  • Rabattgruppe: 1
Item no.
7000.85.10

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg
  • Rabattgruppe: 1
Item no.
7000.85.20

Fire protection insert

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
  • Parking deck gullies Passavant made of cast iron
    • DN 70
    • Socket inclination: 90°
Description
  • Note:
    • The discharge value is reduced by use
    • A Fit-in must be installed for core hole drilling
    • aBG: Z-19.53-2439
    • abZ: Z-19.17-2430
  • Weight: 0.5 kg
  • Rabattgruppe: 1
Item no.
7033.20.02

Fire protection insert

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
  • Parking deck gullies Passavant made of cast iron
    • DN 100
    • Socket inclination: 90°
Description
  • Note:
    • The discharge value is reduced by use
    • A Fit-in must be installed for core hole drilling
    • aBG: Z-19.53-2439
    • abZ: Z-19.17-2430
  • Weight: 0.5 kg
  • Rabattgruppe: 1
Item no.
7034.20.02

Adjustable height

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Parking deck gullies Passavant made of cast iron
  • Grating with frame
    • 7000.08.02
    • 7000.44.02
Description
  • Made of cast iron, with paint finish
  • Load class: M 125
  • Height-adjustability: 25 – 40 mm
  • Weight: 1.3 kg
  • Rabattgruppe: 1
Item no.
7000.05.02

Adjustable height

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Parking deck gullies Passavant made of cast iron
  • Grating with frame
    • 7000.08.02
    • 7000.44.02
Description
  • Made of cast iron, with paint finish
  • Load class: M 125
  • Height-adjustability: 45 – 60 mm
  • Weight: 1.9 kg
  • Rabattgruppe: 1
Item no.
7000.06.02

Removable dirt trap

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
    • Socket inclination: 90°/0°
  • Parking deck gullies Passavant made of cast iron
    • DN 70 – DN 100
  • Top part made of cast iron
    • DN 70/DN 100
Description
  • Made of stainless steel
  • Rabattgruppe: 1
Item no.
7000.03.02
