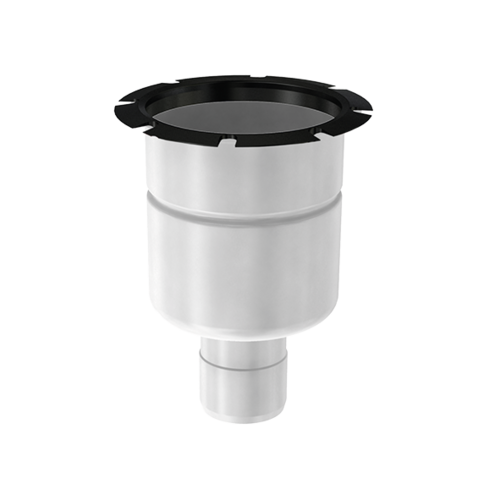

Telescopic – vertical outlet
Product benefits
- Fully inspectable and cleanable
- Fully removable and easily cleanable stainless steel foul air trap (FAT)
- Full drainability
- Internal radii equal or larger than 3 mm
- Fully welded hygienic joints
- Steel thickness min. 1,5 mm
- Fully pickled and passivated
Product information
- Certified according to EN 1253-1
- Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Suitable for all floor types including vinyl flooring
- Location flange or integrated membrane flange for either adhesive bonding or mechanical clamp
- Telescopic friction ring included
- Certified fire protective solution available for classes EI 90 – EI 180 (EN 13 501-2)

Gully tops for ACO hygienic gully 157 - telescopic

Raising pieces for ACO hygienic gully 157 - telescopic

ACO weldless ladder grating

ACO frameless ladder grating

ACO frameless ladder grating - Round

ACO hygienic ladder grating

ACO hygienic ladder grating - Round

ACO hygienic slot cover

ACO hygienic slot cover - Round

ACO perforated grating

ACO perforated grating - Round

ACO mesh grating

ACO quadrato grating

ACO heelsafe grating

ACO multi-slot 5 grating

ACO odour proof gully cover

ACO tile grating

ACO ladder grating

ACO perforated grating
ACO tundish portable
ACO tundish portable
Silt basket
Suitable for
- ACO gully 157 - vertical
- Fixed height or elescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,6 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 157 - vertical
- Fixed height or elescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,6 litre capacity
- Material grade 1.4404 (316L)
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4404 (316L)
ACO fire resistant kit for gully 157/DN 75
ACO fire resistant kit for gully 157/DN 110
Odour trap
Odour trap
Standard foul air trap support
