Complete gullies Easyflow, DN 70/DN 100 – socket inclination 1,5°
Product benefits
- Retrofit clamping flange
- Optimum cleaning option
- Adjustable height thin bed seal
Product information
- Gully bodies DN 70/DN 100
- Made of plastic (Polypropylen)
- Tested to DIN EN 1253-1
- With bracket/connecting rim
- With removable foul air trap
- Water trap depth: 50 mm
- With integrated seal to seal the flow gap between gully body and top section
- With plastic top section
- Frame dimensions: 150 x 150 mm
- Slot grating made from stainless steel
- Load class: K 3
- Slot width: 8 mm
- With protective cover added during installation
Infobox
Note: Top sections with slot widths ≤ 8 mm are suitable for barefoot areas.
Extension
Suitable for
- All Easyflow floor drains
- Top sections
- Socket diameter 125 mm
- Walk-in with gully sockets
Description
- Made of plastic
- Suitable for taking plastic top sections and clamping flanges
- With lip seal
- For deeper installation of floor gullies
- Weight: 0.3 kg
- Rabattgruppe: 2

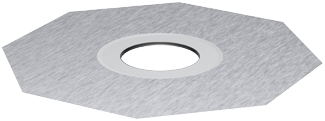

Thin-bed flange
Suitable for
- All Easyflow top sections
- 2500.77.11, 2700.77.11, 2700.77.12
- 5141.22.00, 5141.23.00, 5141.24.00, 5141.25.00, 5141.38.00, 5141.43.00, 5141.46.00
- Top section with socket diameter 125 mm
Description
- Plastic flange with sprayed-on fleece
- Suitable for taking liquid sealants added on-site using thin bed process
- Weight: 0.2 kg
- Rabattgruppe: 2
Thin-bed flange
Suitable for
- All Easyflow top sections
- 2500.77.11.
- 2700.77.11
- 2700.77.12
- Top sections with socket diameter: 125 mm
Description
- Flange made of plastic with sprayed on non-woven material
- Suitable for holding liquid seals applied on site using the thin bed method
- Weight: 0.2 kg
Compressed seal flange
Suitable for
- All Easyflow floor drains
Description
- Plastic flange
- Loose flange made from stainless steel
- Suitable for taking sealants foils added on-site for sealing layers for point drainage
- Weight: 0.6 kg
- Rabattgruppe: 2

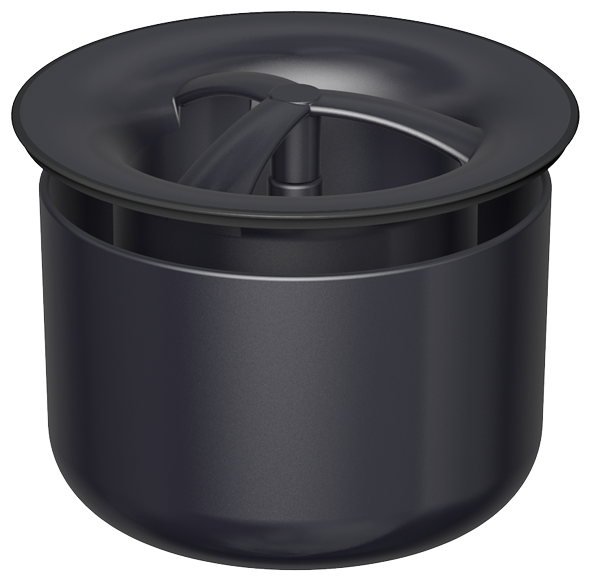

Odour stop
Suitable for
- Floor gullies, Easyflow
- Standard
- DN 70/DN 100
Description
- Prevents unpleasant odours from the sewage system, irrespective of the water seal height
- Weight: 0.1 kg
- Rabattgruppe: 2
